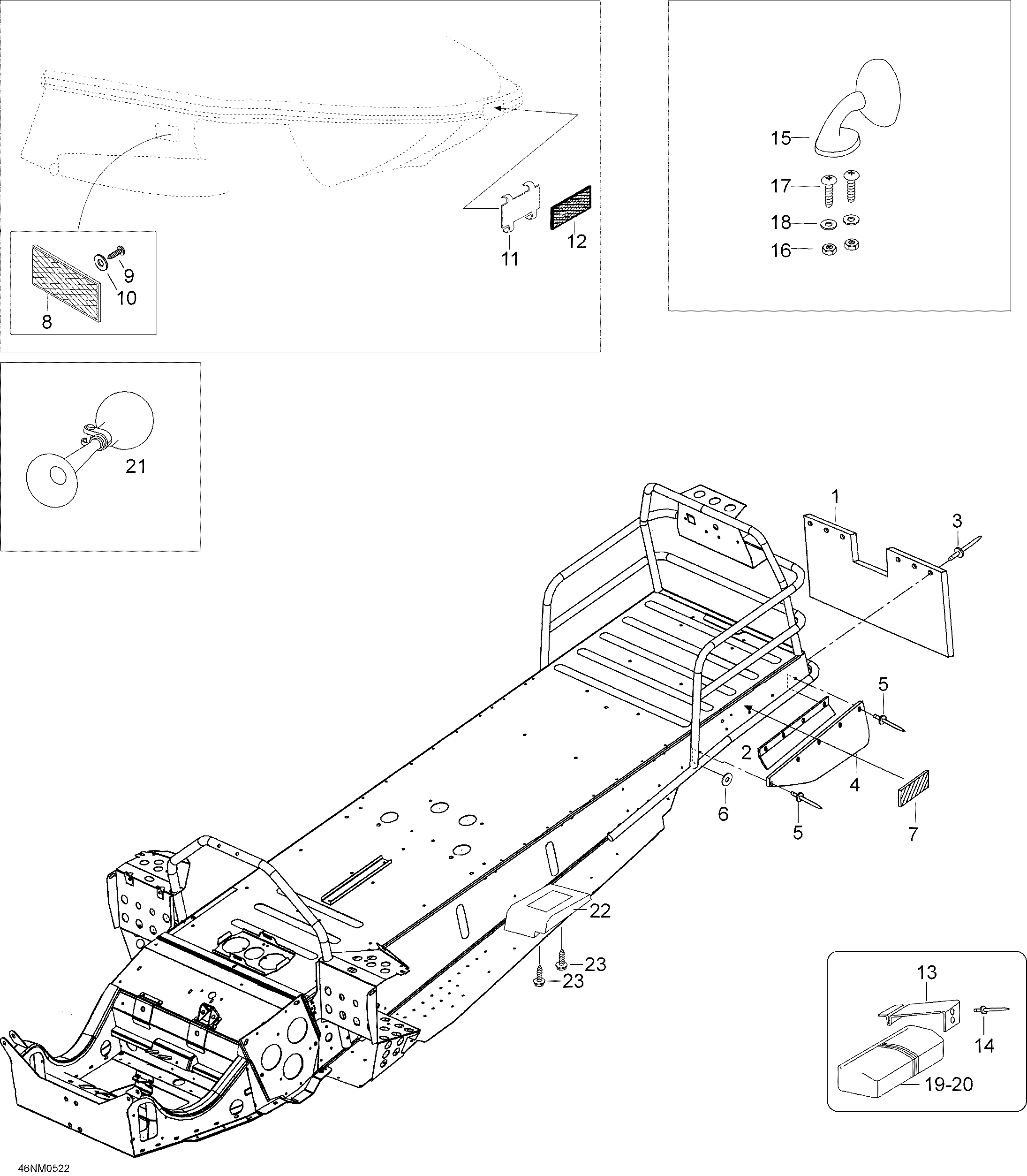

09- Utilities для BRP Lynx ST550 - 2005
-
№АртикулНазвание
-
1535437 Snow guardSnow guard
-
25340532 SupportSupport
-
336036 RivetRivet
-
45142828 Side snowguardSide snowguard
-
536097 RivetRivet
-
620037 Washer A4,3Washer A4,3
-
721121 Reflector, yellowReflector, yellow
-
8414510200 Reflector, AmberReflector, Amber
-
940070 Screw M5 x 10Screw M5 x 10
-
1020018 Serrated lock washer A5,3Serrated lock washer A5,3
-
115440839 BracketBracket
-
1221060 Reflector, BrightReflector, Bright
-
135344443 Spring plateSpring plate
-
1436489 RivetRivet
-
15414971910 R.H. MirrorR.H. Mirror
-
15414972010 L.H. MirrorL.H. Mirror
-
1633008 Elastic stop nut M4Elastic stop nut M4
-
1740167 Screw M4 x 16Screw M4 x 16
-
1820001 Washer A4,3Washer A4,3
-
19605350523 Tool set. Includes 19 to 20Tool set. Includes 19 to 20
-
20572036310 Tool boxTool box
-
2121003 BollBoll
-
22414975300 R.H. FootrestR.H. Footrest
-
22414975400 L.H. FootrestL.H. Footrest
-
2340870 Self tapping screwSelf tapping screw
