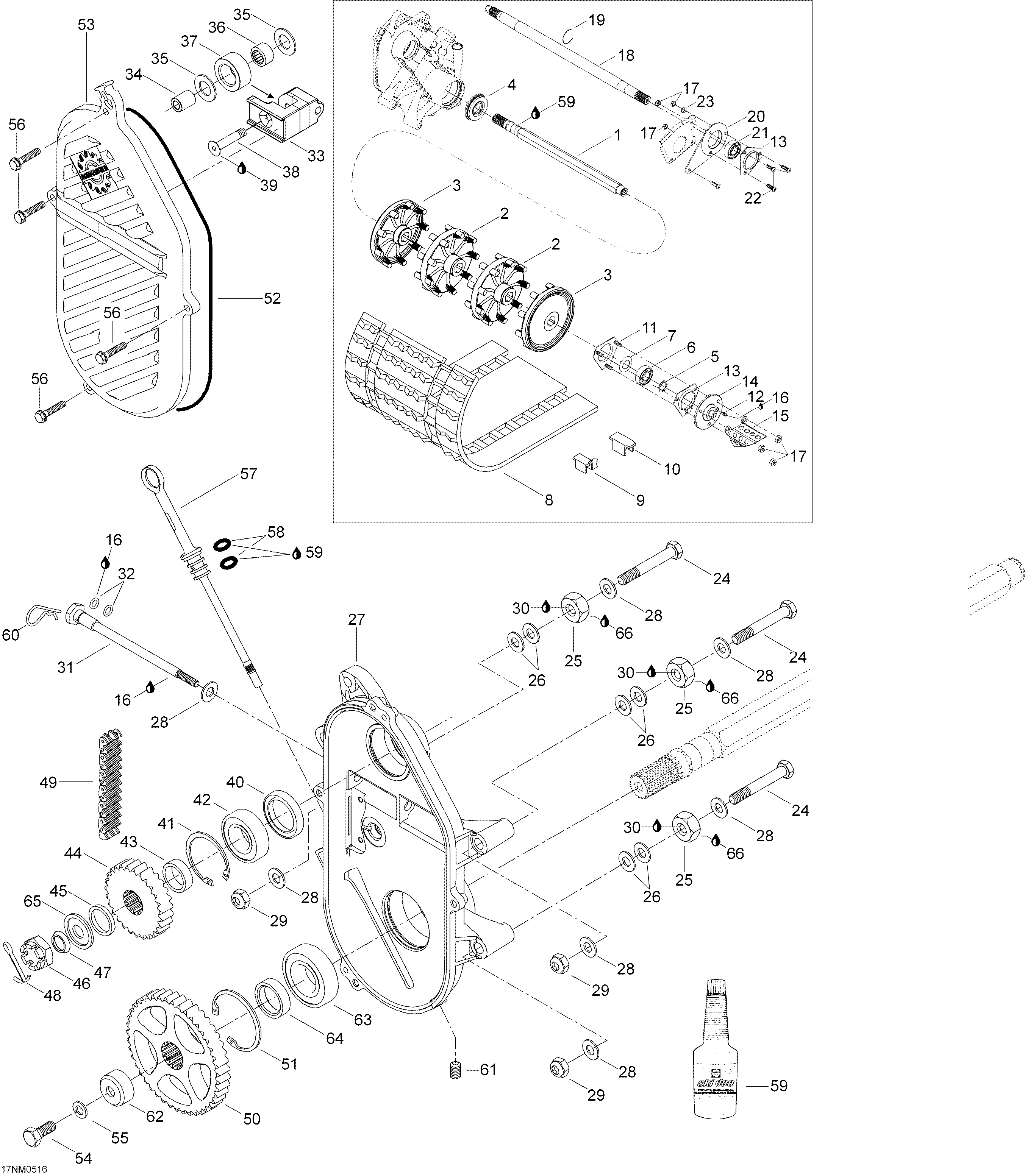

05- Drive System, 400, 400E для BRP Lynx Safari 400E - 2005

  • №
    Артикул
    Название
  • 1
    501027400 Drive Axle
    Drive Axle
  • 2
    504151781 Sprocket (9 Teeth)
    Sprocket (9 Teeth)
  • 4
    504151918 Oil Seal Ass'y
    Oil Seal Ass'y
  • 5
    31001 Circlip
    Circlip
  • 6
    504152009 Ball Bearing
    Ball Bearing
  • 7
    501017400 Bearing Protector
    Bearing Protector
  • 8
    504152489 Track Ass'y, 15''x136''x 0.88 (136''x0.8). Includes 8 to 10, Safari 400,_Safari 400 E
    Track Ass'y, 15''x136''x 0.88 (136''x0.8). Includes 8 to 10, Safari 400,_Safari 400 E
  • 8
    13069 Track ass'y(25)
    Track ass'y(25)
  • 9
    504152410 Guide. Safari 400_Safari 400 E
    Guide. Safari 400_Safari 400 E
  • 11
    504151860 Bearing Housing
    Bearing Housing
  • 12
    34011 Grease fitting
    Grease fitting
  • 13
    501025000 Flange
    Flange
  • 14
    504151836 Flange (Speedo Drive Insert)
    Flange (Speedo Drive Insert)
  • 15
    517290100 Cable Protector
    Cable Protector
  • 16
    293550033 Suspension Grease, 10 X 400 G
    Suspension Grease, 10 X 400 G
  • 17
    33011 Elastic stop nut M8
    Elastic stop nut M8
  • 18
    504151858 Countershaft
    Countershaft
  • 19
    371910000 Circlip
    Circlip
  • 20
    080044200 Casting Spacer
    Casting Spacer
  • 21
    504152008 Ball Bearing
    Ball Bearing
  • 22
    40344 Socket head screw M8 x 25
    Socket head screw M8 x 25
  • 23
    20004 Washer A8,4
    Washer A8,4
  • 24
    40190 Hex, screw M10 x 80
    Hex, screw M10 x 80
  • 25
    504083800 Spacer
    Spacer
  • 26
    504073700 Washer
    Washer
  • 27
    504152064 Chaincase
    Chaincase
  • 28
    20005 Washer A10,5
    Washer A10,5
  • 29
    33082 Elastic stop nut M10
    Elastic stop nut M10
  • 30
    293800060 Loctite 243, 250 ml
    Loctite 243, 250 ml
  • 31
    732601314 Adjustment Screw
    Adjustment Screw
  • 32
    414484400 O-Ring
    O-Ring
  • 33
    504081000 Machined Tensioner
    Machined Tensioner
  • 34
    504080200 Spacer
    Spacer
  • 35
    504080300 Washer
    Washer
  • 36
    405403000 Needle Bearing
    Needle Bearing
  • 37
    414531300 Roller
    Roller
  • 38
    732601144 Screw
    Screw
  • 39
    293800005 Loctite 271, 10 ml
    Loctite 271, 10 ml
  • 40
    504151927 Seal
    Seal
  • 41
    371901700 Circlip, Interior
    Circlip, Interior
  • 42
    504152006 Ball Bearing
    Ball Bearing
  • 43
    504147200 Shim
    Shim
  • 44
    504071800 Sprocket 17 Th. Safari 400_Safari 400 E
    Sprocket 17 Th. Safari 400_Safari 400 E
  • 45
    504152049 Spacer
    Spacer
  • 46
    232210414 Hex Castellated Nut M16
    Hex Castellated Nut M16
  • 47
    417000900 Spring Washer
    Spring Washer
  • 48
    41003 Pin
    Pin
  • 49
    504151883 ''Driving Chain (72 Links. Safari 400_Safari 400 E
    ''Driving Chain (72 Links. Safari 400_Safari 400 E
  • 50
    504148600 43 Teeth Sprocket (Large). Safari 400_Safari 400 E
    43 Teeth Sprocket (Large). Safari 400_Safari 400 E
  • 51
    415064300 Circlip, Interior
    Circlip, Interior
  • 52
    415046400 O-Ring
    O-Ring
  • 53
    504152027 Chaincase Cover
    Chaincase Cover
  • 54
    40040 Hex. screw M10 x 25
    Hex. screw M10 x 25
  • 55
    20068 Lock washer
    Lock washer
  • 56
    40340 Socket head screw M6 x 30
    Socket head screw M6 x 30
  • 57
    504151703 Filler Cap Ass’Y
    Filler Cap Ass’Y
  • 58
    414969400 O-Ring
    O-Ring
  • 59
    413803300 Synthetic Chaincase Oil, 12 X 355 ml
    Synthetic Chaincase Oil, 12 X 355 ml
  • 60
    414575600 Hair Pin
    Hair Pin
  • 61
    504151921 Plug 1/8”-27
    Plug 1/8”-27
  • 62
    501022400 Cap
    Cap
  • 63
    504152005 Ball Bearing
    Ball Bearing
  • 64
    501021800 Sleeve
    Sleeve
  • 66
    293800070 Loctite 767, 8 oz
    Loctite 767, 8 oz
