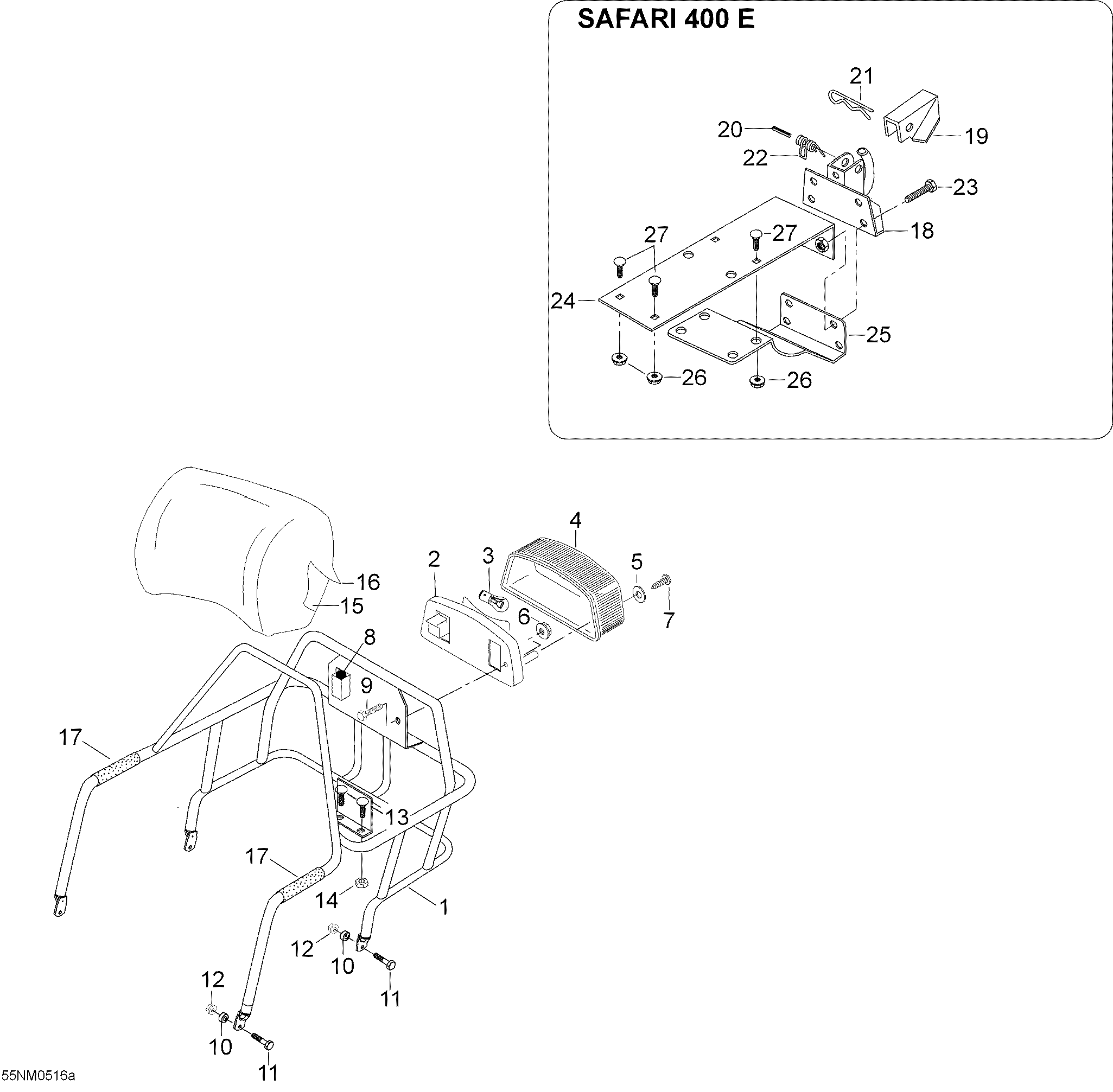

09- Rack, 400 для BRP Lynx Safari 400 - 2005

  • №
    Артикул
    Название
  • 1
    605252065 Tail rack
    Tail rack
  • -
    5341214 Taillamp assy. Includes 1 to 6
    Taillamp assy. Includes 1 to 6
  • 2
    510004061 Light Housing
    Light Housing
  • 3
    410504000 Bulb (Tail Lamp)
    Bulb (Tail Lamp)
  • 4
    414513700 Lens
    Lens
  • 5
    414516400 Washer
    Washer
  • 6
    33200 Elastic flanged nut M6
    Elastic flanged nut M6
  • 7
    414516300 Screw
    Screw
  • 8
    5345713 Cover
    Cover
  • 9
    40032 Hex. screw M6 x 30
    Hex. screw M6 x 30
  • 10
    548491 Sleeve
    Sleeve
  • 11
    40387 Screw M8 x 30, Wulock
    Screw M8 x 30, Wulock
  • 12
    33201 Elastic flanged nut M8
    Elastic flanged nut M8
  • 13
    40866 Locking screw M6 x 20
    Locking screw M6 x 20
  • 14
    33200 Elastic flanged nut M6
    Elastic flanged nut M6
  • 15
    539399 Foam, Backrest
    Foam, Backrest
  • 16
    5340917 Cover
    Cover
  • 17
    415050300 RH Grip (250 mm)
    RH Grip (250 mm)
