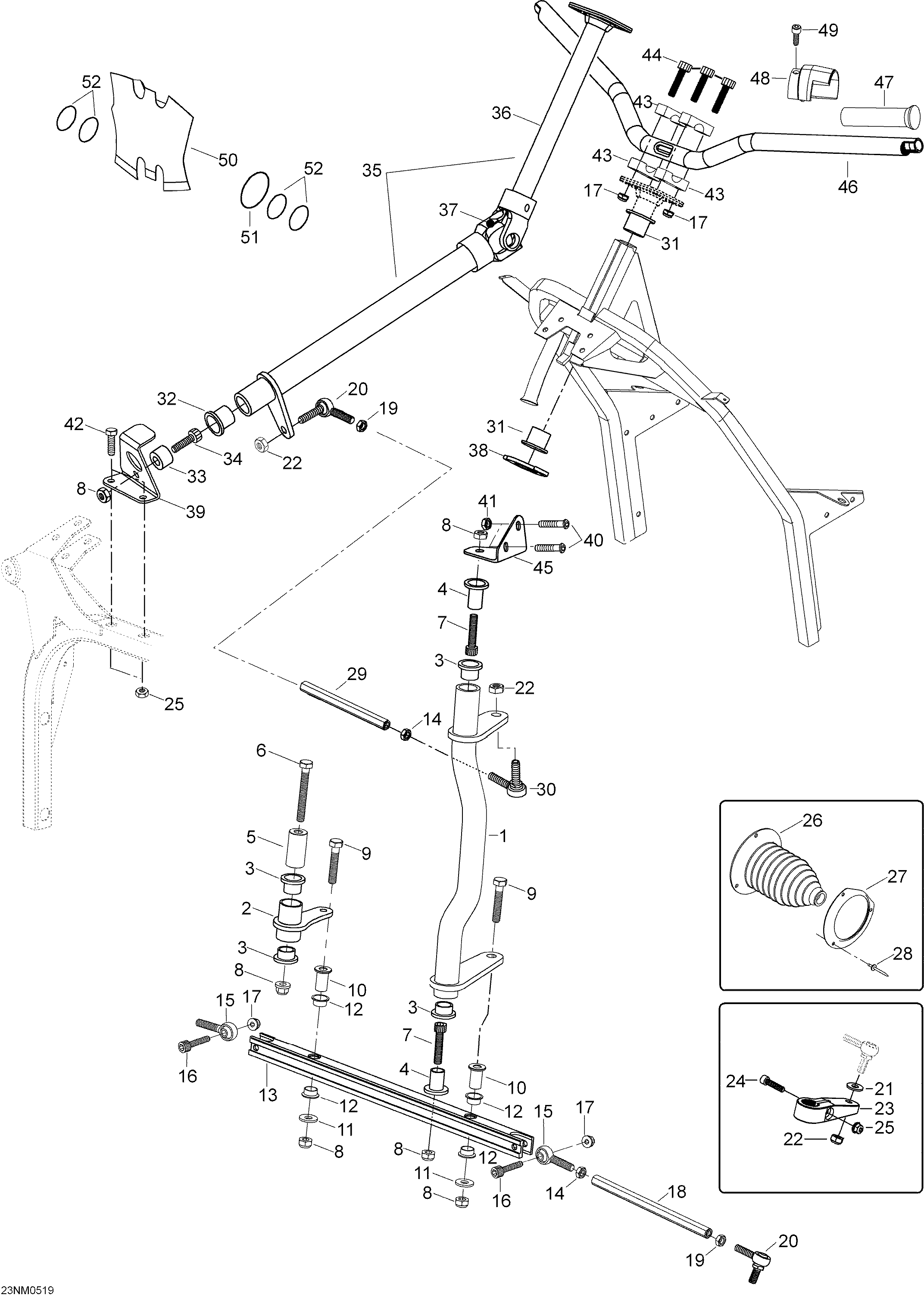

07- Steering System для BRP Lynx Rave 800 - 2005

  • №
    Артикул
    Название
  • 1
    605349851 L.H. swivel arm
    L.H. swivel arm
  • 2
    605349870 R.H. swivel arm
    R.H. swivel arm
  • 3
    31031 Cushion
    Cushion
  • 4
    605449869 Bushing
    Bushing
  • 5
    605450121 Sleeve
    Sleeve
  • 6
    40021 Hex. screw M10 x 70
    Hex. screw M10 x 70
  • 7
    40317 Socket head screw M10 x 45
    Socket head screw M10 x 45
  • 8
    33012 Elastic stop nut M10
    Elastic stop nut M10
  • 9
    40018 Hex. screw M10 x 55
    Hex. screw M10 x 55
  • 10
    506147300 Cushion
    Cushion
  • 11
    20028 Washer 10.5mm
    Washer 10.5mm
  • 12
    506150200 Sleeve
    Sleeve
  • 13
    605349868 Bar-swivel
    Bar-swivel
  • 14
    732610011 L.H. jam nut M10
    L.H. jam nut M10
  • 15
    506151496 R.H. jam nut M10
    R.H. jam nut M10
  • 16
    40395 Socket head screw M8 x 35
    Socket head screw M8 x 35
  • 17
    33011 Elastic stop nut M8
    Elastic stop nut M8
  • 18
    605349865 Tie-rod
    Tie-rod
  • 19
    732610010 R.H. jam nut M10
    R.H. jam nut M10
  • 20
    506151491 R.H. Joint ball
    R.H. Joint ball
  • 21
    20105 Washer, hardened 10mm
    Washer, hardened 10mm
  • 22
    33023 Elastic stop nut M10
    Elastic stop nut M10
  • 23
    506144800 R.H. steering arm
    R.H. steering arm
  • 23
    506144900 L.H. steering arm
    L.H. steering arm
  • 24
    40843 Socket head screw M8 x 35
    Socket head screw M8 x 35
  • 25
    33201 Elastic flanged nut M8
    Elastic flanged nut M8
  • 26
    605252101 Tie-rod cap
    Tie-rod cap
  • 27
    605351469 Retainer ring
    Retainer ring
  • 28
    36009 Rivet
    Rivet
  • 29
    605351468 Tie-rod
    Tie-rod
  • 30
    506151495 L.H. Joint ball
    L.H. Joint ball
  • 31
    31028 Cushion
    Cushion
  • 32
    505070003 Sleeve
    Sleeve
  • 33
    605451433 Sleeve
    Sleeve
  • 34
    40352 Socket head screw M10 x 40
    Socket head screw M10 x 40
  • 35
    605252353 Main tube Ass'y. Includes 35 to 37
    Main tube Ass'y. Includes 35 to 37
  • 36
    605351996 Main tube, upper part
    Main tube, upper part
  • 37
    605352441 Cross kit
    Cross kit
  • 38
    605351460 limiter
    limiter
  • 39
    605352600 Bracket
    Bracket
  • 40
    40392 Socket head screw M8 x 45
    Socket head screw M8 x 45
  • 41
    33201 Elastic flanged nut M8
    Elastic flanged nut M8
  • 42
    40008 Hex. screw M8 x 45
    Hex. screw M8 x 45
  • 43
    548448 Steering support
    Steering support
  • 44
    40286 Socket head screw M8 x 45
    Socket head screw M8 x 45
  • 45
    605451772 Support bracket
    Support bracket
  • 46
    605250870 Handle bar
    Handle bar
  • 47
    5340464 Grip
    Grip
  • 48
    506151566 Adapter
    Adapter
  • 49
    40390 Screw M8 x 20
    Screw M8 x 20
  • 50
    605252388 Cap
    Cap
  • 51
    12402 O-ring
    O-ring
  • 52
    12406 O-ring
    O-ring
