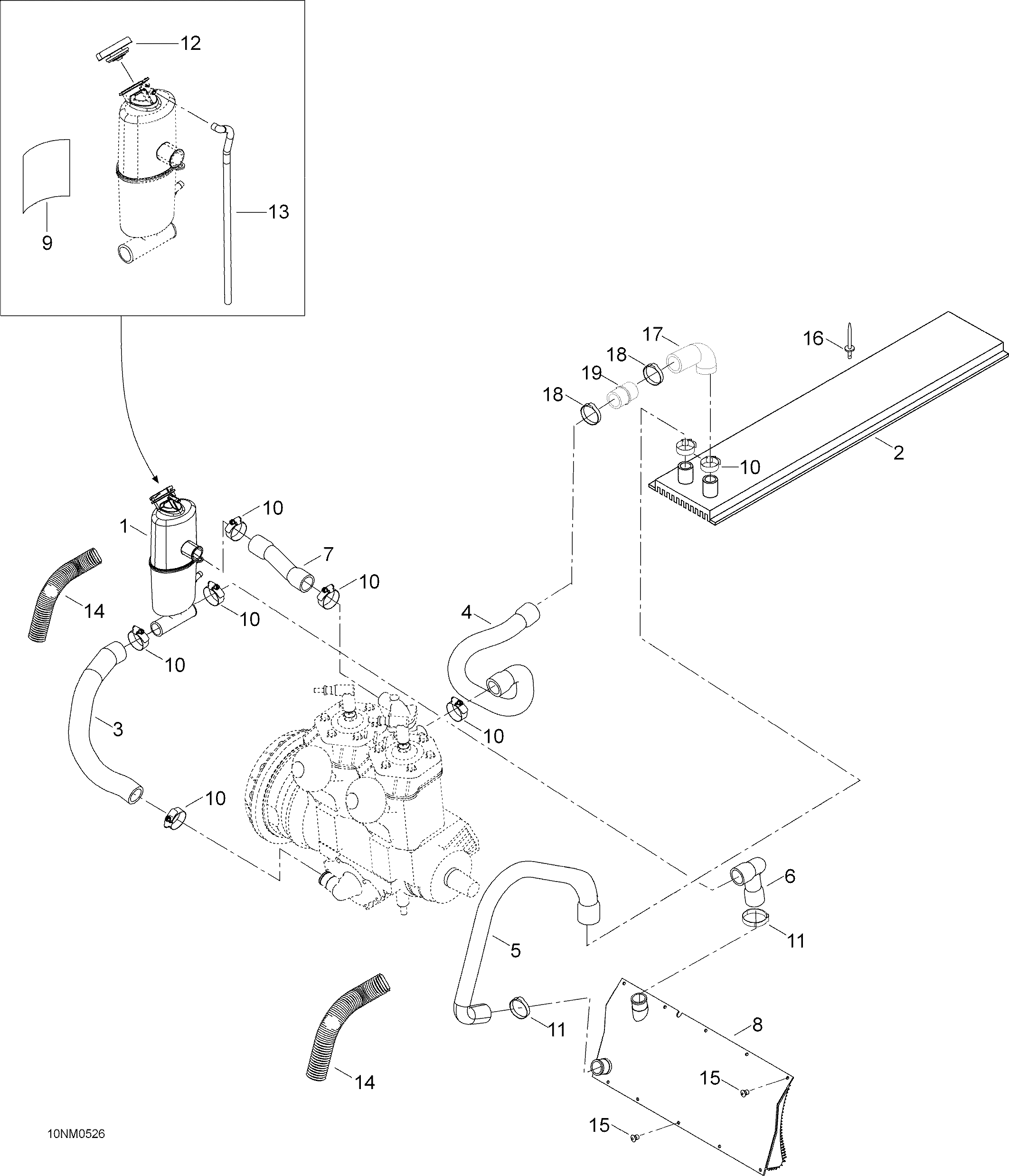

01- Cooling System для BRP Lynx Rave 440 - 2005
-
№АртикулНазвание
-
1509000325 Coolant tankCoolant tank
-
25246130 RadiatorRadiator
-
3509000135 HoseHose
-
4509000220 HoseHose
-
5509000335 HoseHose
-
6509000266 HoseHose
-
7509000196 HoseHose
-
8518323903 Radiator, frontRadiator, front
-
9509000190 Reflective sheetReflective sheet
-
10408800400 ClampClamp
-
11509000181 ClampClamp
-
12509000187 Pressure capPressure cap
-
1339038 HoseHose
-
1428036 TubingTubing
-
1536489 RivetRivet
-
1636108 RivetRivet
-
17605353061 HoseHose
-
18509000045 ClampClamp
-
19509000224 FittingFitting
