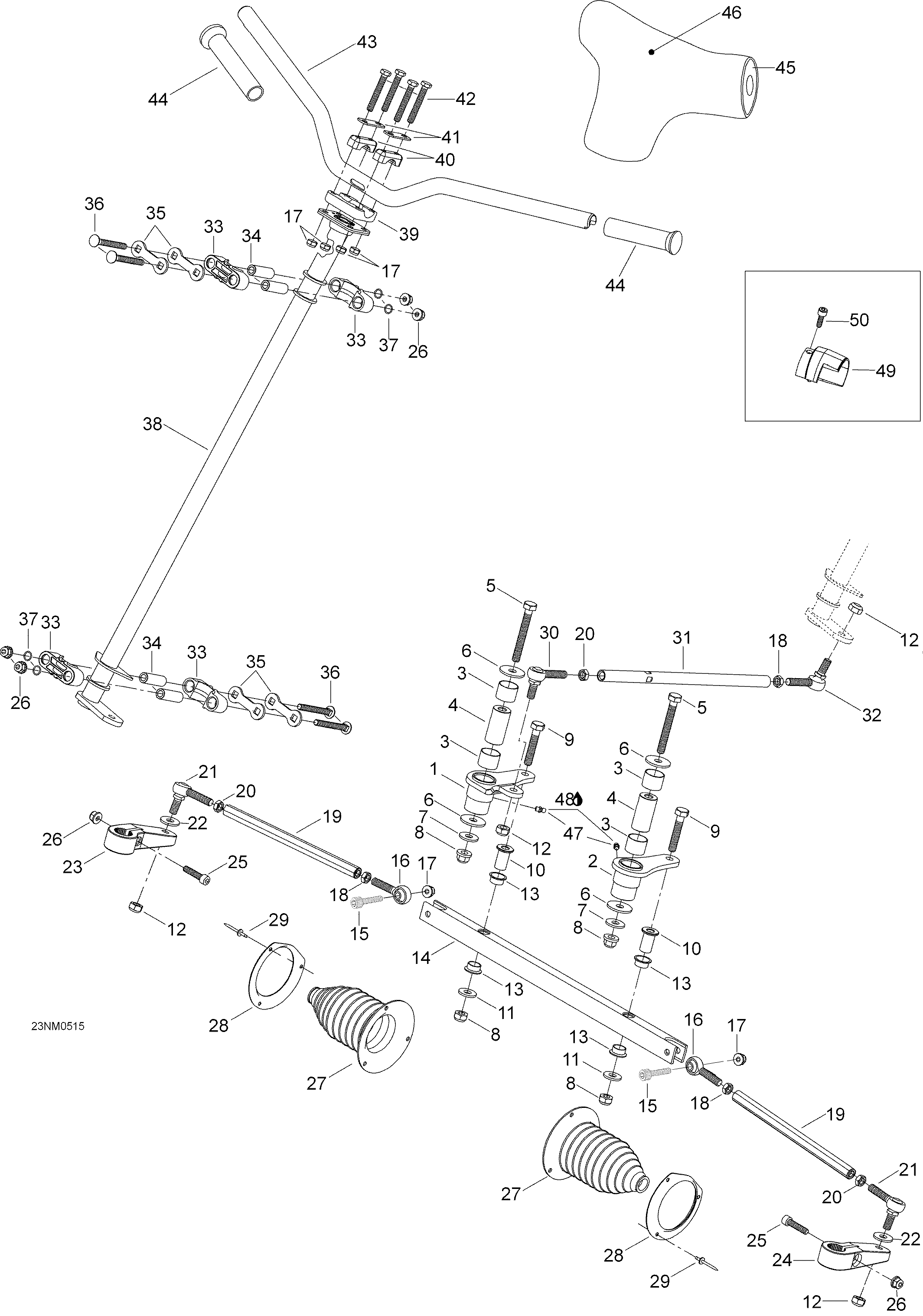

07- Steering System для BRP Lynx Ranger 550 - 2005

‹-+›
  • №
    Артикул
    Название
  • 1
    506151506 R.H. swivel arm
    R.H. swivel arm
  • 2
    506151623 L.H. swivel arm
    L.H. swivel arm
  • 3
    506149900 Swivel bushing
    Swivel bushing
  • 4
    506150100 Swivel-pivot
    Swivel-pivot
  • 5
    40229 Hex. screw M10 x 80
    Hex. screw M10 x 80
  • 6
    20080 Washer
    Washer
  • 7
    20101 Washer, hardened M10
    Washer, hardened M10
  • 8
    33012 Elastic stop nut M10
    Elastic stop nut M10
  • 9
    40018 Hex. screw M10 x 55
    Hex. screw M10 x 55
  • 10
    506147300 Cushion
    Cushion
  • 11
    20028 Washer
    Washer
  • 12
    33023 Nut elastic M10
    Nut elastic M10
  • 13
    506150200 Swivel-bushing
    Swivel-bushing
  • 14
    605348756 Bar-swivel
    Bar-swivel
  • 15
    40395 Allen screw M8 x 35
    Allen screw M8 x 35
  • 16
    506151496 Joint ball L.H.
    Joint ball L.H.
  • 17
    33011 Elastic stop nut M8
    Elastic stop nut M8
  • 18
    732610011 L.H. jam nut M10
    L.H. jam nut M10
  • 19
    605448812 Tie Rod. Ranger 550
    Tie Rod. Ranger 550
  • 19
    5346200 Tie Rod. Ranger 600
    Tie Rod. Ranger 600
  • 20
    732610010 R.H. jam nut M10
    R.H. jam nut M10
  • 21
    506151491 R.H. Joint ball
    R.H. Joint ball
  • 22
    20105 Washer hardened M10. Ranger 550
    Washer hardened M10. Ranger 550
  • 23
    506145800 R.H. steering arm
    R.H. steering arm
  • 24
    506145900 L.H. steering arm
    L.H. steering arm
  • 25
    40843 Socket head screw M8 x 35
    Socket head screw M8 x 35
  • 26
    33201 Elastic flanged nut M8
    Elastic flanged nut M8
  • 27
    570070500 Tie-rod cap
    Tie-rod cap
  • 28
    5347006 Retainer ring
    Retainer ring
  • 29
    36009 Rivet
    Rivet
  • 30
    506151492 Joint ball, R.H.
    Joint ball, R.H.
  • 31
    506150300 Inside tie-rod
    Inside tie-rod
  • 32
    506151495 Joint ball L.H.
    Joint ball L.H.
  • 33
    506150400 Half housing
    Half housing
  • 34
    506150500 Housing bushing
    Housing bushing
  • 35
    506150600 Stopper plate
    Stopper plate
  • 36
    207787044 Carriage bolt M8 x 70
    Carriage bolt M8 x 70
  • 37
    506151140 O-ring
    O-ring
  • 38
    506147100 Main tube
    Main tube
  • 39
    277000142 Steering clamp
    Steering clamp
  • 40
    506151622 Steering clamp
    Steering clamp
  • 41
    506151196 Reinforcement
    Reinforcement
  • 42
    40010 Hex. screw M8 x 55
    Hex. screw M8 x 55
  • 43
    605249302 Handle bar
    Handle bar
  • 44
    5340464 Grip
    Grip
  • 45
    506151262 Foam
    Foam
  • 46
    5248010 Cover
    Cover
  • 47
    34011 Grease fitting
    Grease fitting
  • 48
    413711500 Synthetic grease
    Synthetic grease
  • 49
    506151566 Adapter. Ranger 600
    Adapter. Ranger 600
  • 50
    40390 Screw M8 x 20. Ranger 600
    Screw M8 x 20. Ranger 600
