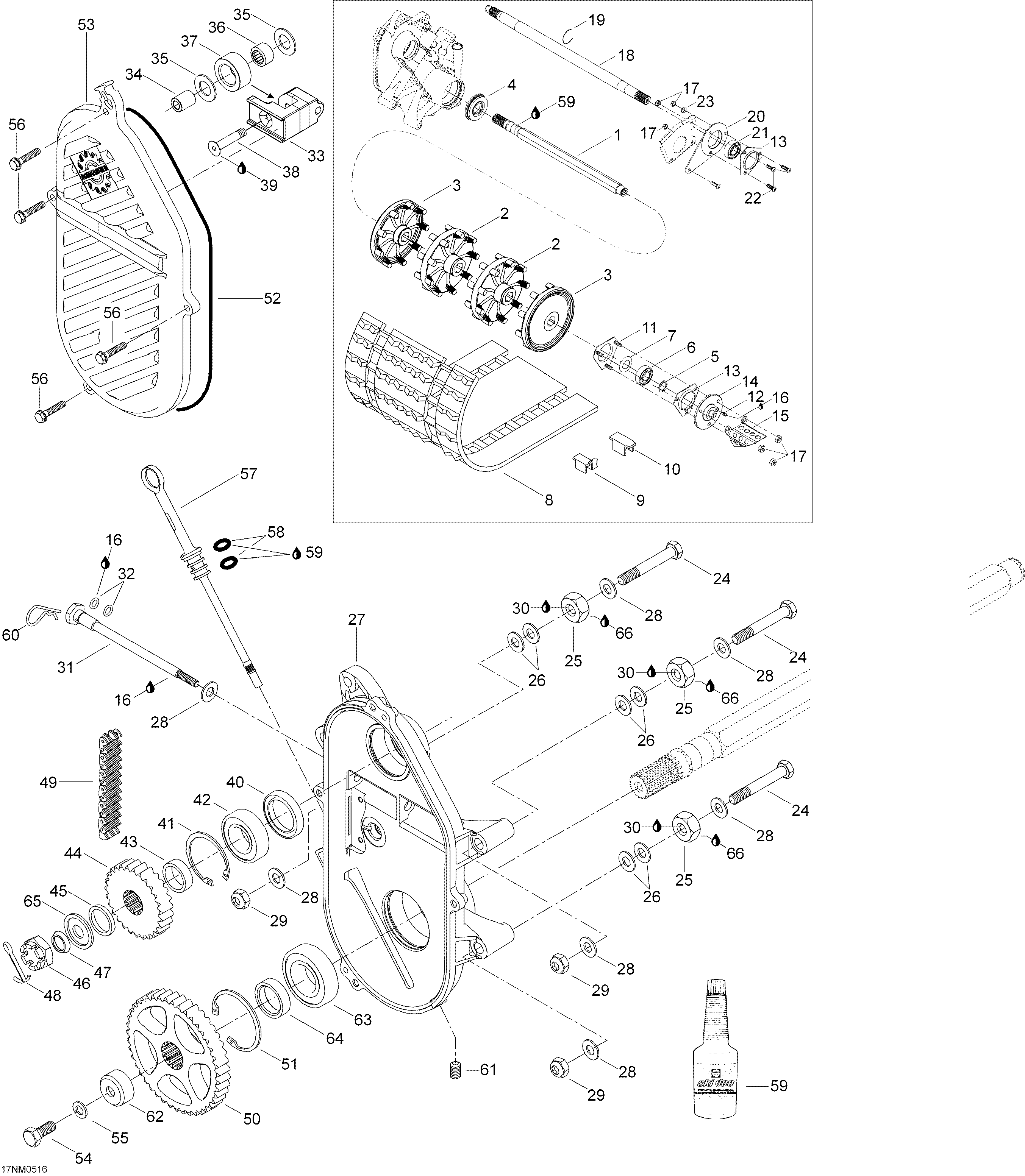

05- Drive System, 550 для BRP Lynx Explorer 550 - 2005
-
№АртикулНазвание
-
1501027400 Drive AxleDrive Axle
-
2504151781 Sprocket (9 Teeth)Sprocket (9 Teeth)
-
3504151782 Half Sprocket (9 Teeth). Explorer 550Half Sprocket (9 Teeth). Explorer 550
-
4504151918 Oil Seal Ass'yOil Seal Ass'y
-
531001 CirclipCirclip
-
6504152009 Ball BearingBall Bearing
-
7501017400 Bearing ProtectorBearing Protector
-
813069 Track ass'y(25)Track ass'y(25)
-
95318330 Guide cleat. Explorer 550Guide cleat. Explorer 550
-
105318329 Cleat. Explorer 550Cleat. Explorer 550
-
11504151860 Bearing HousingBearing Housing
-
1234011 Grease fittingGrease fitting
-
13501025000 FlangeFlange
-
14504151836 Flange (Speedo Drive Insert)Flange (Speedo Drive Insert)
-
15517290100 Cable ProtectorCable Protector
-
16293550033 Suspension Grease, 10 X 400 GSuspension Grease, 10 X 400 G
-
1733011 Elastic stop nut M8Elastic stop nut M8
-
18504151858 CountershaftCountershaft
-
19371910000 CirclipCirclip
-
20080044200 Casting SpacerCasting Spacer
-
21504152008 Ball BearingBall Bearing
-
2240344 Socket head screw M8 x 25Socket head screw M8 x 25
-
2320004 Washer A8,4Washer A8,4
-
2440190 Hex, screw M10 x 80Hex, screw M10 x 80
-
25504083800 SpacerSpacer
-
26504073700 WasherWasher
-
27504152064 ChaincaseChaincase
-
2820005 Washer A10,5Washer A10,5
-
2933082 Elastic stop nut M10Elastic stop nut M10
-
30293800060 Loctite 243, 250 mlLoctite 243, 250 ml
-
31732601314 Adjustment ScrewAdjustment Screw
-
32414484400 O-RingO-Ring
-
33504081000 Machined TensionerMachined Tensioner
-
34504080200 SpacerSpacer
-
35504080300 WasherWasher
-
36405403000 Needle BearingNeedle Bearing
-
37414531300 RollerRoller
-
38732601144 ScrewScrew
-
39293800005 Loctite 271, 10 mlLoctite 271, 10 ml
-
40504151927 SealSeal
-
41371901700 Circlip, InteriorCirclip, Interior
-
42504152006 Ball BearingBall Bearing
-
43504147200 ShimShim
-
44504152031 Sprocket, 19 Teeth. Explorer 550Sprocket, 19 Teeth. Explorer 550
-
45504152049 SpacerSpacer
-
46232210414 Hex Castellated Nut M16Hex Castellated Nut M16
-
47417000900 Spring WasherSpring Washer
-
4841003 PinPin
-
49504151830 Drive Chain, 72 Links. Explorer 550Drive Chain, 72 Links. Explorer 550
-
50504148500 43 Teeth Sprocket, Large. Explorer 55043 Teeth Sprocket, Large. Explorer 550
-
51415064300 Circlip, InteriorCirclip, Interior
-
52415046400 O-RingO-Ring
-
53504152027 Chaincase CoverChaincase Cover
-
5440040 Hex. screw M10 x 25Hex. screw M10 x 25
-
5520068 Lock washerLock washer
-
5640340 Socket head screw M6 x 30Socket head screw M6 x 30
-
57504151703 Filler Cap Ass’YFiller Cap Ass’Y
-
58414969400 O-RingO-Ring
-
59413803300 Synthetic Chaincase Oil, 12 X 355 mlSynthetic Chaincase Oil, 12 X 355 ml
-
60414575600 Hair PinHair Pin
-
61504151921 Plug 1/8”-27Plug 1/8”-27
-
62501022400 CapCap
-
63504152005 Ball BearingBall Bearing
-
64501021800 SleeveSleeve
-
65605449796 Washer. Explorer 550Washer. Explorer 550
