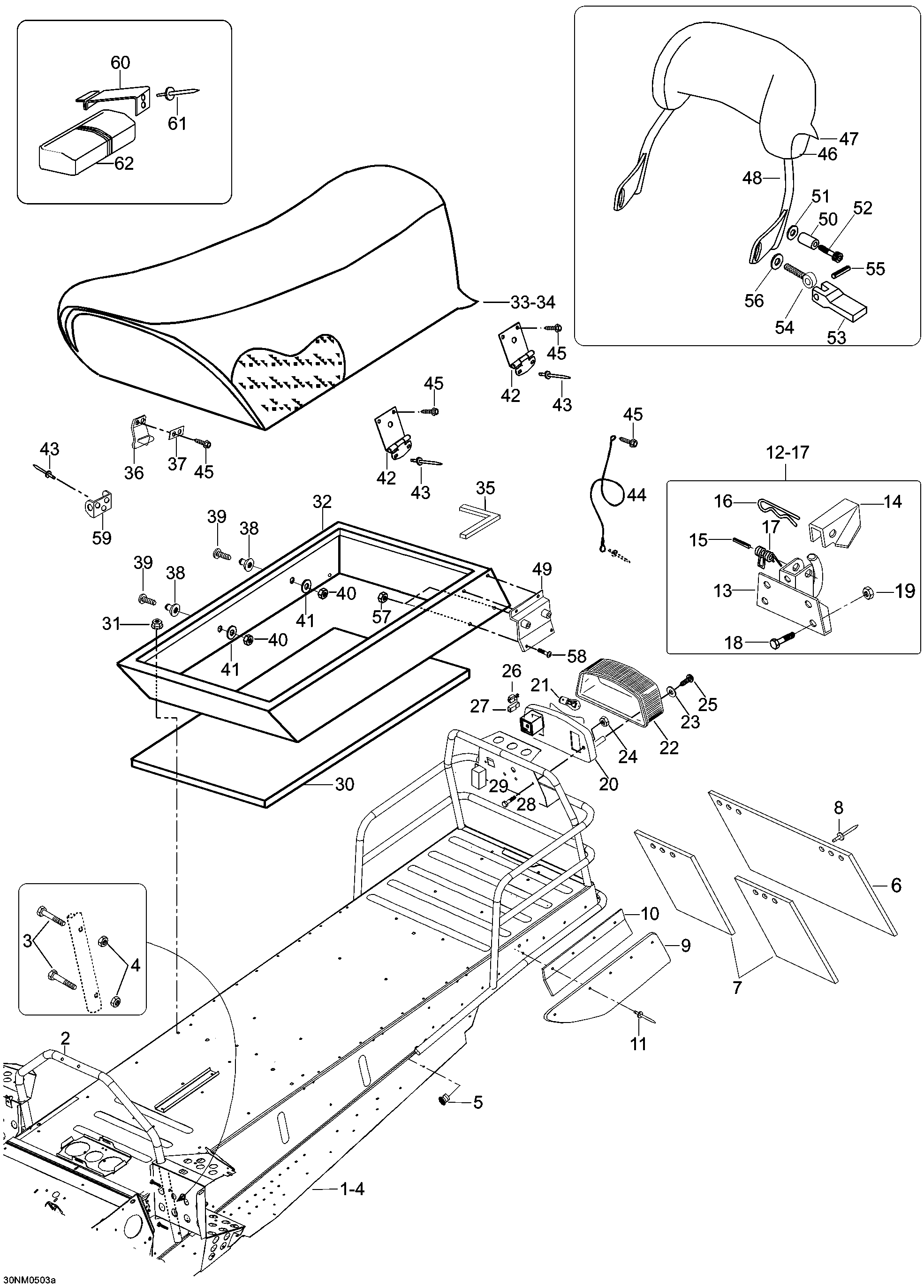

09- Frame, 6900 для BRP Lynx Lynx 6900 - 2005
-
№АртикулНазвание
-
1605150143 Chassis. Includes 1 to 4Chassis. Includes 1 to 4
-
25145379 Handle steering supp.Handle steering supp.
-
340002 Screw M6 x 40Screw M6 x 40
-
433200 Nut M6Nut M6
-
528136 PlugPlug
-
65340055 Snow guardSnow guard
-
75341770 SupportSupport
-
836037 RivetRivet
-
95340136 Snow guard, sideSnow guard, side
-
105340532 SupportSupport
-
1136097 RivetRivet
-
125344156 Hitch Assy. Includes 12 to 17Hitch Assy. Includes 12 to 17
-
135344208 Bracket weldedBracket welded
-
145440767 LatchLatch
-
1541012 CotterCotter
-
1641029 PinPin
-
17545693 SpringSpring
-
1840336 Screw M8 x 20Screw M8 x 20
-
1933011 Nut elastic M8Nut elastic M8
-
20510004061 Tail lamp housingTail lamp housing
-
21410504000 Bulb tail lampBulb tail lamp
-
22414513700 LensLens
-
23414516400 WasherWasher
-
2433200 Nut M6Nut M6
-
25414516300 ScrewScrew
-
2642178 Female terminalFemale terminal
-
2742179 Connector housingConnector housing
-
2840032 Screw M6 x 30Screw M6 x 30
-
295345713 CoverCover
-
305346331 Foam, seat baseFoam, seat base
-
3133200 Elastic flanged nut M6Elastic flanged nut M6
-
325246336 Seat boxSeat box
-
33605148842 Seat. Includes 33 to 34Seat. Includes 33 to 34
-
34605148843 CoverCover
-
35390002 SealSeal
-
365346383 LatchLatch
-
375446848 Support plateSupport plate
-
38605449087 Counter rollCounter roll
-
3940168 Screw M4 x 25Screw M4 x 25
-
4033008 Nut elastic M4Nut elastic M4
-
4120037 Washer 4mmWasher 4mm
-
425446374 Hinge for set ass'yHinge for set ass'y
-
4336083 RivetRivet
-
44546777 Retainer cableRetainer cable
-
4540888 Screw 4,2 x 19Screw 4,2 x 19
-
46539399 FoamFoam
-
475340917 CoverCover
-
485241820 BackrestBackrest
-
495341889 R.H. Fixing plateR.H. Fixing plate
-
495341818 L.H. Fixing plateL.H. Fixing plate
-
505441814 SleeveSleeve
-
5120004 Washer 8mmWasher 8mm
-
5240336 Hex. screw M8 x 20Hex. screw M8 x 20
-
535243419 Locking LeverLocking Lever
-
54517250100 Eye boltEye bolt
-
55414821400 PinPin
-
5620023 Washer 10mmWasher 10mm
-
5733062 Elastic flanged nut M5Elastic flanged nut M5
-
5840063 Screw M5 x 12Screw M5 x 12
-
59548824 Belt LugBelt Lug
-
60539455 Spring plateSpring plate
-
6136005 RivetRivet
-
625445401 Tool box assyTool box assy
