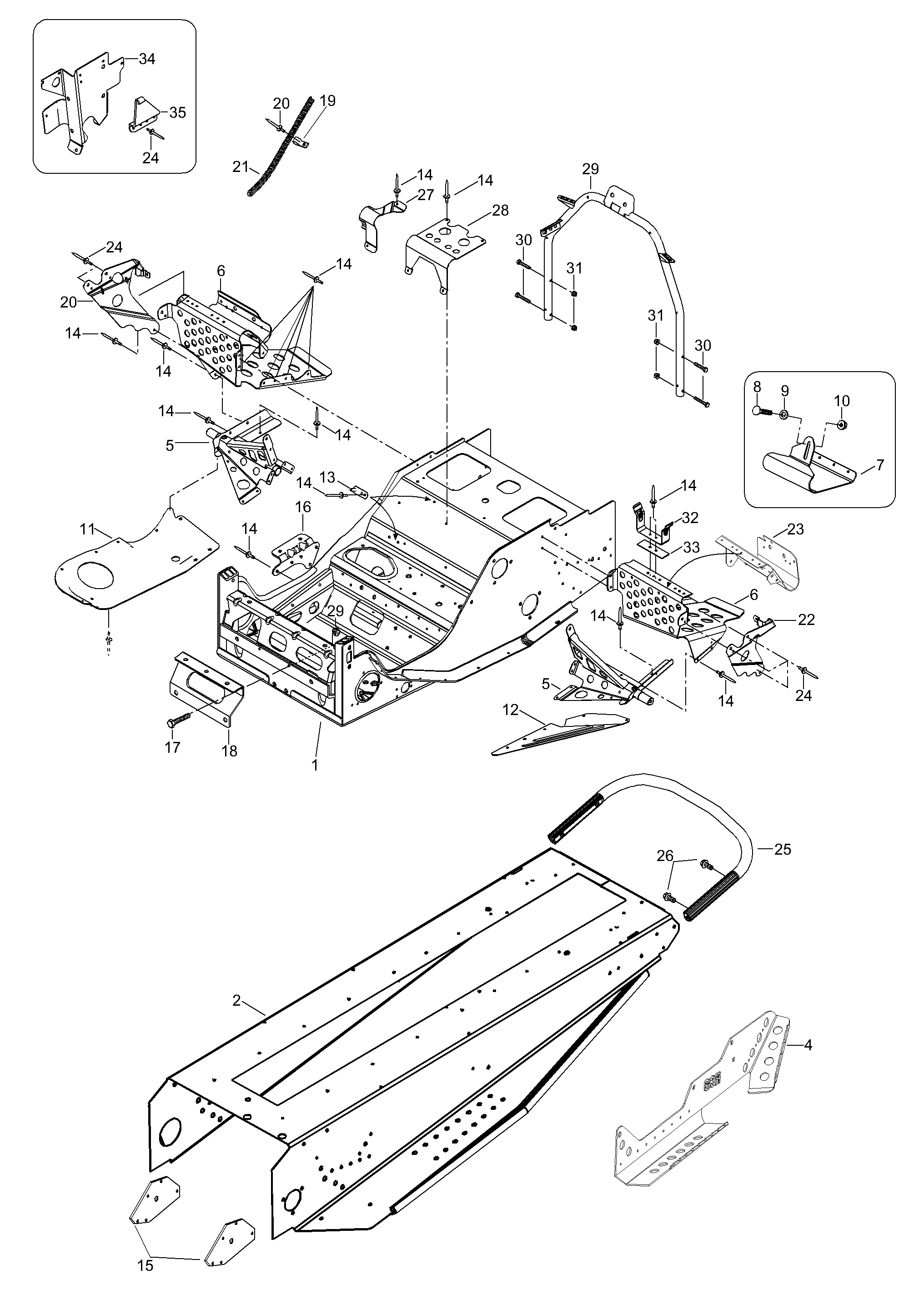

09- Frame для BRP Lynx Rave Cross 800 HO - 2004

  • №
    Артикул
    Название
  • 1
    605150892 Frame assy. Includes items 1 thru 24
    Frame assy. Includes items 1 thru 24
  • 3
    605349547 R.H. support, aluminium
    R.H. support, aluminium
  • 3
    605349548 R.H. support, aluminium
    R.H. support, aluminium
  • 4
    605249540 R.H. holed corner plate
    R.H. holed corner plate
  • 4
    605249539 L.H. holed corner plate
    L.H. holed corner plate
  • 5
    605248447 R.H. support
    R.H. support
  • 5
    605248448 L.H. support
    L.H. support
  • 6
    605250377 R.H. front footrest
    R.H. front footrest
  • 6
    605250378 L.H. front footrest
    L.H. front footrest
  • 7
    5248038 R.H. toe hold, adjustable
    R.H. toe hold, adjustable
  • 7
    5248039 L.H. toe hold, adjustable
    L.H. toe hold, adjustable
  • 8
    40058 Locking screw M8 x 20
    Locking screw M8 x 20
  • 9
    20005 Washer
    Washer
  • 10
    33201 Elastic flanged nut M8
    Elastic flanged nut M8
  • 11
    518319760 R.H. bottom pan plate
    R.H. bottom pan plate
  • 12
    605349267 L.H. reinf. plate
    L.H. reinf. plate
  • 13
    518319728 Double bracket
    Double bracket
  • 14
    36489 Rivet
    Rivet
  • 15
    5348321 Support
    Support
  • 16
    518322635 Muffler support
    Muffler support
  • 17
    40029 Screw M6 x 16
    Screw M6 x 16
  • 18
    5346111 Bracket
    Bracket
  • 19
    27092 Clip
    Clip
  • 20
    36036 Rivet
    Rivet
  • 21
    518321569 Rope guide
    Rope guide
  • 22
    605250669 R.H. footrest reinforcem.
    R.H. footrest reinforcem.
  • 22
    605250670 L.H. footrest reinforcem.
    L.H. footrest reinforcem.
  • 23
    5147869 R.H. toe hold
    R.H. toe hold
  • 23
    5147870 L.H. toe hold
    L.H. toe hold
  • 24
    36083 Rivet
    Rivet
  • 25
    605349543 Rear bumper, red
    Rear bumper, red
  • 26
    40336 Screw M8 x 20
    Screw M8 x 20
  • 27
    518322699 Hose support
    Hose support
  • 28
    518310400 Air intake support
    Air intake support
  • 29
    5247856 Handle steering supp.
    Handle steering supp.
  • 30
    40003 Screw M6 x 35
    Screw M6 x 35
  • 31
    33200 Nut M6
    Nut M6
  • 32
    518202100 Pulley Guard bracket
    Pulley Guard bracket
  • 33
    518207500 Reinforcement
    Reinforcement
  • 34
    518322927 Bracket
    Bracket
  • 35
    518322928 Bracket
    Bracket
