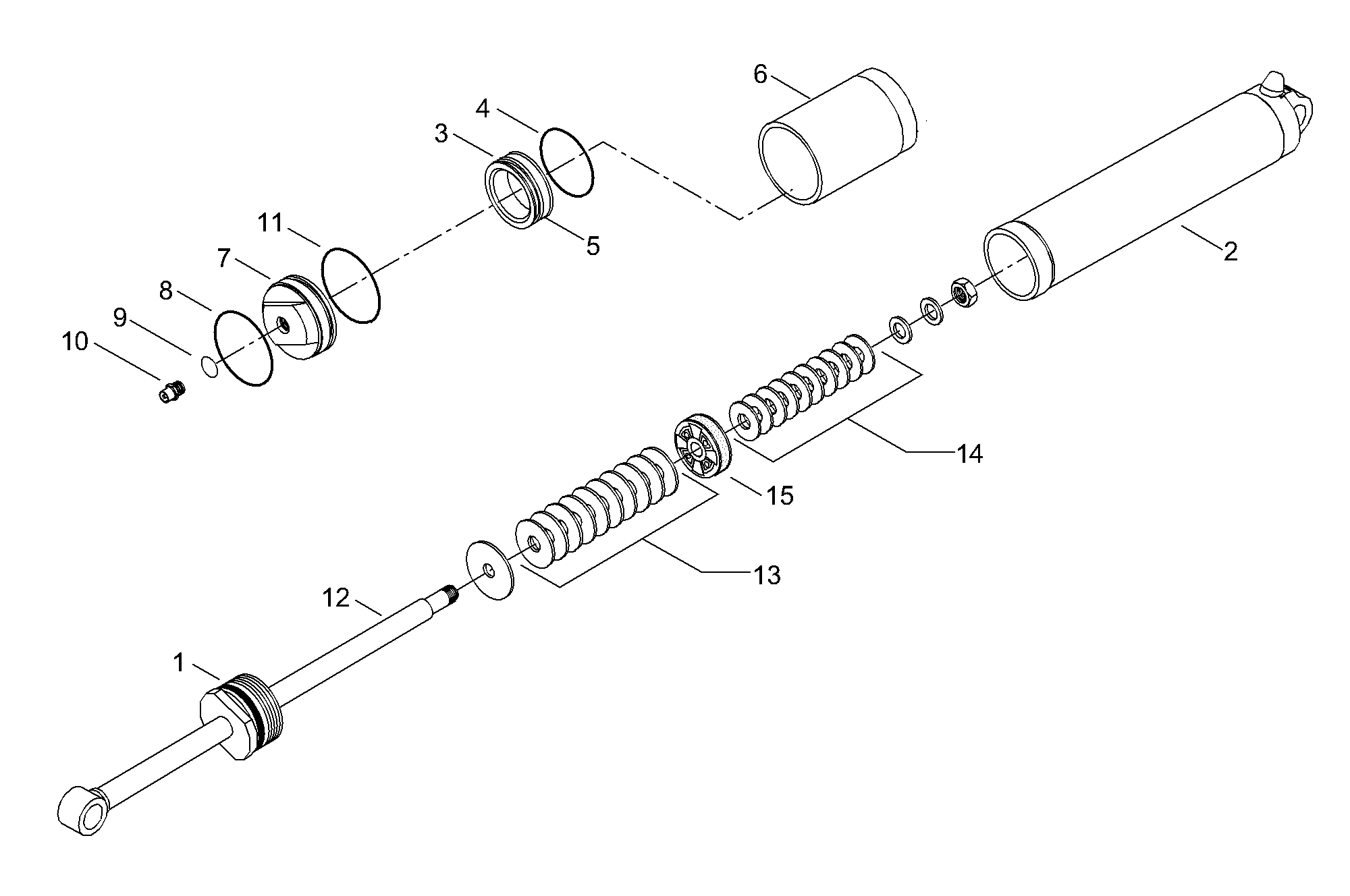

08- Rear Suspension для BRP Lynx Rave 800/RC - 2004

  • №
    Артикул
    Название
  • 23202 Shock, central (RC-models)
    Shock, central (RC-models)
  • 1
    230060 Seal carrier assy
    Seal carrier assy
  • 3
    415093812 Floating piston
    Floating piston
  • 4
    415093807 O-ring
    O-ring
  • 5
    415093806 Piston ring
    Piston ring
  • 9
    230050 O-ring
    O-ring
  • 10
    230061 Air valve
    Air valve
  • 11
    415093804 O-ring
    O-ring
  • 12
    230047 Rod assy
    Rod assy
  • 13
    230029 Leaf valve 20x0.114
    Leaf valve 20x0.114
  • 13
    230030 Leaf valve 20x0.152
    Leaf valve 20x0.152
  • 13
    230031 Leaf valve 20x0.203
    Leaf valve 20x0.203
  • 13
    230032 Leaf valve 20x0.254
    Leaf valve 20x0.254
  • 13
    503189011 Leaf valve 22x0.114
    Leaf valve 22x0.114
  • 13
    503189012 Leaf valve 22x0.152
    Leaf valve 22x0.152
  • 13
    503189013 Leaf valve 22x0.203
    Leaf valve 22x0.203
  • 13
    503189014 Leaf valve 22x0.254
    Leaf valve 22x0.254
  • 13
    503189016 Leaf valve 24x0.114
    Leaf valve 24x0.114
  • 13
    503189017 Leaf valve 24x0.152
    Leaf valve 24x0.152
  • 13
    503189018 Leaf valve 24x0.203
    Leaf valve 24x0.203
  • 13
    503189019 Leaf valve 24x0.254
    Leaf valve 24x0.254
  • 13
    503189021 Leaf valve 26x0.114
    Leaf valve 26x0.114
  • 13
    503189022 Leaf valve 26x0.152
    Leaf valve 26x0.152
  • 13
    503189023 Leaf valve 26x0.203
    Leaf valve 26x0.203
  • 13
    503189024 Leaf valve 26x0.254
    Leaf valve 26x0.254
  • 13
    503189026 Leaf valve 28x0.114
    Leaf valve 28x0.114
  • 13
    503189027 Leaf valve 28x0.152
    Leaf valve 28x0.152
  • 13
    503189028 Leaf valve 28x0.203
    Leaf valve 28x0.203
  • 13
    503189029 Leaf valve 28x0.254
    Leaf valve 28x0.254
  • 13
    503189031 Leaf valve 30x0.114
    Leaf valve 30x0.114
  • 13
    503189032 Leaf valve 30x0.152
    Leaf valve 30x0.152
  • 13
    503189033 Leaf valve 30x0.203
    Leaf valve 30x0.203
  • 13
    503189034 Leaf valve 30x0.254
    Leaf valve 30x0.254
  • 13
    230082 Leaf valve 32x0.114
    Leaf valve 32x0.114
  • 13
    230033 Leaf valve 34x0.114
    Leaf valve 34x0.114
  • 13
    230034 Leaf valve 34x0.152
    Leaf valve 34x0.152
  • 13
    230035 Leaf valve 34x0.203
    Leaf valve 34x0.203
  • 13
    230036 Leaf valve 34x0.254
    Leaf valve 34x0.254
  • 13
    230037 Leaf valve 36x0.114
    Leaf valve 36x0.114
  • 13
    503189036 Leaf valve 36x0.152
    Leaf valve 36x0.152
  • 13
    503189037 Leaf valve 36x0.203
    Leaf valve 36x0.203
  • 13
    503189038 Leaf valve 36x0.254
    Leaf valve 36x0.254
  • 13
    230040 Leaf valve 38x0.152
    Leaf valve 38x0.152
  • 13
    230041 Leaf valve 38x0.203
    Leaf valve 38x0.203
  • 13
    230042 Leaf valve 38x0.254
    Leaf valve 38x0.254
  • 13
    503189039 Leaf valve 40x0.114
    Leaf valve 40x0.114
  • 13
    503189040 Leaf valve 40x0.203
    Leaf valve 40x0.203
  • 13
    503189041 Leaf valve 40x0.254
    Leaf valve 40x0.254
  • 14
    230029 Leaf valve 20x0.114
    Leaf valve 20x0.114
  • 14
    230030 Leaf valve 20x0.152
    Leaf valve 20x0.152
  • 14
    230031 Leaf valve 20x0.203
    Leaf valve 20x0.203
  • 14
    230032 Leaf valve 20x0.254
    Leaf valve 20x0.254
  • 14
    503189011 Leaf valve 22x0.114
    Leaf valve 22x0.114
  • 14
    503189012 Leaf valve 22x0.152
    Leaf valve 22x0.152
  • 14
    503189013 Leaf valve 22x0.203
    Leaf valve 22x0.203
  • 14
    503189014 Leaf valve 22x0.254
    Leaf valve 22x0.254
  • 14
    503189016 Leaf valve 24x0.114
    Leaf valve 24x0.114
  • 14
    503189017 Leaf valve 24x0.152
    Leaf valve 24x0.152
  • 14
    503189018 Leaf valve 24x0.203
    Leaf valve 24x0.203
  • 14
    503189019 Leaf valve 24x0.254
    Leaf valve 24x0.254
  • 14
    503189021 Leaf valve 26x0.114
    Leaf valve 26x0.114
  • 14
    503189022 Leaf valve 26x0.152
    Leaf valve 26x0.152
  • 14
    503189023 Leaf valve 26x0.203
    Leaf valve 26x0.203
  • 14
    503189024 Leaf valve 26x0.254
    Leaf valve 26x0.254
  • 14
    503189026 Leaf valve 28x0.114
    Leaf valve 28x0.114
  • 14
    503189027 Leaf valve 28x0.152
    Leaf valve 28x0.152
  • 14
    503189028 Leaf valve 28x0.203
    Leaf valve 28x0.203
  • 14
    503189029 Leaf valve 28x0.254
    Leaf valve 28x0.254
  • 14
    503189031 Leaf valve 30x0.114
    Leaf valve 30x0.114
  • 14
    503189032 Leaf valve 30x0.152
    Leaf valve 30x0.152
  • 14
    503189033 Leaf valve 30x0.203
    Leaf valve 30x0.203
  • 14
    503189034 Leaf valve 30x0.254
    Leaf valve 30x0.254
  • 14
    230082 Leaf valve 32x0.114
    Leaf valve 32x0.114
  • 14
    230033 Leaf valve 34x0.114
    Leaf valve 34x0.114
  • 14
    230034 Leaf valve 34x0.152
    Leaf valve 34x0.152
  • 14
    230035 Leaf valve 34x0.203
    Leaf valve 34x0.203
  • 14
    230036 Leaf valve 34x0.254
    Leaf valve 34x0.254
  • 14
    230037 Leaf valve 36x0.114
    Leaf valve 36x0.114
  • 14
    503189036 Leaf valve 36x0.152
    Leaf valve 36x0.152
  • 14
    503189037 Leaf valve 36x0.203
    Leaf valve 36x0.203
  • 14
    503189038 Leaf valve 36x0.254
    Leaf valve 36x0.254
  • 14
    230040 Leaf valve 38x0.152
    Leaf valve 38x0.152
  • 14
    230041 Leaf valve 38x0.203
    Leaf valve 38x0.203
  • 14
    230042 Leaf valve 38x0.254
    Leaf valve 38x0.254
  • 14
    503189039 Leaf valve 40x0.114
    Leaf valve 40x0.114
  • 14
    503189040 Leaf valve 40x0.203
    Leaf valve 40x0.203
  • 14
    503189041 Leaf valve 40x0.254
    Leaf valve 40x0.254
  • 15
    230044 Piston 1.2 mm
    Piston 1.2 mm
  • 15
    230038 Piston 1.7 mm
    Piston 1.7 mm
  • 15
    230039 Piston 2.0 mm
    Piston 2.0 mm
  • 15
    230110 Piston 2.2 mm
    Piston 2.2 mm
  • 15
    230043 Piston
    Piston
