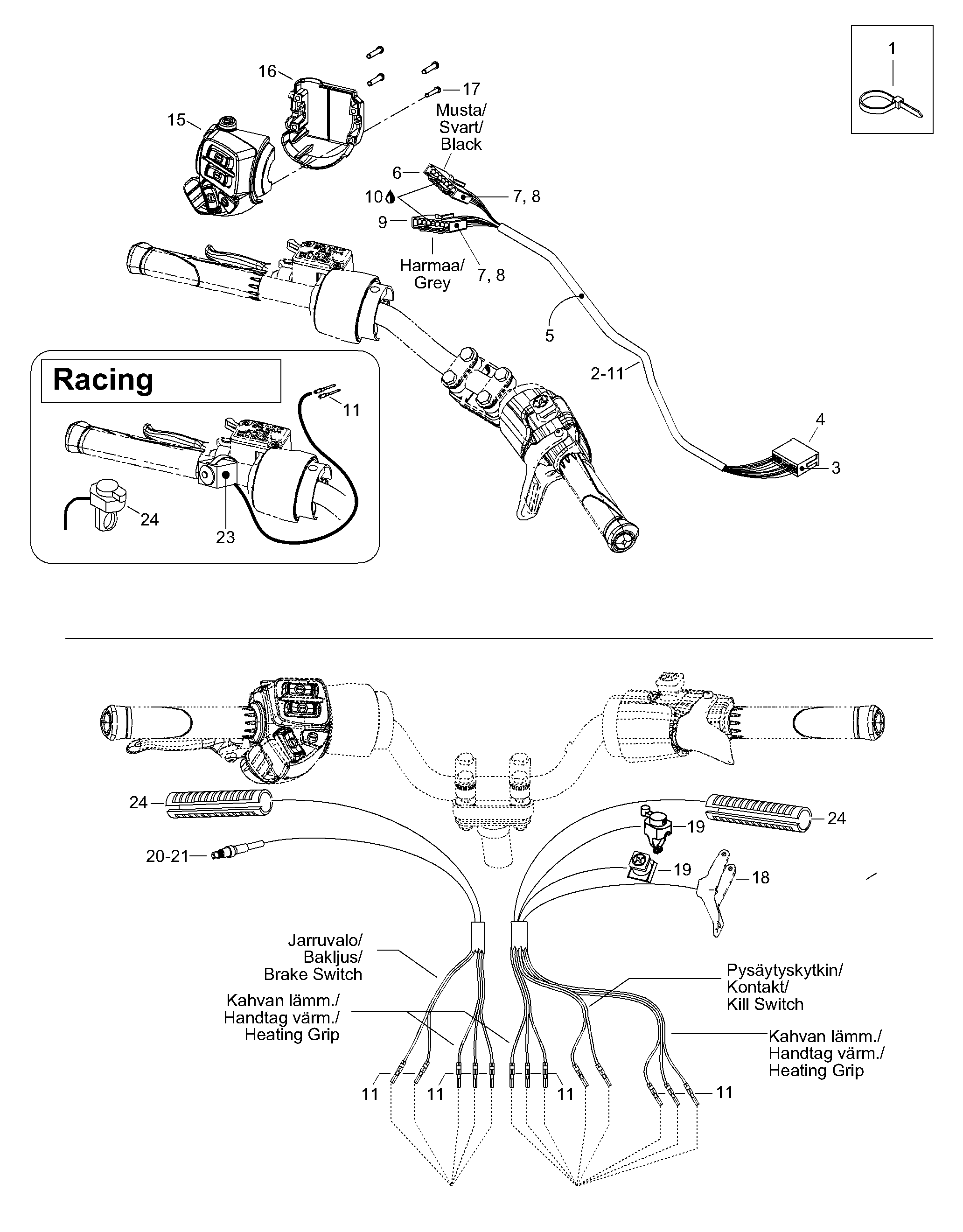

06- Brake Switch для BRP Lynx Enduro 600 HO/RC - 2004

  • №
    Артикул
    Название
  • 1
    27010 Tie rap 98 mm
    Tie rap 98 mm
  • 1
    27026 Tie rap 290 mm
    Tie rap 290 mm
  • 3
    42603 Male terminal
    Male terminal
  • 4
    42621 Male terminal housing (1
    Male terminal housing (1
  • 5
    39015 Tubing 12 mm
    Tubing 12 mm
  • 6
    515175807 Female terminal housin
    Female terminal housin
  • 7
    515175808 Female terminal
    Female terminal
  • 8
    515175809 Lock (8 circuits)
    Lock (8 circuits)
  • 9
    515175810 Female terminal housin
    Female terminal housin
  • 10
    293550004 Dielectric grease, 150 g
    Dielectric grease, 150 g
  • 11
    42603 Male terminal
    Male terminal
  • 12
    515175941 Female terminal
    Female terminal
  • 13
    515175819 Female terminal housin
    Female terminal housin
  • 14
    515175830 Low temperature tubing
    Low temperature tubing
  • 15
    515176062 L.H. housing switch
    L.H. housing switch
  • 16
    515175926 Housing switch plate
    Housing switch plate
  • 17
    40903 Screw 3,5 x 25
    Screw 3,5 x 25
  • 18
    512059107 Handle ass’y
    Handle ass’y
  • 19
    515175410 Kill switch
    Kill switch
  • 20
    507032334 Microswitch. Includes items 20 thru 21
    Microswitch. Includes items 20 thru 21
  • 21
    42603 Male terminal
    Male terminal
  • 22
    515175657 Handle grip
    Handle grip
