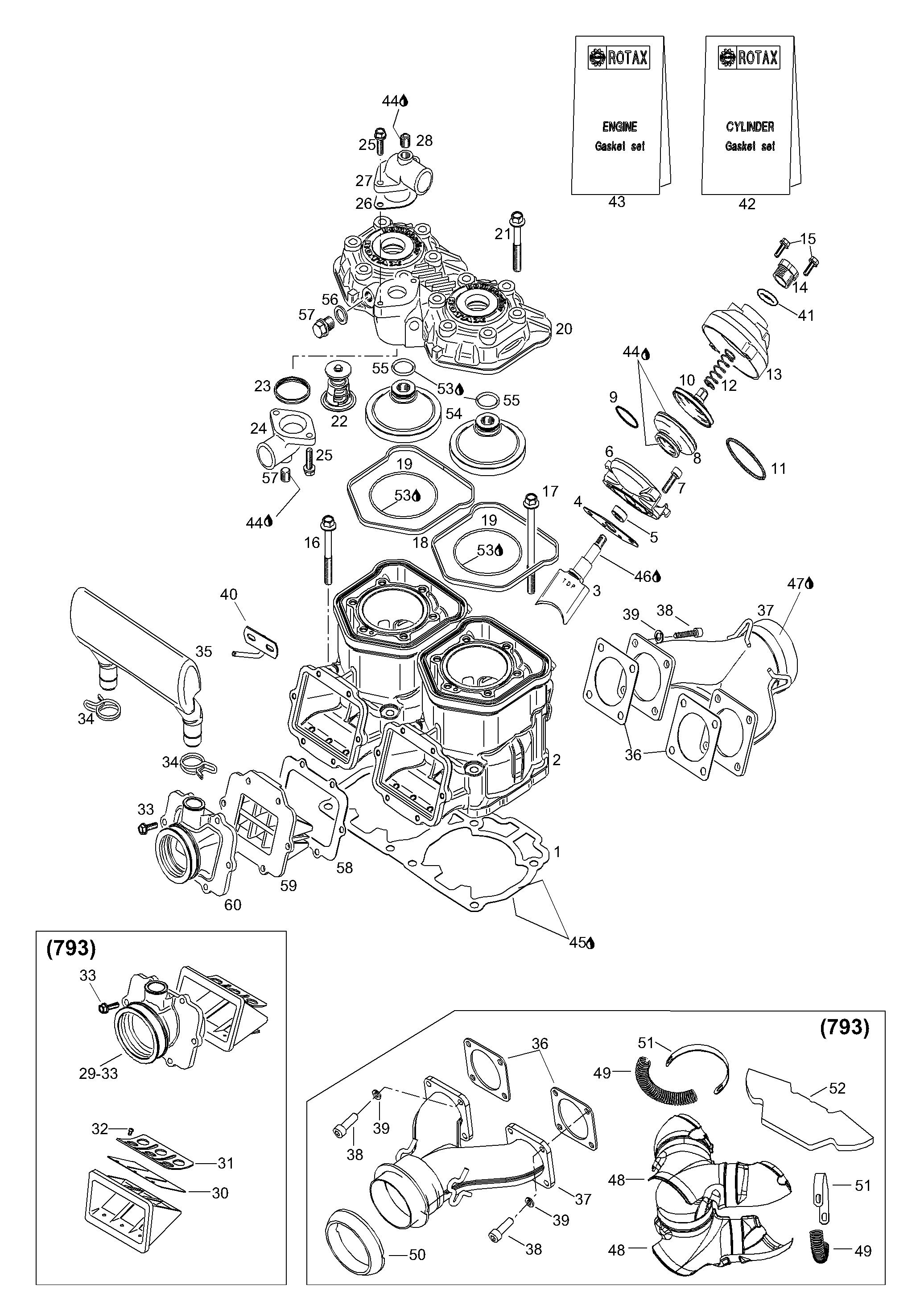

01- Cylinder для BRP Lynx Rave 800 Special - 2003
-
№АртикулНазвание
-
1420931838 Gasket, double 0.5 mmGasket, double 0.5 mm
-
1420931837 Gasket, double 0.6 mmGasket, double 0.6 mm
-
1420931964 Gasket, double 0.7 mmGasket, double 0.7 mm
-
1420931839 Gasket, double 0.8 mmGasket, double 0.8 mm
-
2420923817 Cylinder, nicasilCylinder, nicasil
-
3420854465 Exhaust valveExhaust valve
-
4420931542 GasketGasket
-
5420430110 O-ringO-ring
-
6420854455 Valve rod housingValve rod housing
-
7420840861 Allen screw M6x25Allen screw M6x25
-
8420260729 BellowsBellows
-
9420838253 Hose springHose spring
-
10420854449 Exhaust valve pistonExhaust valve piston
-
11420239048 Compression springCompression spring
-
12420239941 Spring, blueSpring, blue
-
13420911558 Valve coverValve cover
-
14420241220 Adjustment screwAdjustment screw
-
15420241270 Screw M5x25Screw M5x25
-
16420640524 Screw M10x80Screw M10x80
-
17420640534 Screw M10x120Screw M10x120
-
18420931590 Square ringSquare ring
-
19420931410 O-ringO-ring
-
20420923826 Cylinderhead, redCylinderhead, red
-
21420941621 Screw M8x56,5Screw M8x56,5
-
22420922517 ThermostatThermostat
-
23420931272 Thermostat gasketThermostat gasket
-
24420922025 Water outlet socketWater outlet socket
-
25420941250 Screw M6x20Screw M6x20
-
26420850338 GasketGasket
-
27420922062 Bent outlet socketBent outlet socket
-
28420240480 Plug screwPlug screw
-
29420867873 Reed valve assy. Includes items 29 thru 33Reed valve assy. Includes items 29 thru 33
-
30420924680 Reed pedalReed pedal
-
31420924695 Reed pedal stopReed pedal stop
-
32420941215 Screw M3x5Screw M3x5
-
33420941925 Screw M5x16Screw M5x16
-
34420851440 ClampClamp
-
35420867817 Intake resonatorIntake resonator
-
36420931850 GasketGasket
-
37420973714 Exhaust manifoldExhaust manifold
-
3840052 Allen screw M6x20Allen screw M6x20
-
3920052 Lock washerLock washer
-
40512059504 HookHook
-
41420430220 O-ringO-ring
-
42420888745 Gasket set, cylinderGasket set, cylinder
-
43420888741 Gasket set, engineGasket set, engine
-
44420297906 Sealing compound, 30Sealing compound, 30
-
45293800038 Loctite 518, 50 mlLoctite 518, 50 ml
-
46711297433 Molykote G-N, 50 gMolykote G-N, 50 g
-
47293800090 Loctite 82046, 80 mlLoctite 82046, 80 ml
-
48514053593 Enveloppe, manif. exh.Enveloppe, manif. exh.
-
49514053643 SpringSpring
-
50514053487 GasketGasket
-
51514053603 Strap retainingStrap retaining
-
52514053588 Wool insulationWool insulation
-
53413707000 Molykote 111Molykote 111
