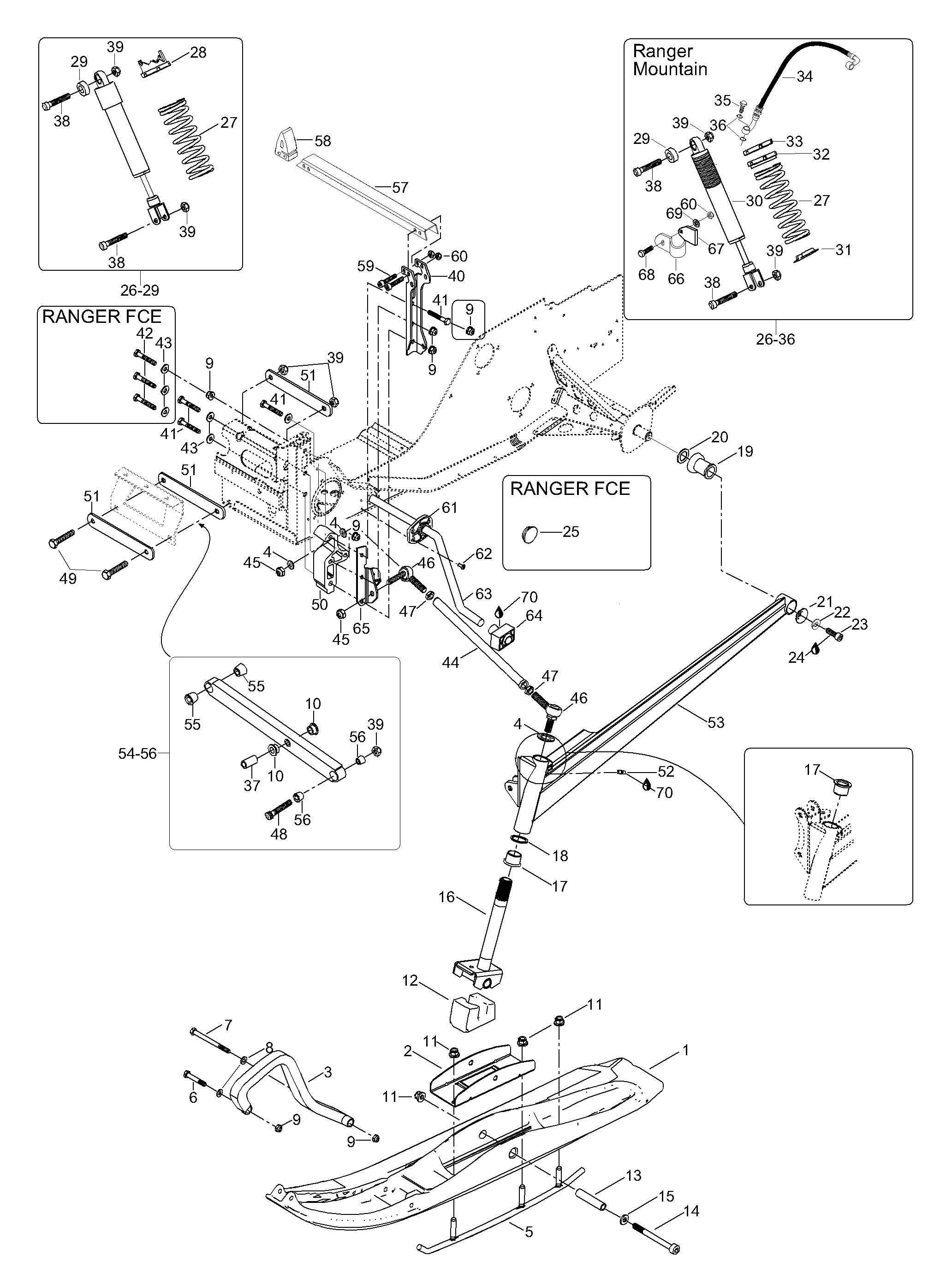

08- Front Suspension для BRP Lynx Ranger FCE - 2003

  • №
    Артикул
    Название
  • 1
    505071046 R.H. Ski liner
    R.H. Ski liner
  • 1
    505071047 L.H. Ski liner
    L.H. Ski liner
  • 2
    505070745 Bridge
    Bridge
  • 3
    505070963 Plastic handle
    Plastic handle
  • 4
    20074 Lock washer
    Lock washer
  • 5
    605348959 Runner carbide
    Runner carbide
  • 6
    40009 Screw M8x50
    Screw M8x50
  • 7
    40869 Screw M8x100
    Screw M8x100
  • 8
    20004 Washer
    Washer
  • 9
    33201 Elastic flanged nut M8
    Elastic flanged nut M8
  • 10
    31088 Bearing
    Bearing
  • 11
    33074 Elastic flange nut M10
    Elastic flange nut M10
  • 12
    506151233 Stopper-ski
    Stopper-ski
  • 13
    506133300 Spacer
    Spacer
  • 14
    40394 Allens crew M10x120
    Allens crew M10x120
  • 15
    503183300 Washer, hardened
    Washer, hardened
  • 16
    605248383 Ski leg
    Ski leg
  • 17
    505070003 Bushing
    Bushing
  • 18
    505070004 Washer
    Washer
  • 19
    570062200 Damper
    Damper
  • 20
    503146700 Washer
    Washer
  • 21
    506079600 Cup
    Cup
  • 22
    20014 Spring washer
    Spring washer
  • 23
    40289 Allen screw M8x25
    Allen screw M8x25
  • 24
    293800060 Loctite 243, 10ml
    Loctite 243, 10ml
  • 25
    414916600 Plug
    Plug
  • 26
    23180 Shock assy. Includes items 26 thru 29
    Shock assy. Includes items 26 thru 29
  • 28
    503183700 Cam
    Cam
  • 29
    230055 Rubber bushing
    Rubber bushing
  • 37
    5441433 Bushing
    Bushing
  • 38
    40837 Allen screw M10x55
    Allen screw M10x55
  • 39
    33012 Nut elastic M10
    Nut elastic M10
  • 40
    5247702 Shock bracket
    Shock bracket
  • 41
    40010 Screw M8x55
    Screw M8x55
  • 42
    40264 Screw M8x90
    Screw M8x90
  • 43
    20104 Washer, hardened
    Washer, hardened
  • 44
    605348813 Upper arm
    Upper arm
  • 45
    33087 Jam nut elastic M12
    Jam nut elastic M12
  • 46
    31092 Ball joint
    Ball joint
  • 47
    33048 Jam nut M12
    Jam nut M12
  • 48
    40136 Allen screw M10x50
    Allen screw M10x50
  • 49
    40814 Screw M10x110
    Screw M10x110
  • 50
    5447566 R.H. Upper arm bracket
    R.H. Upper arm bracket
  • 50
    5447559 L.H. Upper arm bracket
    L.H. Upper arm bracket
  • 51
    5346112 Support plate
    Support plate
  • 52
    34011 Grease fitting
    Grease fitting
  • 53
    605248965 Swing arm, L.H. blue
    Swing arm, L.H. blue
  • 53
    605248966 Swing arm, R.H. blue
    Swing arm, R.H. blue
  • 54
    605248804 Lower arm, sininen. Includes items 54 thru 56
    Lower arm, sininen. Includes items 54 thru 56
  • 55
    5447769 Inner sleeve
    Inner sleeve
  • 56
    5447770 Outer sleeve
    Outer sleeve
  • 57
    5347225 Bracket
    Bracket
  • 58
    5348099 Rubber
    Rubber
  • 59
    40345 Allen screw M6x40
    Allen screw M6x40
  • 60
    33010 Nut elastic M6
    Nut elastic M6
  • 70
    413711500 Synthetic grease
    Synthetic grease
