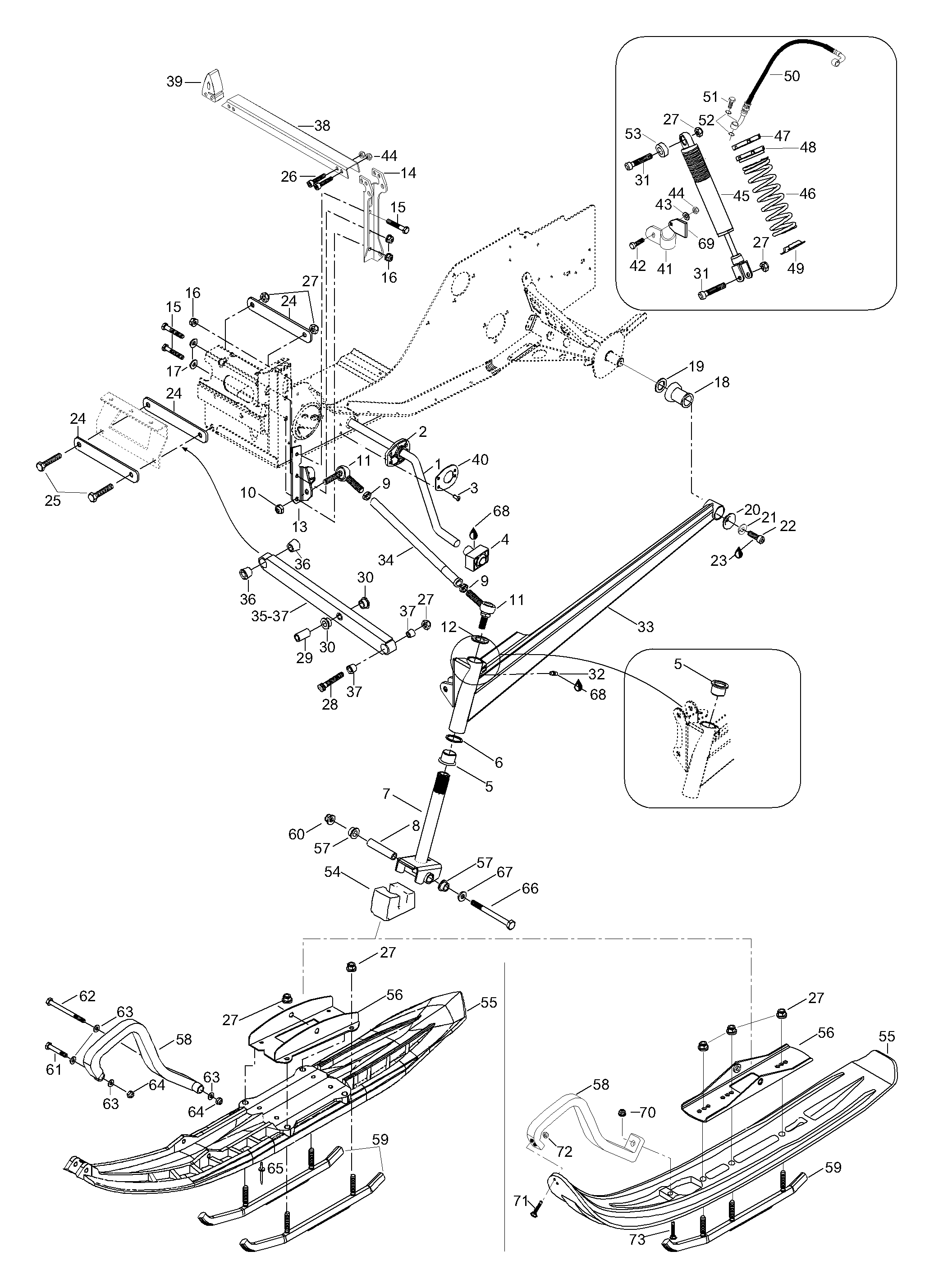

08- Front Suspension для BRP Lynx Racing - 2003

  • №
    Артикул
    Название
  • 1
    5246797 Sway bar
    Sway bar
  • 2
    505070191 Sleeve
    Sleeve
  • 3
    36087 Rivet
    Rivet
  • 4
    505070117 Block-joint ball
    Block-joint ball
  • 5
    505070003 Bushing
    Bushing
  • 6
    505070004 Washer
    Washer
  • 7
    605248927 Ski leg
    Ski leg
  • 8
    506133300 Spacer
    Spacer
  • 9
    33048 Jam nut M12
    Jam nut M12
  • 10
    33087 Jam nut elastic M12
    Jam nut elastic M12
  • 11
    31092 Ball joint
    Ball joint
  • 12
    20074 Lock washer
    Lock washer
  • 13
    605349406 L.H. Upper arm bracket
    L.H. Upper arm bracket
  • 13
    605349409 R.H. Upper arm bracket
    R.H. Upper arm bracket
  • 14
    5245488 Shock bracket
    Shock bracket
  • 14
    5246395 Shock bracket
    Shock bracket
  • 15
    40038 Screw M8x55
    Screw M8x55
  • 16
    33201 Elastic flanged nut M8
    Elastic flanged nut M8
  • 17
    20104 Washer, hardened
    Washer, hardened
  • 18
    570062200 Damper
    Damper
  • 19
    503146700 Washer
    Washer
  • 20
    506079600 Cup
    Cup
  • 21
    20014 Spring washer
    Spring washer
  • 22
    40289 Allen screw M8x25
    Allen screw M8x25
  • 23
    293800060 Loctite 243, 10ml
    Loctite 243, 10ml
  • 24
    5346112 Support plate
    Support plate
  • 25
    40814 Screw M10x110
    Screw M10x110
  • 26
    40345 Allen screw M6x40
    Allen screw M6x40
  • 27
    33012 Nut elastic M10
    Nut elastic M10
  • 28
    40858 Allen screw M10x50
    Allen screw M10x50
  • 29
    5441433 Bushing
    Bushing
  • 30
    31088 Bearing
    Bearing
  • 31
    40852 Allen screw M10x55
    Allen screw M10x55
  • 32
    34011 Grease fitting
    Grease fitting
  • 33
    605248963 Swing arm, L.H. red
    Swing arm, L.H. red
  • 33
    605248964 Swing arm, R.H. red
    Swing arm, R.H. red
  • 34
    5346122 Upper arm
    Upper arm
  • 35
    605249116 Lower arm, red. Includes items 35 thru 37
    Lower arm, red. Includes items 35 thru 37
  • 36
    5447769 Inner sleeve
    Inner sleeve
  • 37
    5447770 Outer sleeve
    Outer sleeve
  • 38
    5348108 Bracket
    Bracket
  • 39
    5348087 Rubber damper
    Rubber damper
  • 40
    505070542 Plate
    Plate
  • 41
    5446702 Bracket
    Bracket
  • 42
    40846 Lock screw M6x16
    Lock screw M6x16
  • 43
    20009 Washer
    Washer
  • 44
    33010 Nut elastic M6
    Nut elastic M6
  • 45
    605348897 Shock assy. Includes items 45 thru 53
    Shock assy. Includes items 45 thru 53
  • 45
    23169 Shock
    Shock
  • 46
    25050 Spring
    Spring
  • 47
    230053 Adjusting ring
    Adjusting ring
  • 48
    230054 Guide spring
    Guide spring
  • 49
    230076 Guide spring
    Guide spring
  • 50
    230062 Hose
    Hose
  • 51
    415093810 Screw
    Screw
  • 52
    415038700 O-ring
    O-ring
  • 53
    230055 Rubber bushing
    Rubber bushing
  • 54
    506151233 Stopper-ski
    Stopper-ski
  • 55
    28002 Ski liner
    Ski liner
  • 56
    605349374 Bridge
    Bridge
  • 58
    28003 Plastic handle, red
    Plastic handle, red
  • 59
    605349376 Runner
    Runner
  • 60
    33074 Elastic flange nut M10
    Elastic flange nut M10
  • 66
    40814 Screw M10x110
    Screw M10x110
  • 67
    20105 Washer, hardened
    Washer, hardened
  • 68
    413711500 Synthetic grease
    Synthetic grease
  • 69
    5448228 Bracket
    Bracket
  • 70
    33201 Elastic flanged nut M8
    Elastic flanged nut M8
  • 71
    40393 Allen screw M6x30
    Allen screw M6x30
  • 72
    33200 Elastic flanged nut M6
    Elastic flanged nut M6
  • 73
    40137 Allen screw M8x40
    Allen screw M8x40
