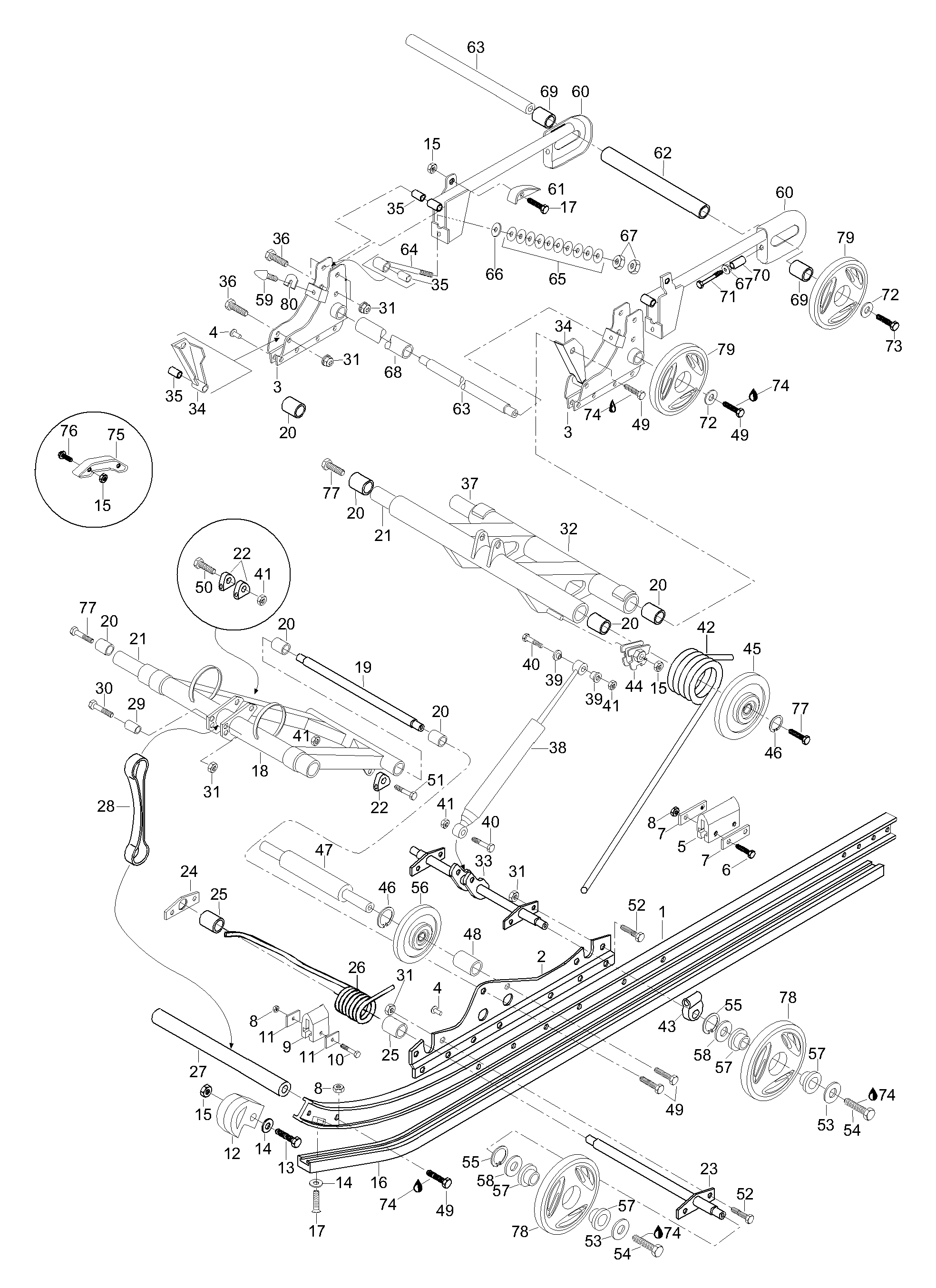

08- Rear Suspension для BRP Lynx Forest - 2003

  • №
    Артикул
    Название
  • 1
    5142866 R.H. Slide rail assy. Includes items 1 thru 4
    R.H. Slide rail assy. Includes items 1 thru 4
  • 1
    5142865 L.H. Slide rail assy. Includes items 1 thru 4
    L.H. Slide rail assy. Includes items 1 thru 4
  • 1
    5142864 Slide rail
    Slide rail
  • 2
    5344811 R.H. Side plate
    R.H. Side plate
  • 2
    5344810 L.H. Side plate
    L.H. Side plate
  • 3
    539673 R.H. Extension plate
    R.H. Extension plate
  • 3
    539672 L.H. Extension plate
    L.H. Extension plate
  • 4
    544212 Rivet
    Rivet
  • 5
    570023100 Rubber damper
    Rubber damper
  • 6
    40002 Screw M6x40
    Screw M6x40
  • 7
    548387 Washer
    Washer
  • 8
    33010 Lock nut M6
    Lock nut M6
  • 9
    5442328 Rubber damper
    Rubber damper
  • 10
    40032 Screw M6x30
    Screw M6x30
  • 11
    548470 Washer
    Washer
  • 12
    534578 Slide piece
    Slide piece
  • 13
    40031 Screw M6x25
    Screw M6x25
  • 14
    20003 Washer
    Washer
  • 15
    33200 Nut M6
    Nut M6
  • 16
    549582 Slide surface
    Slide surface
  • 17
    40030 Screw M6x20
    Screw M6x20
  • 18
    538796 Rocker arm, front
    Rocker arm, front
  • 19
    548944 Boggie shaft
    Boggie shaft
  • 20
    31046 Slide Bearing
    Slide Bearing
  • 21
    538945 Shaft
    Shaft
  • 22
    548799 Crank block
    Crank block
  • 23
    538802 Support wheel shaft
    Support wheel shaft
  • 24
    548469 Support plate
    Support plate
  • 25
    548841 Support sleeve
    Support sleeve
  • 26
    5241178 R.H. Spring, d=9.5
    R.H. Spring, d=9.5
  • 26
    5241177 L.H. Spring, d=9.5
    L.H. Spring, d=9.5
  • 27
    546599 Belt shaft
    Belt shaft
  • 28
    5445988 Stop belt
    Stop belt
  • 29
    546065 Sleeve
    Sleeve
  • 30
    40122 Screw M8x50
    Screw M8x50
  • 31
    33011 Lock nut M8
    Lock nut M8
  • 32
    538801 Rocking frame, rear
    Rocking frame, rear
  • 33
    538803 Shaft
    Shaft
  • 34
    5440350 R.H. Lever
    R.H. Lever
  • 34
    5440349 L.H. Lever
    L.H. Lever
  • 35
    545758 Sleeve
    Sleeve
  • 36
    40008 Screw M8x45
    Screw M8x45
  • 37
    548946 Shaft
    Shaft
  • 38
    23016 Shock
    Shock
  • 39
    544417 Sleeve
    Sleeve
  • 40
    40017 Screw M10x50
    Screw M10x50
  • 41
    33012 Nut elastic M10
    Nut elastic M10
  • 42
    538806 R.H. Spring, d=10.5
    R.H. Spring, d=10.5
  • 42
    538805 L.H. Spring, d=10.5
    L.H. Spring, d=10.5
  • 43
    548804 Spring crank block
    Spring crank block
  • 44
    572030800 Adjustment Cam, L.H.
    Adjustment Cam, L.H.
  • 44
    572030900 Adjustment Cam, R.H.
    Adjustment Cam, R.H.
  • 45
    503189568 Support wheel, 165/BK
    Support wheel, 165/BK
  • 46
    31001 Circlip
    Circlip
  • 47
    5445985 Support wheel shaft
    Support wheel shaft
  • 48
    5444098 Sleeve
    Sleeve
  • 49
    40335 Allen screw M10x30
    Allen screw M10x30
  • 50
    40018 Screw M10x55
    Screw M10x55
  • 51
    40042 Screw M10x35
    Screw M10x35
  • 52
    40035 Screw M8x16
    Screw M8x16
  • 53
    503183100 Washer
    Washer
  • 54
    40337 Screw M8x16
    Screw M8x16
  • 55
    31007 Circlip
    Circlip
  • 56
    503188997 Support wheel, 135/BK
    Support wheel, 135/BK
  • 57
    503189534 Insert
    Insert
  • 58
    31091 Shim
    Shim
  • 59
    535455 Rubber dampper
    Rubber dampper
  • 60
    5243099 R.H. Extension.
    R.H. Extension.
  • 60
    5243098 L.H. Extension
    L.H. Extension
  • 61
    548262 Track guard
    Track guard
  • 62
    5346739 Sleeve
    Sleeve
  • 63
    5445986 Axle, rear
    Axle, rear
  • 64
    5440377 Spring controller
    Spring controller
  • 65
    25004 Cop washer
    Cop washer
  • 66
    20011 Washer
    Washer
  • 67
    33004 Nut M10
    Nut M10
  • 68
    542105 Sleeve
    Sleeve
  • 69
    5444098 Sleeve
    Sleeve
  • 70
    546668 Sleeve
    Sleeve
  • 71
    40239 Screw M10x100
    Screw M10x100
  • 72
    503183300 Washer
    Washer
  • 73
    250000019 Locking screw M10x35
    Locking screw M10x35
  • 74
    293800060 Loctite 243
    Loctite 243
  • 75
    5343191 Sliding part
    Sliding part
  • 76
    40064 Locking screw M6x40
    Locking screw M6x40
  • 77
    40314 Screw M10x30
    Screw M10x30
  • 78
    503189411 Support wheel, 135/S
    Support wheel, 135/S
  • 79
    503189374 Support wheel, 165/S
    Support wheel, 165/S
