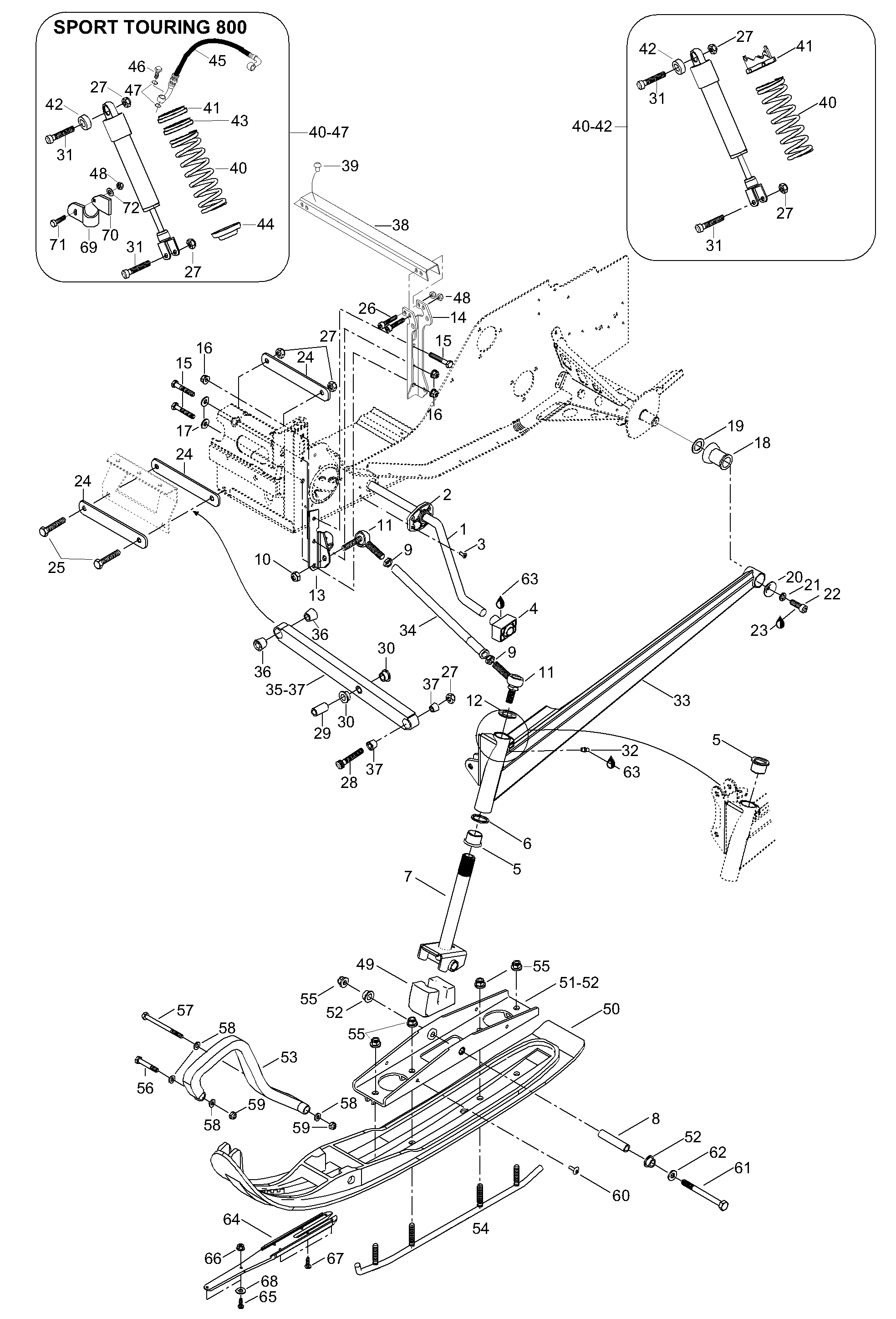

08- Front Suspension для BRP Lynx Super Touring 800 - 2002

  • №
    Артикул
    Название
  • 1
    5246797 Sway bar
    Sway bar
  • 2
    505070191 Sleeve
    Sleeve
  • 3
    36009 Rivet
    Rivet
  • 4
    505070117 Block-joint ball
    Block-joint ball
  • 5
    505070003 Bushing
    Bushing
  • 6
    505070004 Washer
    Washer
  • 7
    5245502 Ski leg
    Ski leg
  • 8
    506133300 Spacer
    Spacer
  • 9
    33048 Jam nut M12
    Jam nut M12
  • 10
    33087 Jam nut elastic M12
    Jam nut elastic M12
  • 11
    31092 Ball joint
    Ball joint
  • 12
    20074 Lock washer
    Lock washer
  • 13
    5348064 R.H. Upper arm bracket
    R.H. Upper arm bracket
  • 13
    5348063 L.H. Upper arm bracket
    L.H. Upper arm bracket
  • 14
    5245488 Shock bracket
    Shock bracket
  • 14
    5246395 Shock bracket
    Shock bracket
  • 15
    40010 Screw M8x55
    Screw M8x55
  • 16
    33201 Elastic flanged nut M8
    Elastic flanged nut M8
  • 17
    20104 Washer, hardened
    Washer, hardened
  • 18
    570062200 Damper
    Damper
  • 19
    503146700 Washer
    Washer
  • 20
    506079600 Cup
    Cup
  • 21
    20014 Spring washer
    Spring washer
  • 22
    40289 Allen screw M8x25
    Allen screw M8x25
  • 23
    293800060 Loctite 243, 10ml
    Loctite 243, 10ml
  • 24
    5346112 Support plate
    Support plate
  • 25
    40814 Screw M10x110
    Screw M10x110
  • 26
    40345 Allen screw M6x40
    Allen screw M6x40
  • 27
    33012 Nut elastic M10
    Nut elastic M10
  • 28
    40136 Allen screw M10x50
    Allen screw M10x50
  • 29
    5441433 Bushing
    Bushing
  • 30
    31088 Bearing
    Bearing
  • 31
    40837 Allen screw M10x55
    Allen screw M10x55
  • 32
    34011 Grease fitting
    Grease fitting
  • 33
    605248970 Swing arm, R.H. silver
    Swing arm, R.H. silver
  • 33
    605248969 Swing arm, L.H. silver
    Swing arm, L.H. silver
  • 34
    5346122 Upper arm
    Upper arm
  • 35
    5246679 Lower arm, silver. Includes items 35 thru 37
    Lower arm, silver. Includes items 35 thru 37
  • 36
    5447769 Inner sleeve
    Inner sleeve
  • 37
    5447770 Outer sleeve
    Outer sleeve
  • 38
    5347134 Bracket
    Bracket
  • 39
    28143 Rubber plug
    Rubber plug
  • 40
    23132 Shock LYNX. Includes items 40 thru 47
    Shock LYNX. Includes items 40 thru 47
  • 40
    230057 Spring
    Spring
  • 41
    230053 Adjusting ring
    Adjusting ring
  • 42
    230055 Rubber bushing
    Rubber bushing
  • 43
    230054 Guide spring
    Guide spring
  • 44
    230076 Guide spring
    Guide spring
  • 45
    230062 Hose
    Hose
  • 46
    415093810 Screw
    Screw
  • 47
    415038700 O-ring
    O-ring
  • 48
    33010 Nut elastic M6
    Nut elastic M6
  • 49
    570070400 Stopper-ski
    Stopper-ski
  • 50
    505070189 Ski liner
    Ski liner
  • 51
    505070055 Bridge assy. Includes items 51 thru 52
    Bridge assy. Includes items 51 thru 52
  • 52
    505070001 Sleeve
    Sleeve
  • 53
    572101000 Plastic handle
    Plastic handle
  • 54
    5347375 Runner pair
    Runner pair
  • 55
    33074 Elastic flange nut M10
    Elastic flange nut M10
  • 56
    40009 Screw M8x50
    Screw M8x50
  • 57
    40869 Screw M8x100
    Screw M8x100
  • 58
    20004 Washer
    Washer
  • 59
    33011 Nut elastic M8
    Nut elastic M8
  • 60
    390911100 Rivet
    Rivet
  • 61
    40814 Screw M10x110
    Screw M10x110
  • 62
    20105 Washer, hardened
    Washer, hardened
  • 63
    413711500 Synthetic grease
    Synthetic grease
  • 64
    505070232 Proactive control
    Proactive control
  • 65
    250000015 Allen screw M5x25
    Allen screw M5x25
  • 66
    33062 Elastic flanged nut M5
    Elastic flanged nut M5
  • 67
    40901 Screw
    Screw
  • 68
    20003 Washer
    Washer
  • 69
    5446702 Bracket
    Bracket
  • 70
    5448228 Bracket plate
    Bracket plate
  • 71
    40846 Locking screw M6x16
    Locking screw M6x16
  • 72
    20009 Washer
    Washer
