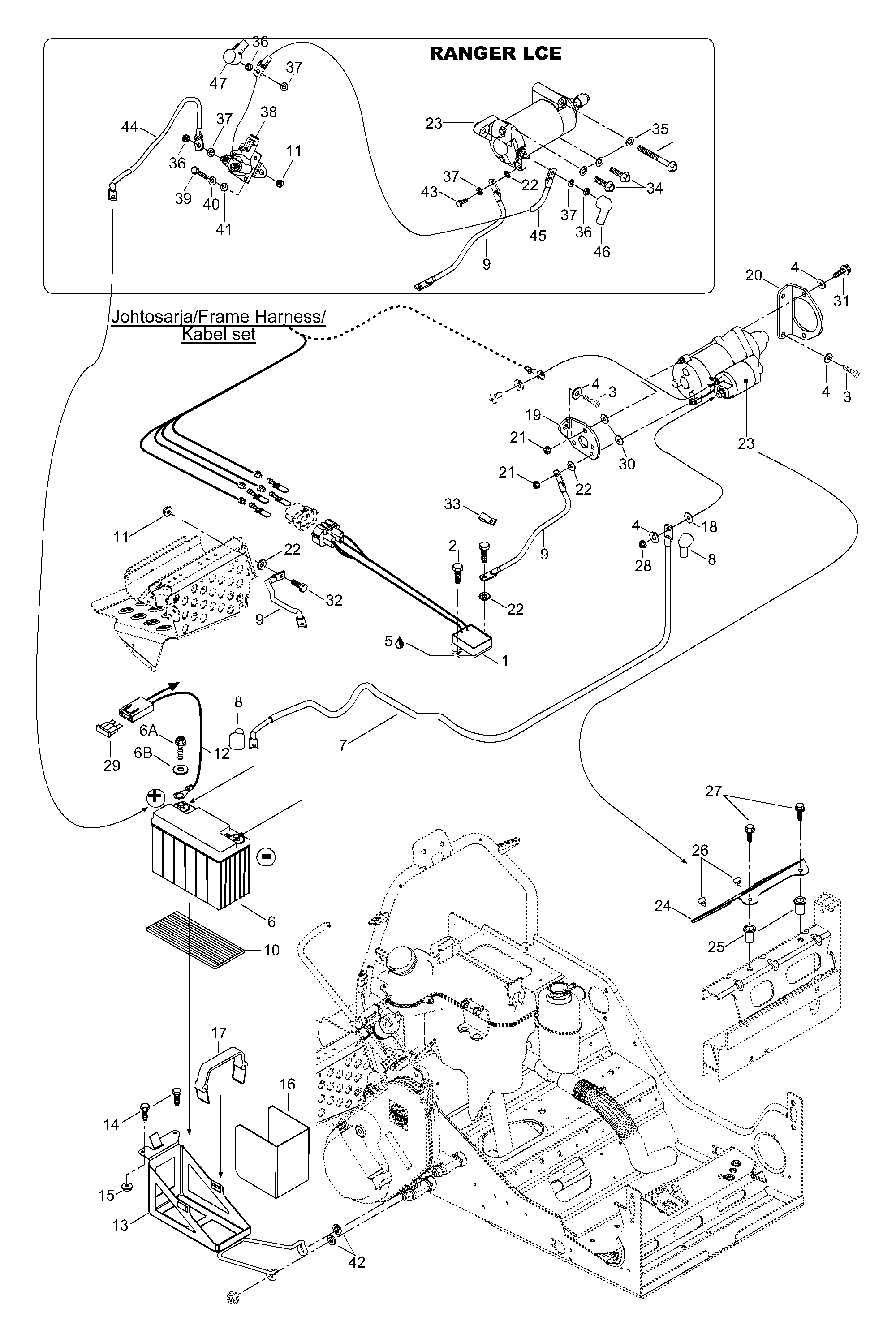

10- Electric Starter Kit для BRP Lynx Ranger LCE - 2002
-
№АртикулНазвание
-
1515175656 Voltage regulatorVoltage regulator
-
240322 Screw M6x16Screw M6x16
-
5413707500 Lithium-greaseLithium-grease
-
6b391302100 WasherWasher
-
6a207161644 Screw M6x16Screw M6x16
-
6515175642 BatteryBattery
-
8570151000 Cap protectionCap protection
-
9515175483 Ground wireGround wire
-
105347314 Rubber blanketRubber blanket
-
1133200 Elastic flanged nut M6Elastic flanged nut M6
-
125446894 Wire, fuse-batteryWire, fuse-battery
-
13515175625 Battery supportBattery support
-
1440247 Screw M5x16Screw M5x16
-
1533062 Elastic flanged nut M5Elastic flanged nut M5
-
16515175643 ProtectorProtector
-
17515175475 Battery strapBattery strap
-
2220017 WasherWasher
-
23515175562 StarterStarter
-
29410917200 Fuse 30 AFuse 30 A
-
3240029 Screw M6x16Screw M6x16
-
34207583044 Screw M8x30Screw M8x30
-
35250200008 WasherWasher
-
3633010 Nut elastic M6Nut elastic M6
-
3720003 WasherWasher
-
38278001641 Relay-starterRelay-starter
-
3940030 Screw M6x20Screw M6x20
-
4020052 Spring washerSpring washer
-
4120009 WasherWasher
-
4220005 WasherWasher
-
43207361644 Screw M6x16Screw M6x16
-
44515175555 Battery wireBattery wire
-
455448151 Battery wire, relay->starteBattery wire, relay->starte
-
46278000020 Cap protectionCap protection
-
47570064200 Cap protectionCap protection
