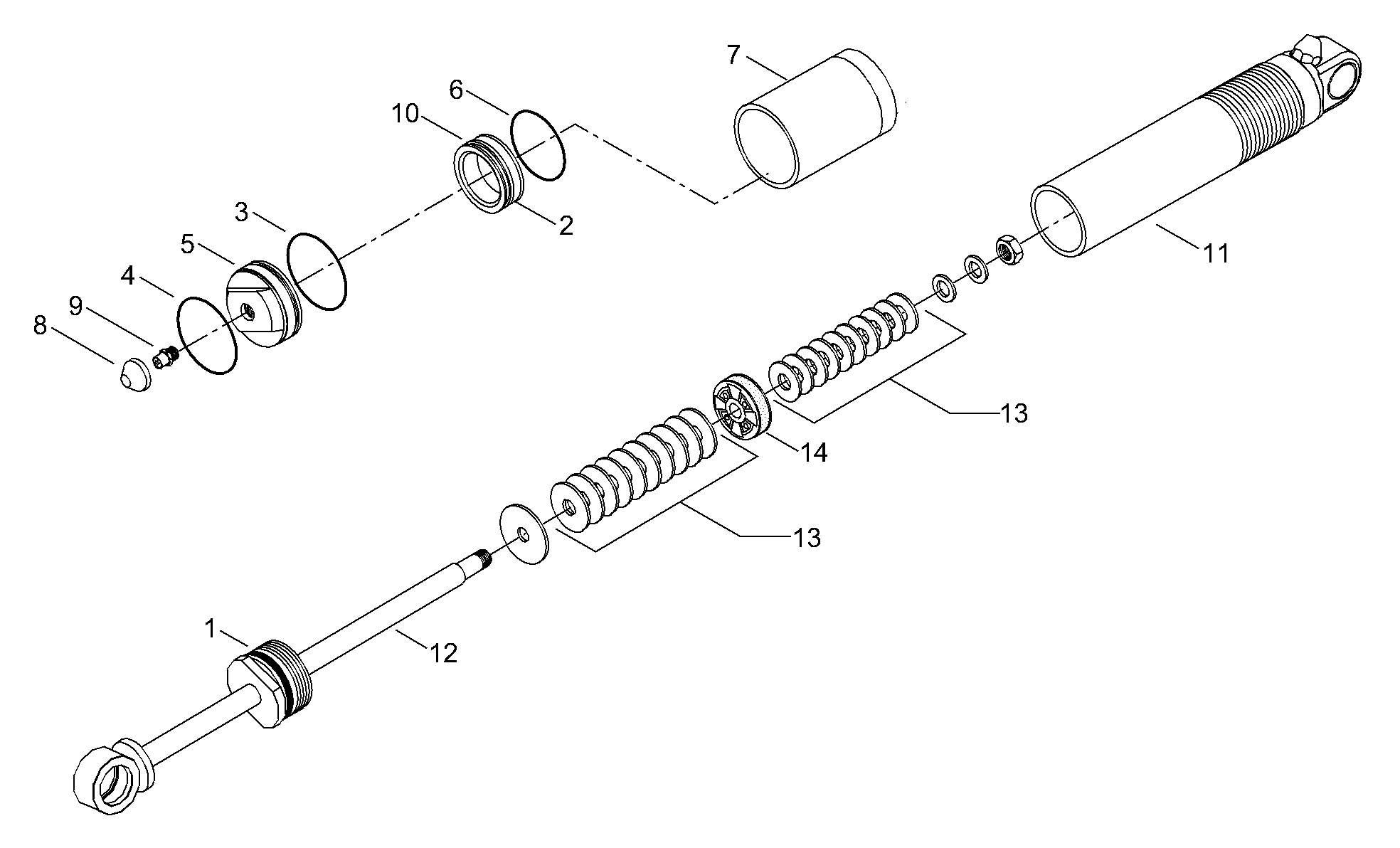

08- Front Suspension для BRP Lynx Racing - 2002

  • №
    Артикул
    Название
  • 23157 Shock. Includes items thru 1
    Shock. Includes items thru 1
  • 1
    415093819 Seal carrier assy
    Seal carrier assy
  • 2
    415093806 Piston ring
    Piston ring
  • 3
    415093804 O-ring
    O-ring
  • 4
    415093805 Stop ring
    Stop ring
  • 5
    415093808 Guide
    Guide
  • 6
    415093807 O-ring
    O-ring
  • 7
    415093809 Tank
    Tank
  • 8
    414888313 Valve cap
    Valve cap
  • 9
    414888314 Air valve
    Air valve
  • 10
    415093812 Free piston
    Free piston
  • 12
    230081 Rod assy
    Rod assy
  • 13
    415038800 Leaf valve 12x0.114
    Leaf valve 12x0.114
  • 13
    414888339 Leaf valve 12x0.152
    Leaf valve 12x0.152
  • 13
    414888338 Leaf valve 12x0.203
    Leaf valve 12x0.203
  • 13
    414888337 Leaf valve 15x0.114
    Leaf valve 15x0.114
  • 13
    414888336 Leaf valve 15x0.152
    Leaf valve 15x0.152
  • 13
    414888335 Leaf valve 15x0.203
    Leaf valve 15x0.203
  • 13
    414888334 Leaf valve 15x0.254
    Leaf valve 15x0.254
  • 13
    415038900 Leaf valve 16x0.114
    Leaf valve 16x0.114
  • 13
    414888333 Leaf valve 16x0.152
    Leaf valve 16x0.152
  • 13
    414888332 Leaf valve 16x0.203
    Leaf valve 16x0.203
  • 13
    414888331 Leaf valve 16x0.254
    Leaf valve 16x0.254
  • 13
    230015 Leaf valve 18x0.114
    Leaf valve 18x0.114
  • 13
    414888330 Leaf valve 18x0.152
    Leaf valve 18x0.152
  • 13
    414888329 Leaf valve 18x0.203
    Leaf valve 18x0.203
  • 13
    230016 Leaf valve 18x0.254
    Leaf valve 18x0.254
  • 13
    414888328 Leaf valve 20x0.114
    Leaf valve 20x0.114
  • 13
    414888327 Leaf valve 20x0.152
    Leaf valve 20x0.152
  • 13
    414888326 Leaf valve 20x0.203
    Leaf valve 20x0.203
  • 13
    230017 Leaf valve 20x0.254
    Leaf valve 20x0.254
  • 13
    230018 Leaf valve 22x0.114
    Leaf valve 22x0.114
  • 13
    414888325 Leaf valve 22x0.152
    Leaf valve 22x0.152
  • 13
    414888324 Leaf valve 22x0.203
    Leaf valve 22x0.203
  • 13
    230019 Leaf valve 22x0.254
    Leaf valve 22x0.254
  • 13
    230021 Leaf valve 24x0.114
    Leaf valve 24x0.114
  • 13
    230022 Leaf valve 24x0.152
    Leaf valve 24x0.152
  • 13
    230023 Leaf valve 24x0.203
    Leaf valve 24x0.203
  • 13
    230024 Leaf valve 26x0.114
    Leaf valve 26x0.114
  • 13
    414888322 Leaf valve 26x0.203
    Leaf valve 26x0.203
  • 13
    415039000 Leaf valve 26x0.254
    Leaf valve 26x0.254
  • 13
    230025 Leaf valve 28x0.114
    Leaf valve 28x0.114
  • 13
    414888321 Leaf valve 28x0.152
    Leaf valve 28x0.152
  • 13
    230026 Leaf valve 28x0.254
    Leaf valve 28x0.254
  • 13
    414888320 Leaf valve 28x0.203
    Leaf valve 28x0.203
  • 13
    414888319 Leaf valve 30x0.152
    Leaf valve 30x0.152
  • 13
    414888318 Leaf valve 30 x 0.203
    Leaf valve 30 x 0.203
  • 13
    415039100 Leaf valve 30x0.254
    Leaf valve 30x0.254
  • 14
    230027 Piston, 1 slits
    Piston, 1 slits
  • 14
    230028 Piston, 3 slits
    Piston, 3 slits
