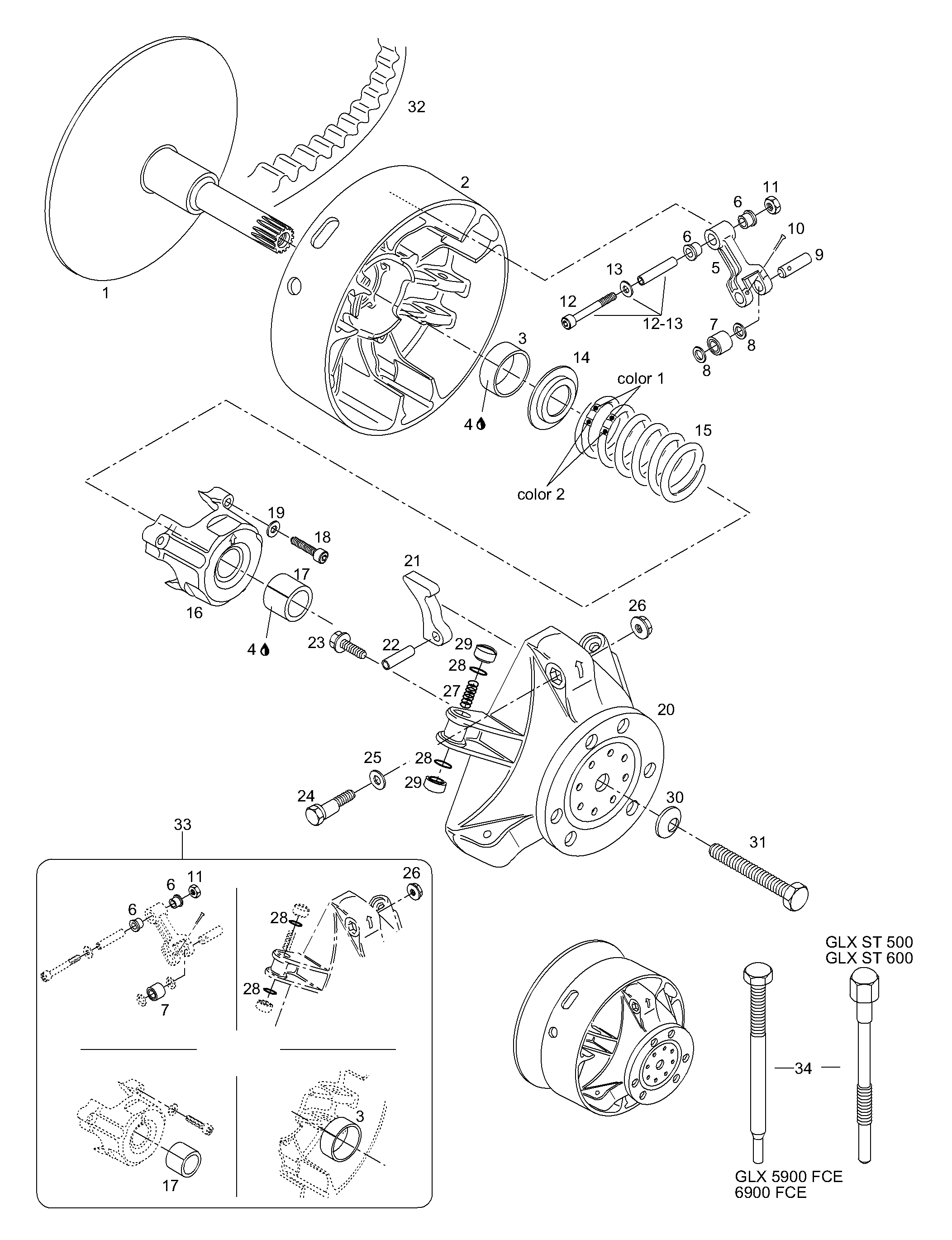

05- Clutch для BRP Lynx GLX ST 600 - 2002
-
№АртикулНазвание
-
1417222407 Fix flangeFix flange
-
2417222241 Sliding flange. Includes items 2 thru 3Sliding flange. Includes items 2 thru 3
-
3417004201 Bushing outer halfBushing outer half
-
4413703100 Loctite 609, 10ccLoctite 609, 10cc
-
5417222383 Lever assy. Includes items 5 thru 6Lever assy. Includes items 5 thru 6
-
6417004305 Flange bushingFlange bushing
-
7417003900 Roller assyRoller assy
-
8417004302 Thrust washerThrust washer
-
9417004308 PinPin
-
10732958001 Cotter pinCotter pin
-
1133010 Nut elastic M6Nut elastic M6
-
12417004800 Fitting screw assy. Includes items 12 thru 13Fitting screw assy. Includes items 12 thru 13
-
12205065044 Allen screw M6x50Allen screw M6x50
-
1320003 Flat washer 6mmFlat washer 6mm
-
14417222044 Spring seatSpring seat
-
15414689800 Spring red/redSpring red/red
-
16417222304 Spring cover assy. Includes items 16 thru 17Spring cover assy. Includes items 16 thru 17
-
17417004501 Spring cover bushingSpring cover bushing
-
18250000038 Allen screw M6x40Allen screw M6x40
-
19420245370 Friction washerFriction washer
-
20417222081 Gouvernor cup assyGouvernor cup assy
-
21417005290 Ramp 290Ramp 290
-
22732804009 Dowl tubeDowl tube
-
23210361890 Screw M6x18Screw M6x18
-
24417005500 Calibration screwCalibration screw
-
25417005600 WasherWasher
-
26233061414 Locking nut M6Locking nut M6
-
27417005700 SpringSpring
-
28732401030 O-RingO-Ring
-
29417005800 Shoe sliderShoe slider
-
3020110 Conical washer M12Conical washer M12
-
31417120000 ScrewScrew
-
32414633800 Drive beltDrive belt
-
33417006100 Clutch repair kitClutch repair kit
-
34529022400 Puller inner halfPuller inner half
