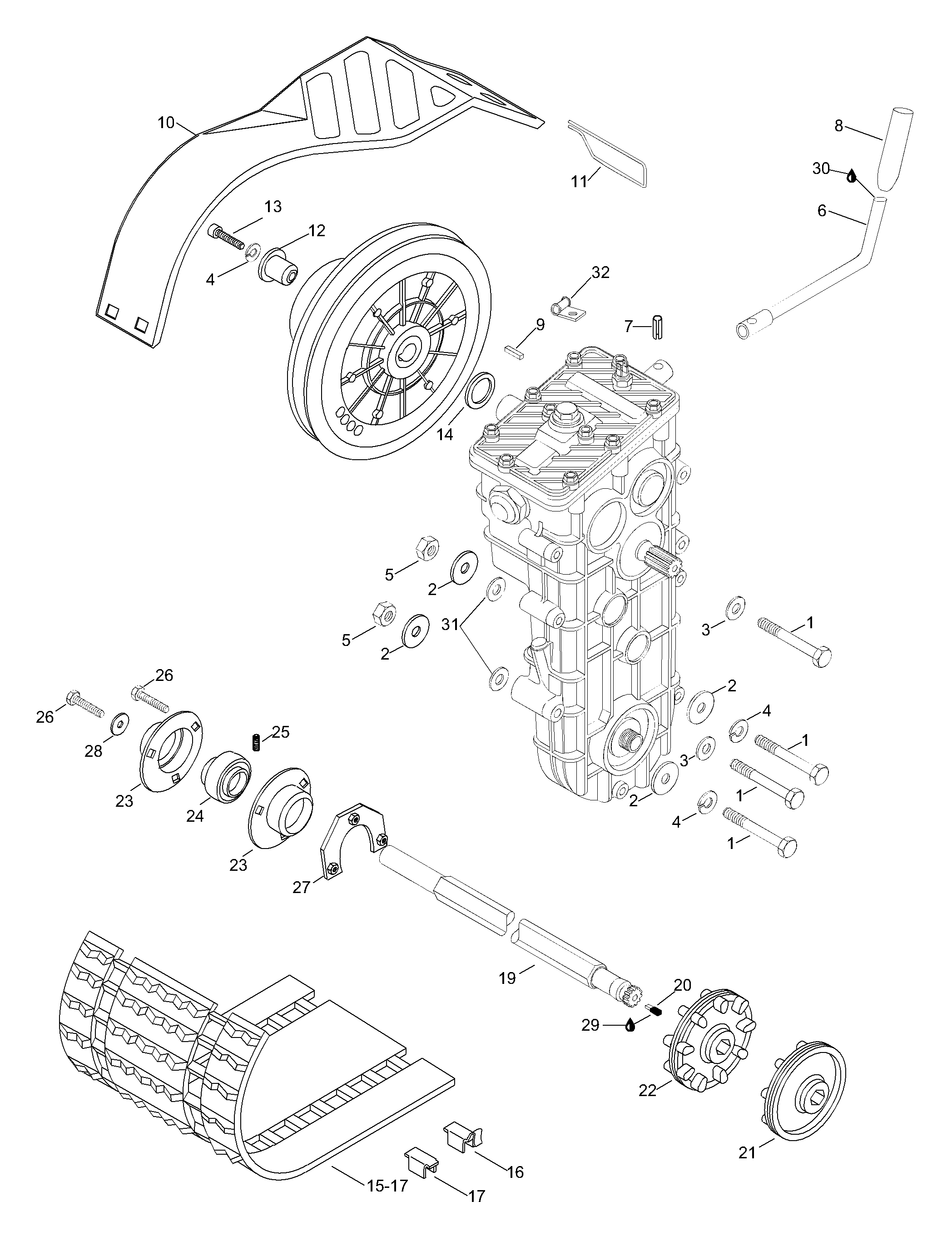

05- Drive Axle для BRP Lynx GLX ST 5000 - 2002

  • №
    Артикул
    Название
  • 1
    40012 Screw M8x80
    Screw M8x80
  • 2
    20010 Washer
    Washer
  • 3
    20004 Washer
    Washer
  • 4
    20014 Lock washer
    Lock washer
  • 5
    33011 Nut elastic M8
    Nut elastic M8
  • 6
    5340902 Shift handle
    Shift handle
  • 7
    41007 Spring key
    Spring key
  • 8
    28247 Button
    Button
  • 9
    418763 Key
    Key
  • 10
    5146001 Belt guard
    Belt guard
  • 11
    5442726 Pin
    Pin
  • 12
    5443201 Spacer
    Spacer
  • 13
    40286 Allen screw M8x45
    Allen screw M8x45
  • 15
    13055 Track. Includes items 15 thru 17
    Track. Includes items 15 thru 17
  • 16
    5318323 Cleat guide
    Cleat guide
  • 17
    5318322 Slide guide
    Slide guide
  • 18
    5345116 Drive axle assy. Includes items 18 thru 22
    Drive axle assy. Includes items 18 thru 22
  • 19
    5345117 Drive axle
    Drive axle
  • 20
    542013 Speedometer drive ins
    Speedometer drive ins
  • 21
    415067400 Sprocket 1:2
    Sprocket 1:2
  • 22
    414931800 Sprocket 1:1
    Sprocket 1:1
  • 23
    534430 Bearing housing set
    Bearing housing set
  • 24
    31UC205 Bearing
    Bearing
  • 25
    10531 Lock screw
    Lock screw
  • 26
    40336 Screw M8x20
    Screw M8x20
  • 27
    546421 Thrust ring
    Thrust ring
  • 28
    546336 Washer
    Washer
  • 29
    293800005 Loctite 271, 10ml
    Loctite 271, 10ml
  • 30
    293800060 Loctite 243
    Loctite 243
  • 31
    20077 Washer
    Washer
  • 32
    5443134 Clamp
    Clamp
