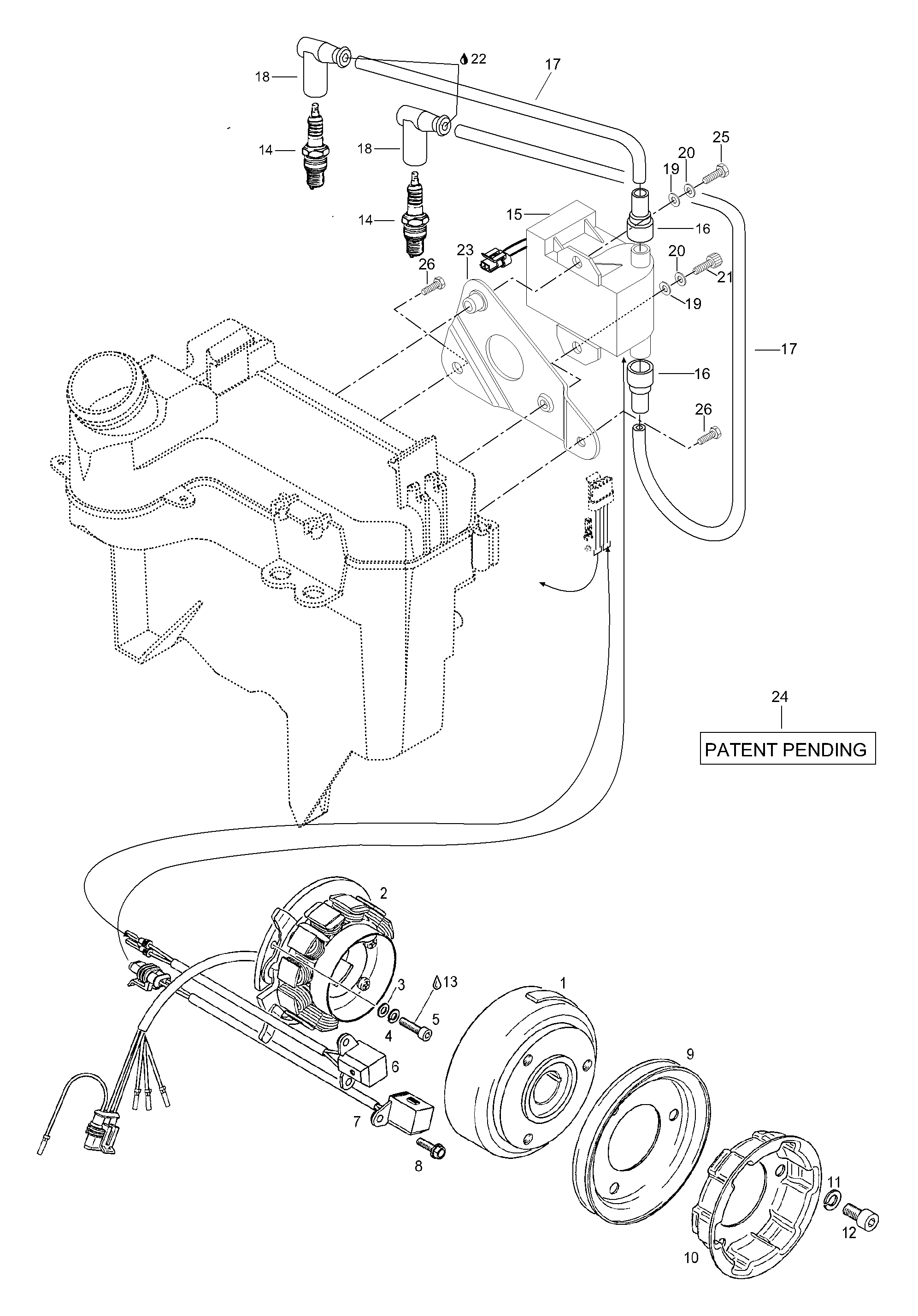

03- Fly Wheel для BRP Lynx Explorer 500 - 2002
-
№АртикулНазвание
-
1420889160 Magneto 12V/300W. Includes items 1 thru 2Magneto 12V/300W. Includes items 1 thru 2
-
1420889370 Fly wheelFly wheel
-
2420889360 Stator assyStator assy
-
3420927571 WasherWasher
-
420013 Sring washerSring washer
-
5420840515 Allen screw M5x18Allen screw M5x18
-
6420966548 Pick up assy for reversePick up assy for reverse
-
7420966546 Pick up assyPick up assy
-
8420941925 Taptite screw M5x16Taptite screw M5x16
-
9420980486 V-belt pulleyV-belt pulley
-
10420852414 Starting pulleyStarting pulley
-
11420845311 Lock washerLock washer
-
12420841521 Allen screw M8x12Allen screw M8x12
-
13420899785 Loct 221/viol/6cm3Loct 221/viol/6cm3
-
14414961100 Spark plug BR-9ESSpark plug BR-9ES
-
15512059519 Electronic box assyElectronic box assy
-
16515174900 Protection capProtection cap
-
17278001268 Ignition cableIgnition cable
-
18278000237 Spark plug connectorSpark plug connector
-
1920003 WasherWasher
-
2020052 Spring washerSpring washer
-
2140364 Allen screw M6x16Allen screw M6x16
-
22413711500 Synthetic greaseSynthetic grease
-
23512059494 BracketBracket
-
24418003000 Pending-labelPending-label
-
2540052 Screw M6x20Screw M6x20
-
26209561640 ScrewScrew
