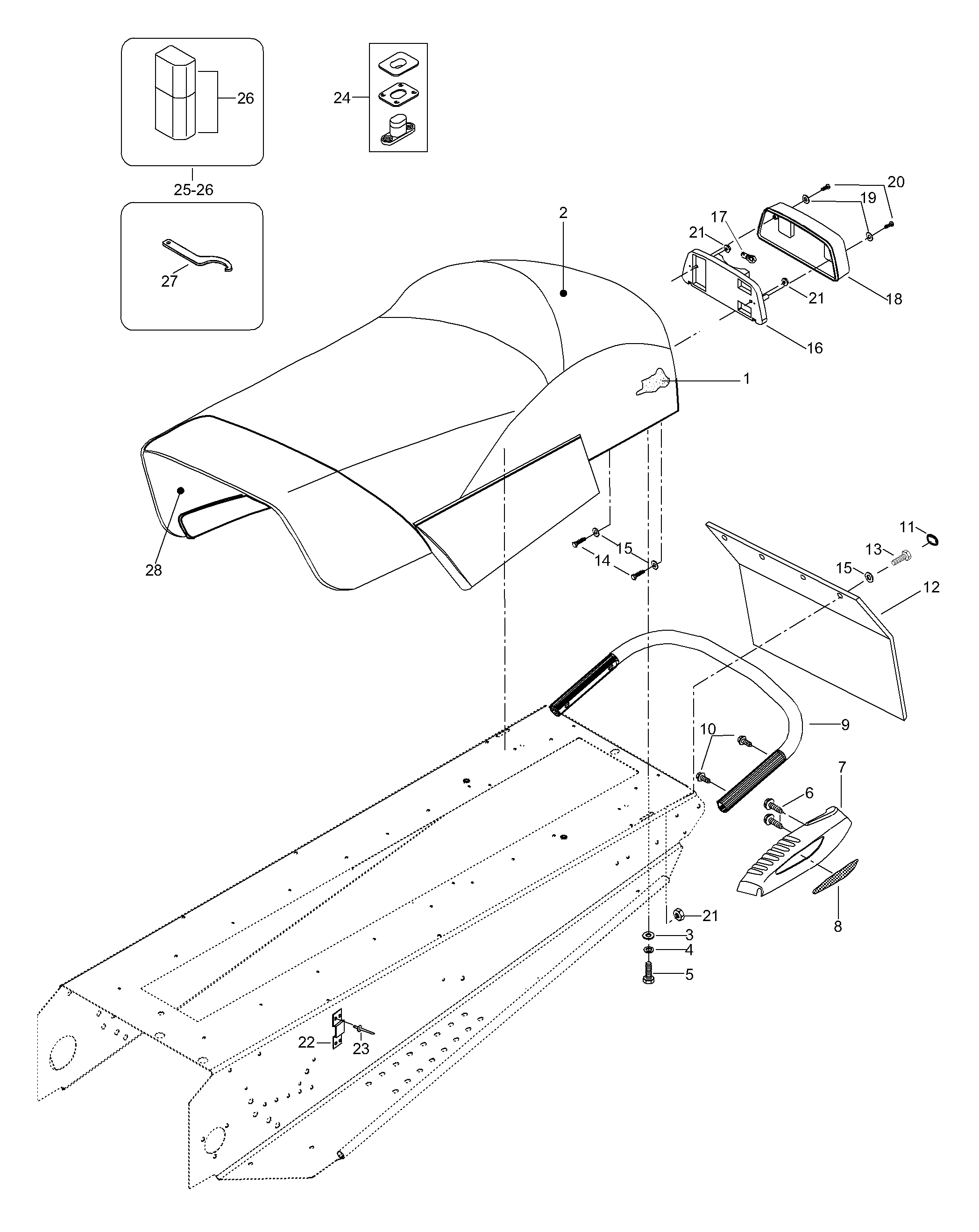

09- Body для BRP Lynx Enduro 600 Special/RER - 2002
-
№АртикулНазвание
-
15243866 Seat foamSeat foam
-
25147927 Seat coverSeat cover
-
320010 WasherWasher
-
420014 Lock washerLock washer
-
540015 Screw M8x30Screw M8x30
-
640870 Hex. tapping screwHex. tapping screw
-
7861777700 R.H. mouldingR.H. moulding
-
7861777800 L.H. mouldingL.H. moulding
-
8516000241 R.H. rear reflectorR.H. rear reflector
-
8516000242 L.H. rear reflectorL.H. rear reflector
-
95348193 Rear bumper, redRear bumper, red
-
9518322708 Rear bumper, bright (RERear bumper, bright (RE
-
1040336 Screw M8x20Screw M8x20
-
11415073300 CapCap
-
125246131 Snow guardSnow guard
-
1340078 Screw M6x22Screw M6x22
-
1440002 Screw M6x40Screw M6x40
-
1520009 WasherWasher
-
165341214 Taillamp assy. Includes items 16 thru 21Taillamp assy. Includes items 16 thru 21
-
16414979400 Taillamp housingTaillamp housing
-
17410504000 BulbBulb
-
18414513700 LensLens
-
19414516400 WasherWasher
-
2040613 ScrewScrew
-
2133200 Nut M6Nut M6
-
225447908 Seat fastening plateSeat fastening plate
-
2336489 RivetRivet
-
245444390 Seat BuckleSeat Buckle
-
255445403 Tool box with tools. Includes items 25 thru 26Tool box with tools. Includes items 25 thru 26
-
26572036310 Tool boxTool box
-
27529032900 Wrench adjustWrench adjust
-
285146815 Seat bottomSeat bottom
