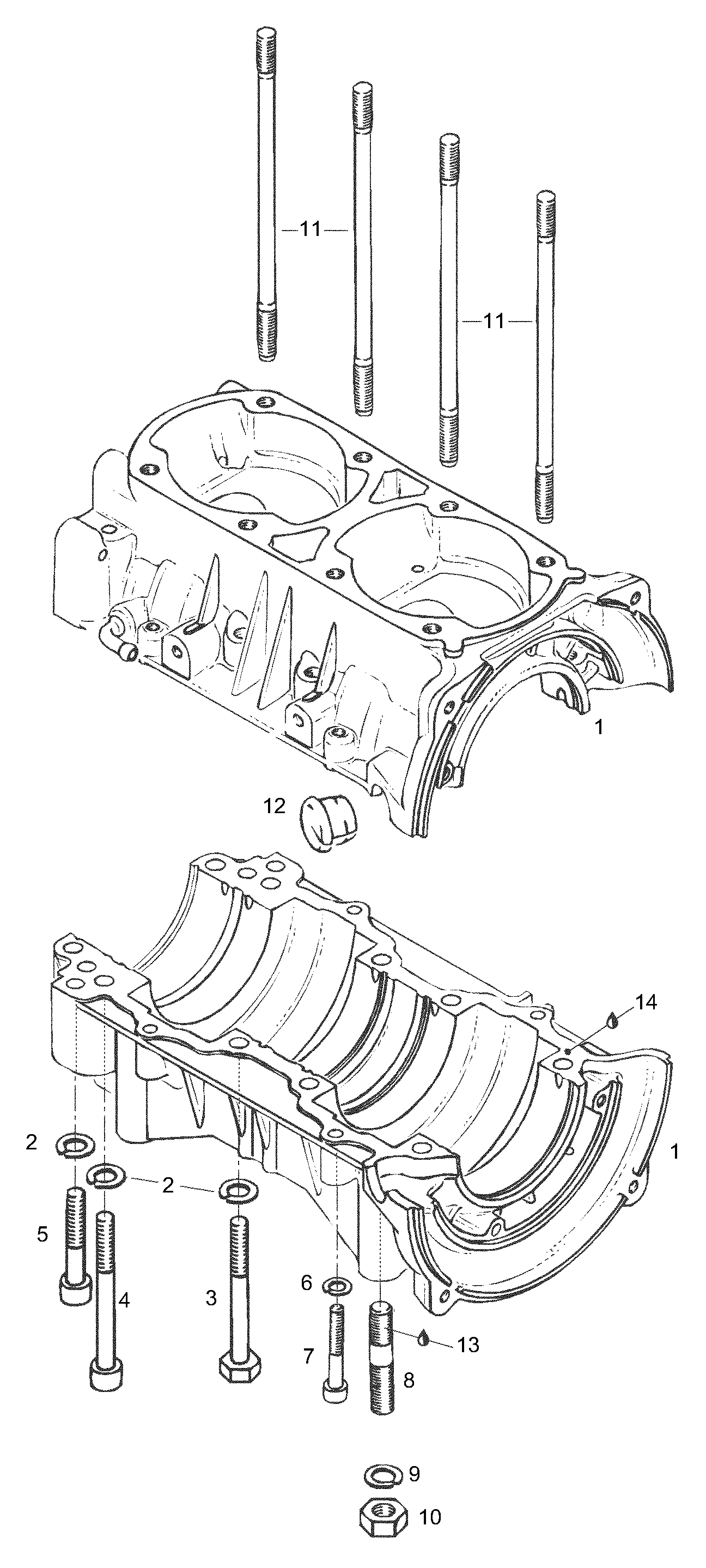

05- Crankcase для BRP Lynx Safari 400 - 2001

  • №
    Артикул
    Название
  • 1
    420887784 Crankcase. Includes items 1 thru 7
    Crankcase. Includes items 1 thru 7
  • 2
    20014 Spring washer
    Spring washer
  • 3
    420841201 Screw M8x70
    Screw M8x70
  • 4
    420841831 Allen screw M8x75
    Allen screw M8x75
  • 5
    420841566 Allen Screw M8x50
    Allen Screw M8x50
  • 6
    20052 Spring washer
    Spring washer
  • 7
    420241816 Allen Screw M6x40
    Allen Screw M6x40
  • 8
    420640140 Stud
    Stud
  • 9
    20015 Spring washer
    Spring washer
  • 10
    33004 Nut M10
    Nut M10
  • 11
    420841149 Stud
    Stud
  • 12
    420860962 Cable grommet
    Cable grommet
  • 13
    420899785 Loct 221/viol/6cm3
    Loct 221/viol/6cm3
  • 14
    420899784 Loct 574/orange/50
    Loct 574/orange/50
