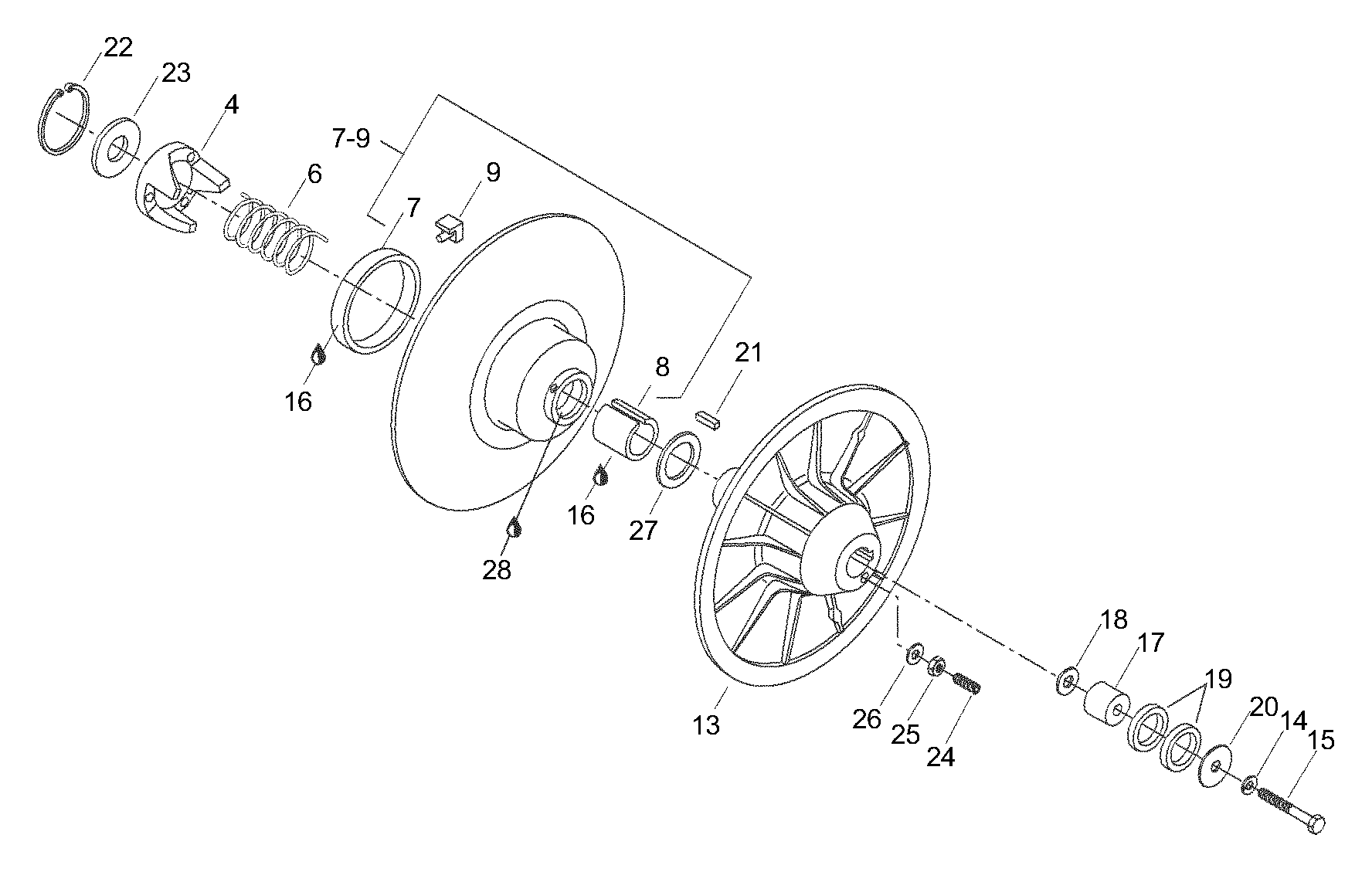

05- Driven Pulley для BRP Lynx Ranger LCE - 2001
-
№АртикулНазвание
-
4417126333 Cam 44Cam 44
-
6414558900 Spring, beigeSpring, beige
-
7417126487 Sliding pulley. Includes items 7 thru 9Sliding pulley. Includes items 7 thru 9
-
7414876600 BushingBushing
-
8415011200 BushingBushing
-
9414918000 Front cam shoe slideFront cam shoe slide
-
13417126476 Fixed flange assyFixed flange assy
-
1420014 Spring washerSpring washer
-
1540861 Screw M8x65Screw M8x65
-
16413703100 Loctite 609, 10mlLoctite 609, 10ml
-
17504091600 Countershaft extensionCountershaft extension
-
18224081201 WasherWasher
-
19504108200 ShimShim
-
20517078700 WasherWasher
-
21414820800 KeyKey
-
22371903100 CirclipCirclip
-
23504141800 WasherWasher
-
24206263044 ScrewScrew
-
25232061414 NutNut
-
26420245370 WasherWasher
-
27504141900 WasherWasher
-
28293800023 Loctite 767, 12ozLoctite 767, 12oz
