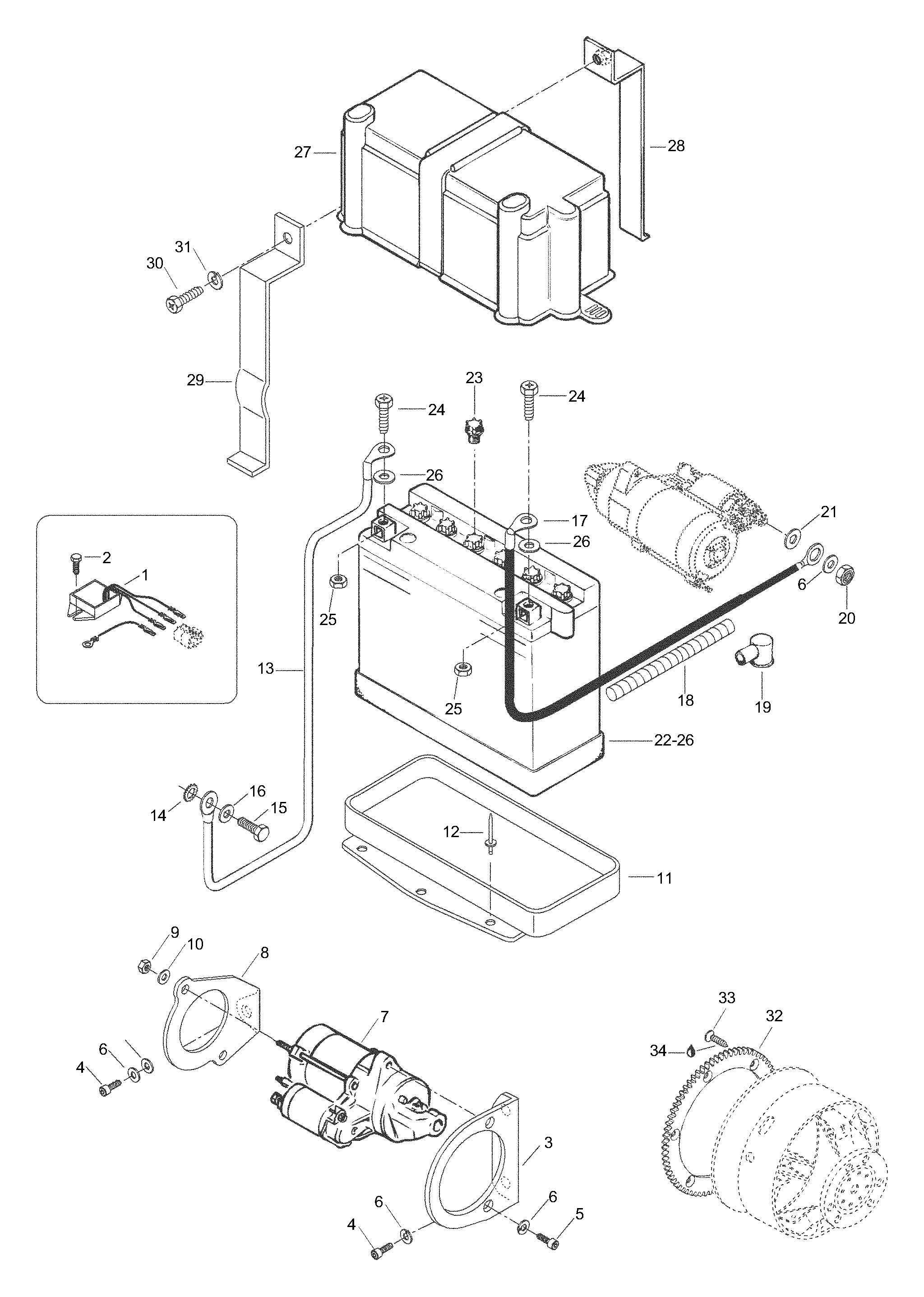

10- Electric Starter для BRP Lynx Explorer 500 - 2001
-
№АртикулНазвание
-
1515163900 Voltage regulatorVoltage regulator
-
240322 Screw M6x16Screw M6x16
-
3420951413 Starter bracket, PTO-sidStarter bracket, PTO-sid
-
440305 Allen screw M8x20Allen screw M8x20
-
540289 Allen screw M8x25Allen screw M8x25
-
620014 Spring washerSpring washer
-
7410212400 StarterStarter
-
8420951427 Starter bracket, MAG-siStarter bracket, MAG-si
-
933009 Nut elastic M5Nut elastic M5
-
10391301700 WasherWasher
-
11517286200 Battery seatBattery seat
-
1236489 RivetRivet
-
13515175425 Ground wireGround wire
-
1420033 Ext. Tooth lock washerExt. Tooth lock washer
-
1540029 Screw M6x16Screw M6x16
-
1620003 WasherWasher
-
17515175488 Battery wireBattery wire
-
1828012 Spiral tubeSpiral tube
-
19570151000 Cap protectionCap protection
-
2033006 Nut M8Nut M8
-
2120004 WasherWasher
-
22410301100 Battery. Includes items 22 thru 26Battery. Includes items 22 thru 26
-
23410300800 Battery capBattery cap
-
24207161644 Screw M6x16Screw M6x16
-
25232061414 Nut M6Nut M6
-
26391302100 WasherWasher
-
27570022000 Battery coverBattery cover
-
28517286000 Steel stripSteel strip
-
29517286100 Steel stripSteel strip
-
3040864 ScrewScrew
-
3120013 Spring washerSpring washer
-
32417009400 Ring gearRing gear
-
33236281684 ScrewScrew
-
34293800005 Loctite 271, 10mlLoctite 271, 10ml
