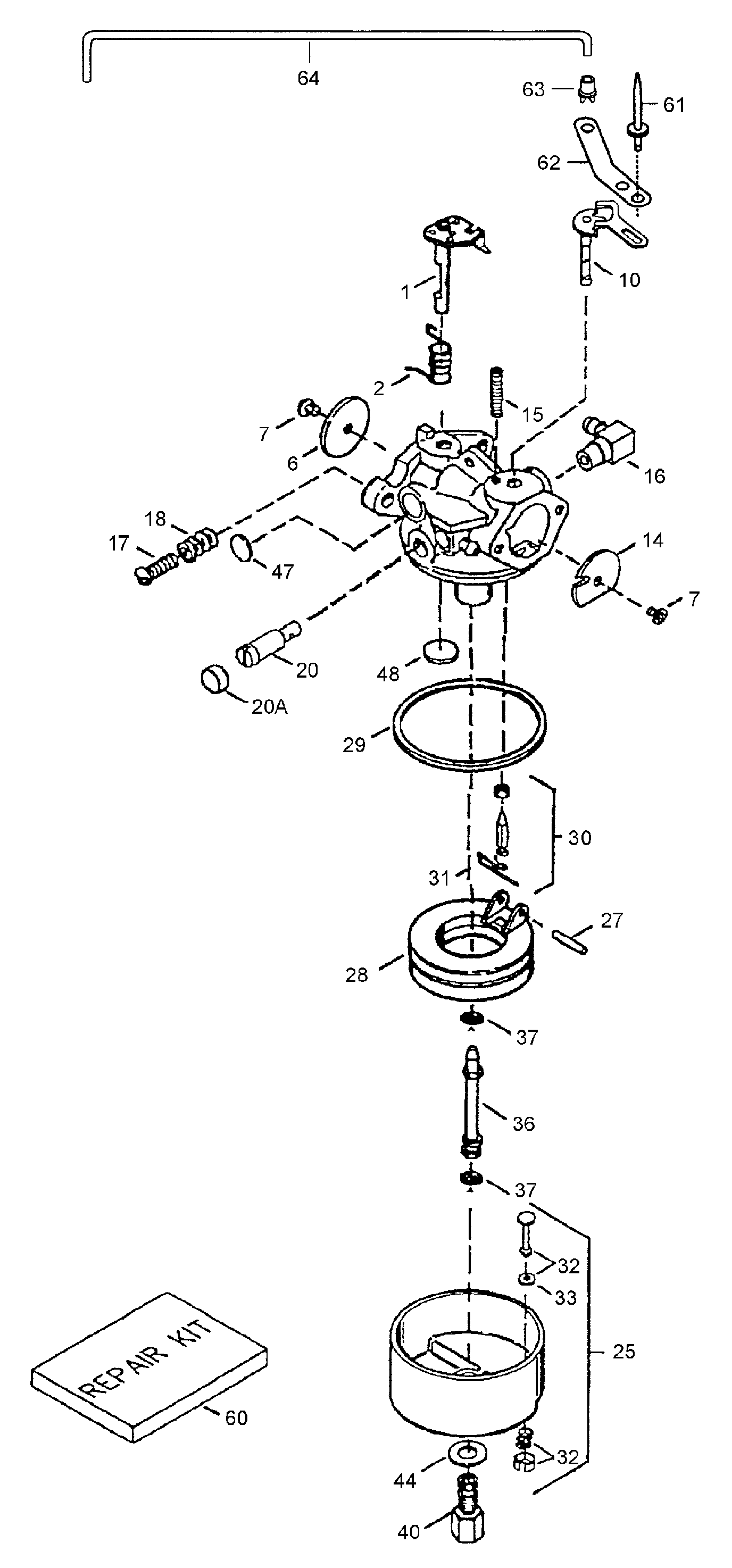

02- Carburetor для BRP Lynx Rave 150 - 2000

  • №
    Артикул
    Название
  • 1
    T640084A Carburetor (Incl. 184 of engine Parts list). Includes items 1 thru 44
    Carburetor (Incl. 184 of engine Parts list). Includes items 1 thru 44
  • 1
    T631615 Throttle Shaft
    Throttle Shaft
  • 2
    T631767 Throttle Return Spring
    Throttle Return Spring
  • 6
    T640070 Throttle Shutter
    Throttle Shutter
  • 7
    T650506 Shutter Screw
    Shutter Screw
  • 10
    T632108 Choke Shaft
    Choke Shaft
  • 14
    T631890 Choke Shutter
    Choke Shutter
  • 15
    T630735 Choke spring
    Choke spring
  • 16
    T631807 Fuel Fitting
    Fuel Fitting
  • 17
    T651025 Idle Speed Screw
    Idle Speed Screw
  • 18
    T630766 Tension Spring
    Tension Spring
  • 20
    T640018 Idle restrictor screw
    Idle restrictor screw
  • 20a
    T640053 Tension Spring
    Tension Spring
  • 25
    T631951 Float Bowl Ass’y.
    Float Bowl Ass’y.
  • 27
    T631024 Float Shaft
    Float Shaft
  • 28
    T632019 Float
    Float
  • 29
    T631028 Float Bowl ''0'' Ring
    Float Bowl ''0'' Ring
  • 30
    T631021 Needle valve
    Needle valve
  • 31
    T631022 Spring Clip
    Spring Clip
  • 32
    T27136A Bowl Drain Assemb.
    Bowl Drain Assemb.
  • 33
    T27554 Drain Plunger Gasket
    Drain Plunger Gasket
  • 36
    T632745 Main nozzle tube
    Main nozzle tube
  • 37
    T632547 O-Ring
    O-Ring
  • 40
    T640166 Bowl nut, high speed
    Bowl nut, high speed
  • 44
    T27110A Bowl Nut Washer
    Bowl Nut Washer
  • 47
    T630748 Welch Plug
    Welch Plug
  • 48
    T631027 Welch Plug
    Welch Plug
  • 60
    T632760 Repair kit. Includes parts : (7, 27, 29, 30, 33, 37, 47, 48)
    Repair kit. Includes parts : (7, 27, 29, 30, 33, 37, 47, 48)
  • 61
    36005 Rivet
    Rivet
  • 62
    5441825 Plate
    Plate
  • 63
    28415 Nipple
    Nipple
  • 64
    5441828 Shaft
    Shaft
