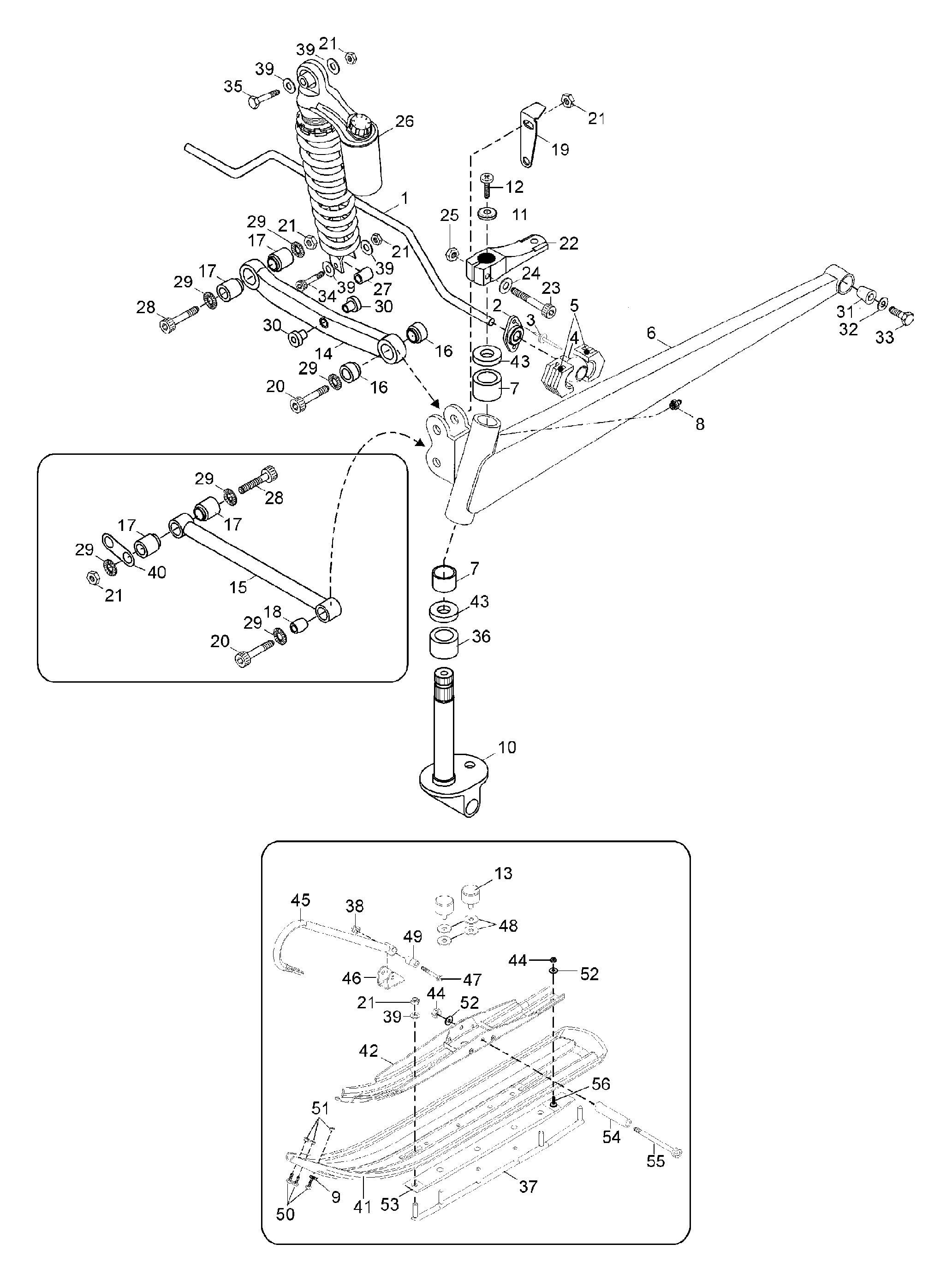

08- Front Suspension для BRP Lynx Racing - 2000

  • №
    Артикул
    Название
  • 1
    5241706 Sway bar
    Sway bar
  • 2
    5440458 Bearing
    Bearing
  • 3
    36036 Rivet
    Rivet
  • 4
    5440438 Ball joint
    Ball joint
  • 5
    572069800 Block sliding, half
    Block sliding, half
  • 6
    5243507 Swing arm, R.H. yellow
    Swing arm, R.H. yellow
  • 6
    5243508 Swing arm, L.H. yellow
    Swing arm, L.H. yellow
  • 7
    31048 Housing
    Housing
  • 8
    34011 Grease fitting
    Grease fitting
  • 9
    20003 Washer
    Washer
  • 10
    5244462 Ski leg
    Ski leg
  • 11
    5440849 Coned washer
    Coned washer
  • 12
    40842 Screw
    Screw
  • 13
    2848001 Bumper
    Bumper
  • 14
    5243524 Upper arm, yellow
    Upper arm, yellow
  • 15
    5342026 Lower arm, yellow
    Lower arm, yellow
  • 16
    5443670 Bushing, short
    Bushing, short
  • 17
    5443669 Bushing, long
    Bushing, long
  • 18
    5440183 Spacer
    Spacer
  • 19
    5443973 Limiter R.H.
    Limiter R.H.
  • 19
    5443972 Limiter L.H.
    Limiter L.H.
  • 20
    40852 Allen screw M10x55
    Allen screw M10x55
  • 21
    33012 Nut elastic M10
    Nut elastic M10
  • 22
    5343569 Reversing Arm
    Reversing Arm
  • 23
    40851 Allen screw M8x50
    Allen screw M8x50
  • 24
    20004 Washer
    Washer
  • 25
    33201 Nut elastic M8
    Nut elastic M8
  • 26
    23091 Shock LYNX
    Shock LYNX
  • 27
    5441433 Bushing
    Bushing
  • 28
    40884 Allen screw M10x70
    Allen screw M10x70
  • 29
    20105 Washer, hardened
    Washer, hardened
  • 30
    31088 Bearing
    Bearing
  • 31
    547543 Cone Rubber
    Cone Rubber
  • 32
    20028 Washer
    Washer
  • 33
    40039 Screw M10x20
    Screw M10x20
  • 34
    40837 Allen screw M10x55
    Allen screw M10x55
  • 35
    40020 Screw M10x65
    Screw M10x65
  • 36
    5443622 Sleeve
    Sleeve
  • 37
    5344019 Runner
    Runner
  • 38
    33011 Nut elastic M8
    Nut elastic M8
  • 39
    20005 Washer
    Washer
  • 40
    5445987 Plate
    Plate
  • 41
    5242167 Plastic surface black
    Plastic surface black
  • 42
    5243678 Frame of plastic ski
    Frame of plastic ski
  • 43
    31010 Support ring
    Support ring
  • 44
    33004 Nut M10
    Nut M10
  • 45
    5342168 Hand Bar Weld
    Hand Bar Weld
  • 46
    5442165 Fastening lug
    Fastening lug
  • 47
    40008 Screw M8x45
    Screw M8x45
  • 48
    20012 Washer
    Washer
  • 49
    5442175 Rubber sleeve
    Rubber sleeve
  • 50
    40821 Screw
    Screw
  • 51
    33010 Nut elastic M6
    Nut elastic M6
  • 52
    20047 Washer
    Washer
  • 53
    5343731 Plastic latch
    Plastic latch
  • 54
    5444463 Sleeve
    Sleeve
  • 55
    40348 Allen screw M10x100
    Allen screw M10x100
  • 56
    40857 Lock screw M10x30
    Lock screw M10x30
