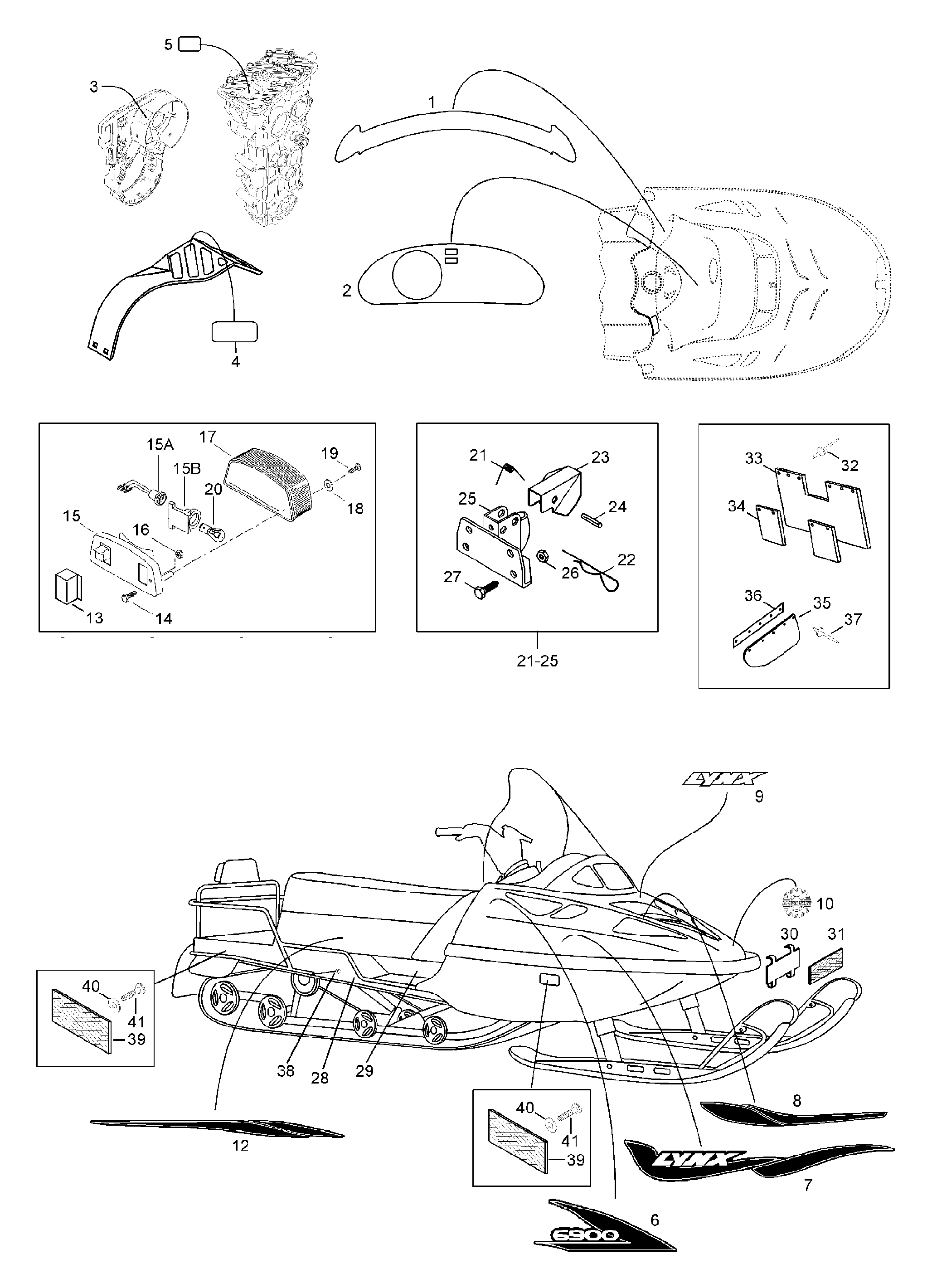

09- Equipment для BRP Lynx 6900 FCE - 2000

  • №
    Артикул
    Название
  • 5145829 Hood decal kit includes decals: 6, 7, 8 and 9
    Hood decal kit includes decals: 6, 7, 8 and 9
  • 5145730 Chassis decal kit includes decals: 12
    Chassis decal kit includes decals: 12
  • 1
    5343811 Instructio decal
    Instructio decal
  • 2
    5343810 Dash dacal
    Dash dacal
  • 3
    544073 Fanbelt decal
    Fanbelt decal
  • 4
    546820 Instructio decal
    Instructio decal
  • 5
    544068 Oil check decal
    Oil check decal
  • 6
    5345827 Decal, upper R.H.
    Decal, upper R.H.
  • 6
    5345828 Decal, Upper L.H.
    Decal, Upper L.H.
  • 7
    5345822 Hood decal R.H.
    Hood decal R.H.
  • 7
    5345823 Hood L.H.
    Hood L.H.
  • 8
    5345818 Decal upper L.H.
    Decal upper L.H.
  • 8
    5345819 Decal upper R.H.
    Decal upper R.H.
  • 9
    5345824 Decal front, LYNX
    Decal front, LYNX
  • 10
    516000282 Bombardier-decal
    Bombardier-decal
  • 12
    5345831 Decal chassis R.H.
    Decal chassis R.H.
  • 12
    5345832 vanst.Decal chassis L.H.
    vanst.Decal chassis L.H.
  • 13
    5443460 Cover
    Cover
  • 14
    40032 Screw M6x30
    Screw M6x30
  • 15
    5341214 Tail lamp assy. Includes items 15 thru 20
    Tail lamp assy. Includes items 15 thru 20
  • 15
    414979400 Tail lamp housing
    Tail lamp housing
  • 15a
    414979410 Socket
    Socket
  • 15b
    414979411 Rubber damper
    Rubber damper
  • 16
    33200 Nut
    Nut
  • 17
    414513700 Rear lens
    Rear lens
  • 18
    414516400 Washer
    Washer
  • 19
    40613 Screw
    Screw
  • 20
    410504000 Bulb tail lamp
    Bulb tail lamp
  • 21
    545693 Spring
    Spring
  • 21
    5344156 Draw hook ass’y. Includes items 21 thru 25
    Draw hook ass’y. Includes items 21 thru 25
  • 22
    41029 Pin
    Pin
  • 23
    5440767 Latch
    Latch
  • 24
    41012 Cotter
    Cotter
  • 25
    5344208 Draw hook
    Draw hook
  • 26
    33011 Nut elastic M8
    Nut elastic M8
  • 27
    40336 Screw M8x20
    Screw M8x20
  • 28
    5145415 Chassis FC
    Chassis FC
  • 29
    5445636 CE-decal
    CE-decal
  • 30
    5440839 Support
    Support
  • 31
    21060 Reflector white
    Reflector white
  • 32
    36037 Rivet
    Rivet
  • 33
    5340055 Snow quard
    Snow quard
  • 34
    5341770 Snow quard support
    Snow quard support
  • 35
    5340136 Snow quard
    Snow quard
  • 36
    5340532 Snowguard guide
    Snowguard guide
  • 37
    36005 Rivet
    Rivet
  • 38
    28136 Plug
    Plug
  • 39
    414510200 Reflector, yellow
    Reflector, yellow
  • 40
    20018 Washer
    Washer
  • 41
    40070 Screw M5x10
    Screw M5x10
