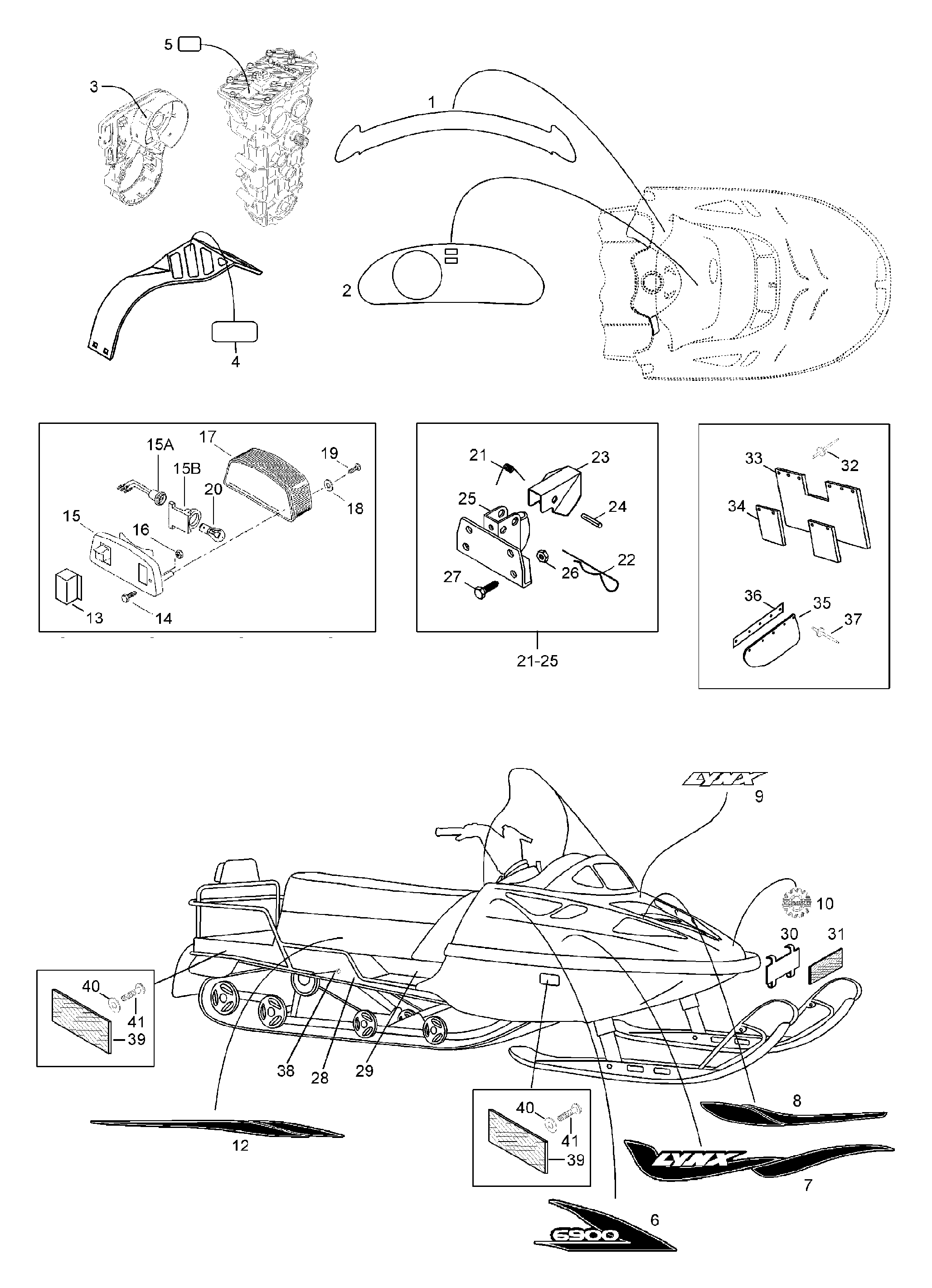

09- Equipment для BRP Lynx 5900 ST - 2000

  • №
    Артикул
    Название
  • 5145726 Chassis decal kit contains decals: 6 and 12
    Chassis decal kit contains decals: 6 and 12
  • 5145725 Decal assy hood contains decals: 7 and 9
    Decal assy hood contains decals: 7 and 9
  • 1
    5343811 Instruction decal
    Instruction decal
  • 2
    5344623 Dash decal
    Dash decal
  • 3
    5445636 CE-decal
    CE-decal
  • 4
    546820 Warning decal
    Warning decal
  • 5
    544068 Oil cheking decal
    Oil cheking decal
  • 6
    5345836 h.Swing Arm Decal R.H
    h.Swing Arm Decal R.H
  • 6
    5345835 Swing Arm Decal L.H
    Swing Arm Decal L.H
  • 7
    5345837 Hood decal R.H.
    Hood decal R.H.
  • 7
    5345838 Hood decal L.H.
    Hood decal L.H.
  • 8
    516000282 Decal Bombardier
    Decal Bombardier
  • 9
    5345839 Middle decal hood
    Middle decal hood
  • 10
    5345833 Decal chassis R.H.
    Decal chassis R.H.
  • 10
    5345834 Decal chassis L.H.
    Decal chassis L.H.
  • 11
    28032 Grommet
    Grommet
  • 12
    40070 Screw M5x10
    Screw M5x10
  • 13
    5345713 Adapter
    Adapter
  • 14
    40032 Screw M6x30
    Screw M6x30
  • 15
    5341214 Rear lamp assy. Includes items 15 thru 20
    Rear lamp assy. Includes items 15 thru 20
  • 15
    414979400 Tail lamp housing
    Tail lamp housing
  • 15a
    414979410 Socket
    Socket
  • 15b
    414979411 Rubber Damper
    Rubber Damper
  • 16
    33200 Nut M6
    Nut M6
  • 17
    414513700 Lens
    Lens
  • 18
    414516400 Washer
    Washer
  • 19
    40613 Screw
    Screw
  • 20
    410504000 Bulb tail lamp
    Bulb tail lamp
  • 21
    5344156 Hitch Assy. Includes items 21 thru 25
    Hitch Assy. Includes items 21 thru 25
  • 21
    545693 Spring
    Spring
  • 22
    41029 Pin
    Pin
  • 23
    5440767 Latch
    Latch
  • 24
    41012 Cotter
    Cotter
  • 25
    5344208 Bracket welded
    Bracket welded
  • 26
    33011 Nut elastic M8
    Nut elastic M8
  • 27
    40336 Screw M8x20
    Screw M8x20
  • 28
    28136 Plugg
    Plugg
  • 29
    414975300 R.H. rear footrest
    R.H. rear footrest
  • 29
    414975300 L.H. rear footrest
    L.H. rear footrest
  • 30
    5440839 Support
    Support
  • 31
    21060 Front reflector white
    Front reflector white
  • 32
    36036 Rivet
    Rivet
  • 33
    535437 Snow guard
    Snow guard
  • 34
    5144900 Chassis
    Chassis
  • 35
    40070 Screw M5x10
    Screw M5x10
  • 36
    414510200 Yellow reflector
    Yellow reflector
  • 37
    20018 Washer
    Washer
