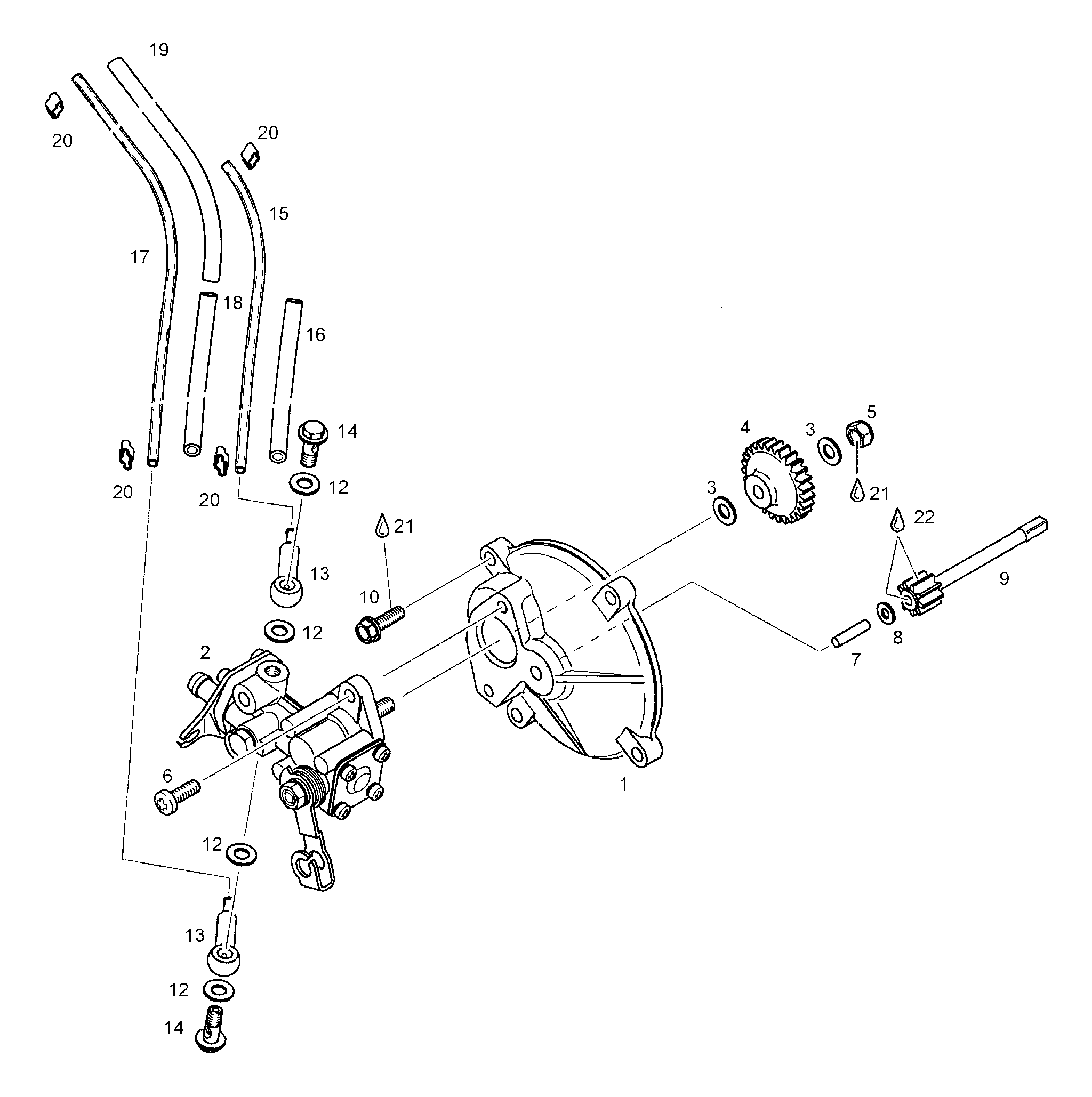

01- Oil Pump для BRP Lynx Light Touring LT - 1999
-
№АртикулНазвание
-
1420910160 Mounting flangeMounting flange
-
2420887990 Oil pump, assyOil pump, assy
-
3420927945 WasherWasher
-
4420935930 Gear, Z-27Gear, Z-27
-
5420842040 Lock nut M6Lock nut M6
-
6420841970 ScrewScrew
-
7420832260 PinPin
-
8420244073 WasherWasher
-
9420935970 Gear Z-9Gear Z-9
-
10420841970 Screw 5.5x16Screw 5.5x16
-
12420227500 Gasket ringGasket ring
-
13420956010 Chock valve assyChock valve assy
-
14420241830 Banjo boltBanjo bolt
-
15420960562 Oil line, 325 mmOil line, 325 mm
-
16420960750 Isolation hose, 90mmIsolation hose, 90mm
-
17420960564 Oil line, 380mmOil line, 380mm
-
18420960728 Isolation hose, 120mIsolation hose, 120m
-
19420960729 Isolation hose, 150mIsolation hose, 150m
-
20420853840 Clamp, 3-5 mmClamp, 3-5 mm
-
21420899785 Loctite 221/violetLoctite 221/violet
