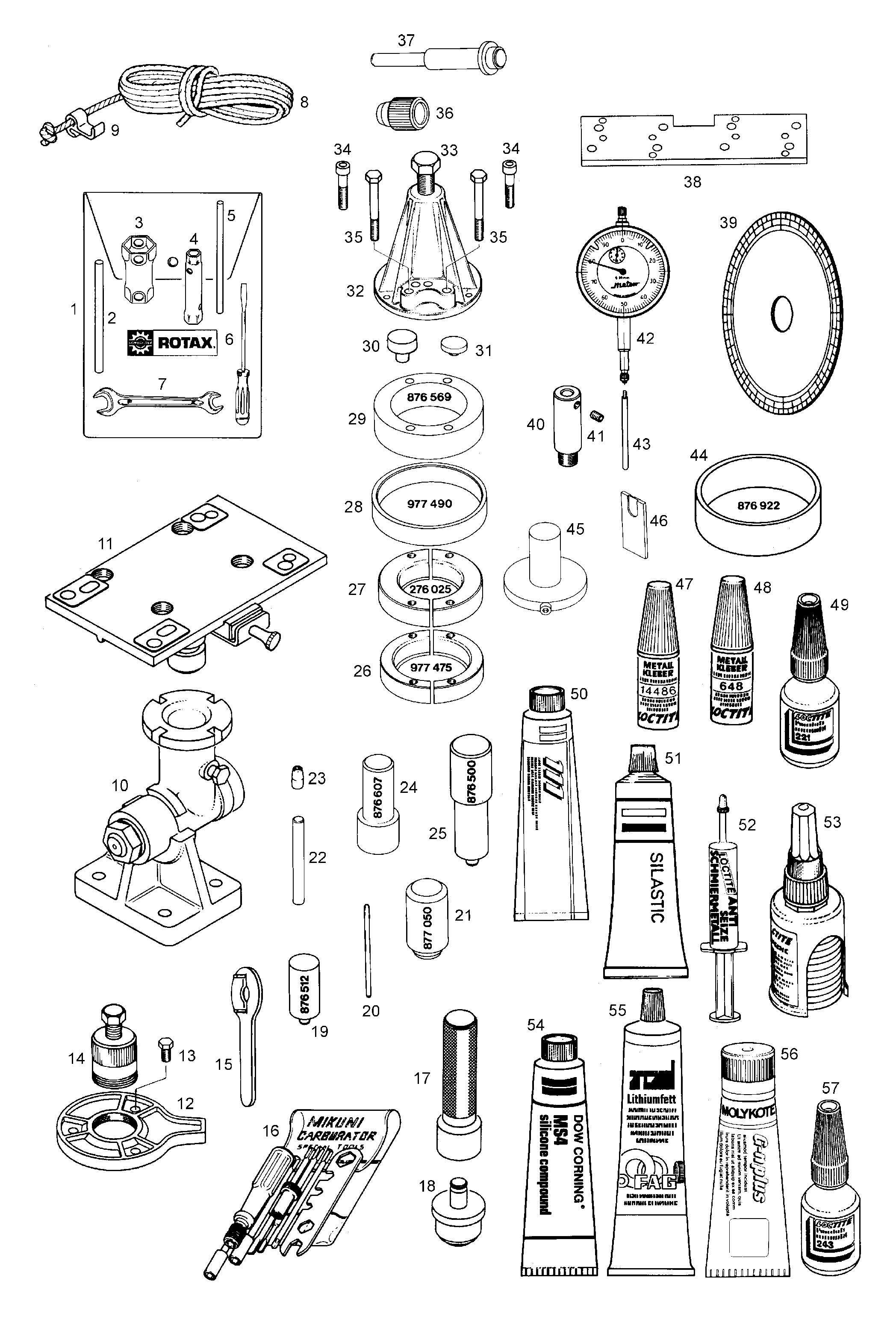

11- Tools для BRP Lynx Rave Big Pipe X - 1999
-
№АртикулНазвание
-
1420876639 Tool set. Includes items 1 thru 9Tool set. Includes items 1 thru 9
-
1420876197 Tool bagTool bag
-
2420977420 Bolt 8x130-10Bolt 8x130-10
-
3420876210 Sleeve 21/26mmSleeve 21/26mm
-
4420876227 Sleeve 10/13mmSleeve 10/13mm
-
5420977425 HandleHandle
-
6420876200 Screw driverScrew driver
-
7420276065 Key 10/13mmKey 10/13mm
-
8420852091 Starting ropeStarting rope
-
9420852340 AttachementAttachement
-
10420876740 Trestle assy. Includes items 10 thru 11Trestle assy. Includes items 10 thru 11
-
11420876746 Mounting plateMounting plate
-
12420876080 Holder plateHolder plate
-
13420940591 Hex.screw M8x20Hex.screw M8x20
-
14420876065 PullerPuller
-
15420277905 Wrench, oil pumpWrench, oil pump
-
16420876960 Tool set, MikuniTool set, Mikuni
-
17420877650 Handle for jigHandle for jig
-
18420876514 Insertion jigInsertion jig
-
19420876512 Insertion jigInsertion jig
-
20420876640 Crankshaft fixation boltCrankshaft fixation bolt
-
21420877050 Insertion jigInsertion jig
-
22420876612 Insertion jigInsertion jig
-
23420876980 Guide sleeve, oil sealGuide sleeve, oil seal
-
24420876607 Insertion jigInsertion jig
-
25420876500 Insertion jigInsertion jig
-
26420977475 Ring half, 6207Ring half, 6207
-
27420276025 Ring half, 6206Ring half, 6206
-
28420977490 RingRing
-
29420876569 ShimShim
-
30420876552 Cover, P.T.O. sideCover, P.T.O. side
-
31420876557 Cover, magn.sideCover, magn.side
-
32420876298 Puller. Includes items 32 thru 33Puller. Includes items 32 thru 33
-
33420940755 ScrewScrew
-
34420840681 Alen screwAlen screw
-
35420841201 Hex skrew M8x70Hex skrew M8x70
-
36420877016 Circlip installation tool. Includes items 36 thru 37Circlip installation tool. Includes items 36 thru 37
-
36420877021 Circlip installation sleeveCirclip installation sleeve
-
37420877011 Circlip installation pusherCirclip installation pusher
-
38420876904 Aligning toolAligning tool
-
39420277150 Degree diskDegree disk
-
40420876940 Gauge adapterGauge adapter
-
41420841771 ScrewScrew
-
42420876950 Precision dial gaugePrecision dial gauge
-
43420876945 Gauge pinGauge pin
-
44420876922 Centr. ring, magn.Centr. ring, magn.
-
45420877555 Insertion jig assy, springInsertion jig assy, spring
-
46420877530 Pick up adjusting devicePick up adjusting device
-
47420897340 Loctite 14486Loctite 14486
-
48420899788 Loctite 648, greenLoctite 648, green
-
49420899785 Loctite 221, violetLoctite 221, violet
-
50420897161 Molykote 111Molykote 111
-
51420297386 Silastic 732Silastic 732
-
52420297434 Loctite anti-seizeLoctite anti-seize
-
53420899784 Loctite 574Loctite 574
-
54420897061 Silicone com. greaseSilicone com. grease
-
55420897330 Lithium-base greaseLithium-base grease
-
56420297433 Molykote slide pasteMolykote slide paste
-
57420897651 Loctite 243 blue, 10ccLoctite 243 blue, 10cc
