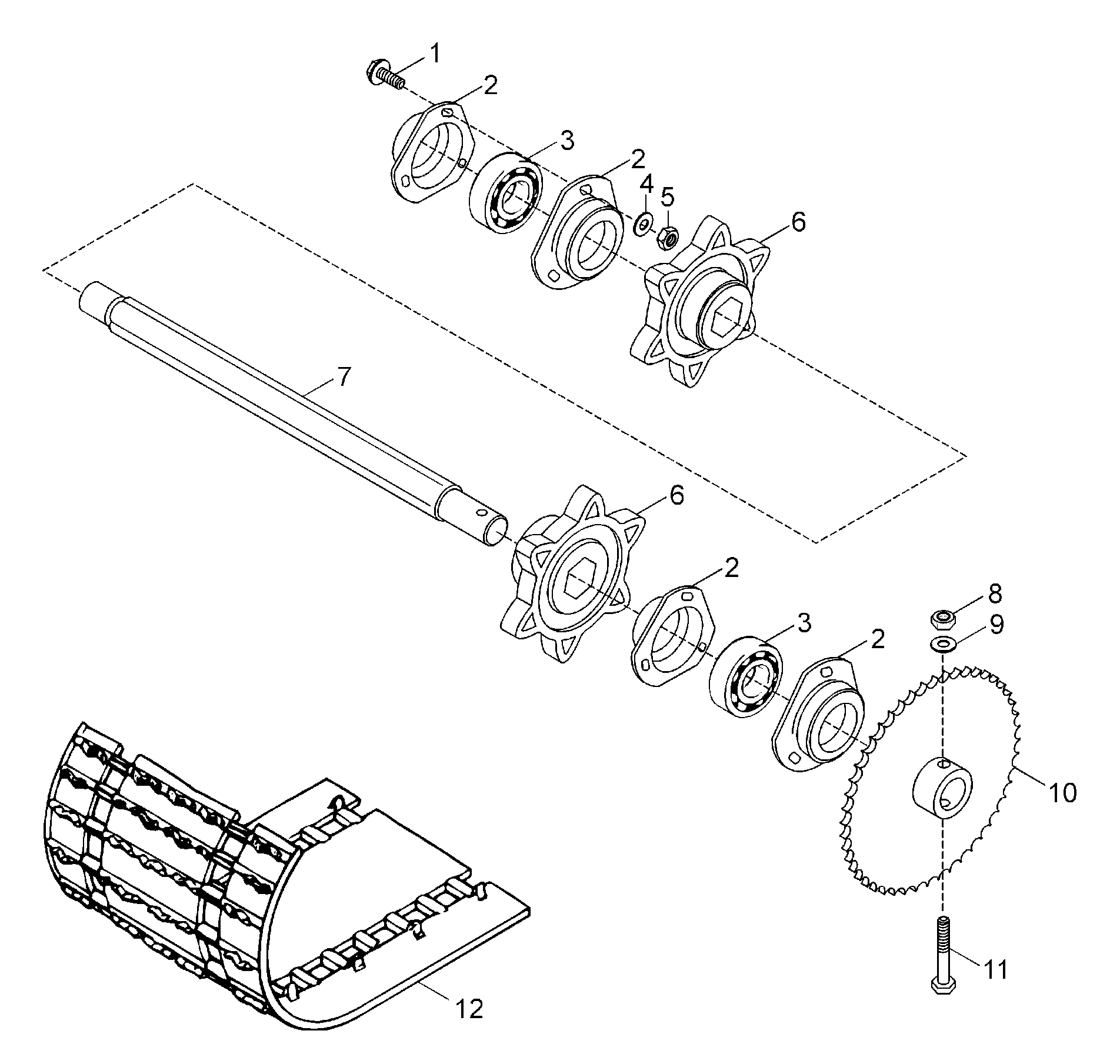

05- Drive Axle для BRP Lynx Rave 150 - 1999

  • №
    Артикул
    Название
  • 1
    40056 Screw M8x16
    Screw M8x16
  • 2
    534430 Housing Bearing
    Housing Bearing
  • 3
    31066 Bearing
    Bearing
  • 4
    20014 Washer
    Washer
  • 5
    33011 Nut elastic M8
    Nut elastic M8
  • 6
    5340179 Sprocket
    Sprocket
  • 7
    5340230 Drive axle
    Drive axle
  • 8
    33011 Nut elastic M8
    Nut elastic M8
  • 9
    20004 Washer
    Washer
  • 10
    5340231 48 Teeth sprocket
    48 Teeth sprocket
  • 11
    40010 Screw M8x55
    Screw M8x55
  • 12
    13051 Track
    Track
