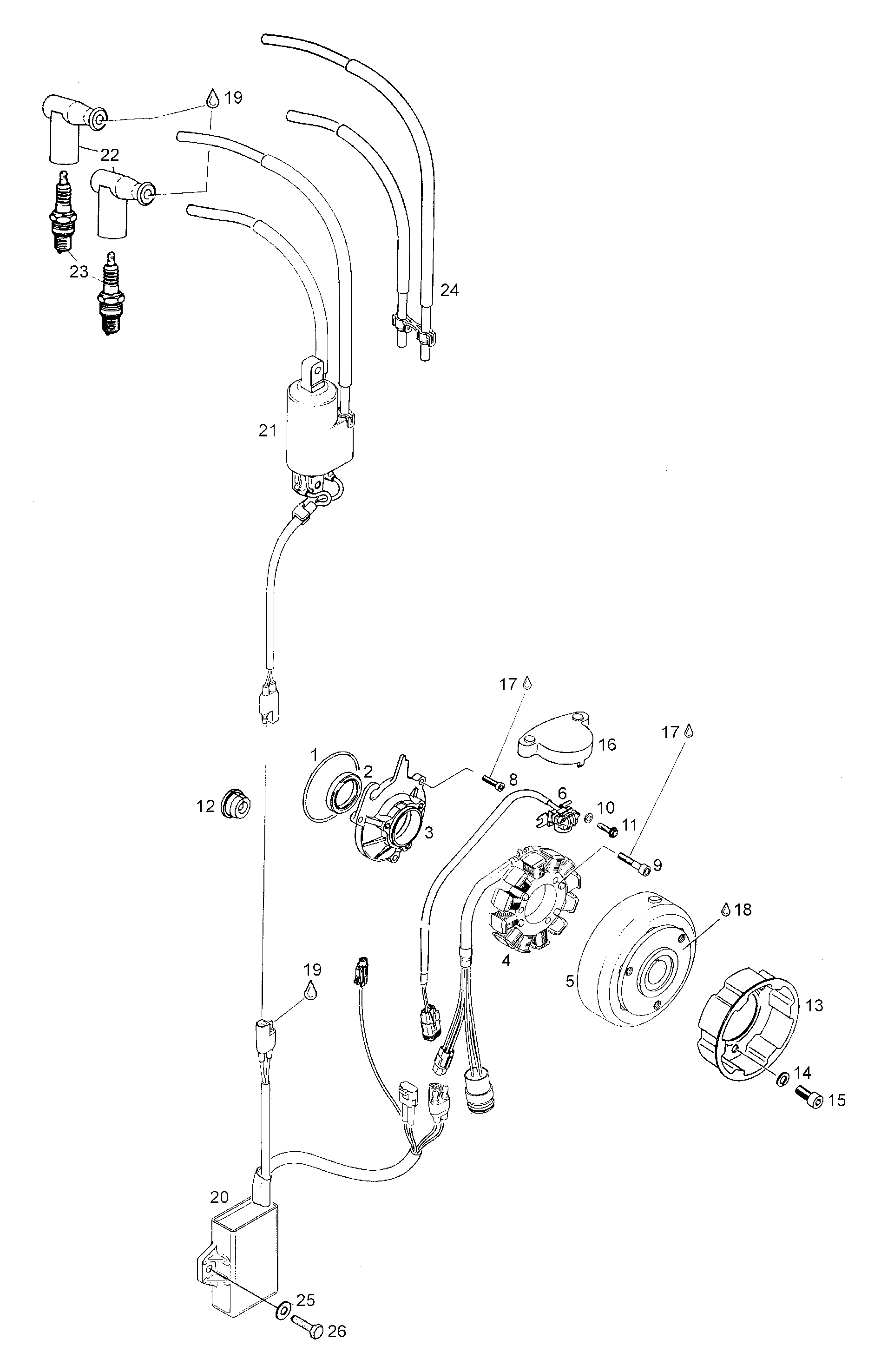

03- Fly Wheel для BRP Lynx G-Touring Royal - 1999
-
№АртикулНазвание
-
1420850430 O-ringO-ring
-
2420930695 Oil-sealOil-seal
-
3420810266 Armature plateArmature plate
-
4420888111 Magneto 12V/220W. Includes items 4 thru 6Magneto 12V/220W. Includes items 4 thru 6
-
4420886584 Stator assyStator assy
-
5420888325 Magneto flywheelMagneto flywheel
-
6420965642 Pick up assyPick up assy
-
8420941540 Allen screw M5x20Allen screw M5x20
-
9420840886 Allen screw M6x30Allen screw M6x30
-
1020002 WasherWasher
-
11420840511 Allenscrew M5x16Allenscrew M5x16
-
12420860965 Cable grommetCable grommet
-
13420852416 Starter cupStarter cup
-
1420014 Lock washerLock washer
-
15420841520 Allenscrew M8x12Allenscrew M8x12
-
16420810700 Pick up coverPick up cover
-
17420899785 Loctite 221/viol.Loctite 221/viol.
-
18420899788 Loctite 648/greenLoctite 648/green
-
19420897330 Lithium greaseLithium grease
-
20415085300 CDI-box RX494CDI-box RX494
-
21415085400 Ignition coil RX494Ignition coil RX494
-
22278000237 Spark plug protectorSpark plug protector
-
23414961100 Spark plug BR9Spark plug BR9
-
24420965033 Spark plug cableSpark plug cable
-
2520003 WasherWasher
-
2640031 Screw M6x25Screw M6x25
