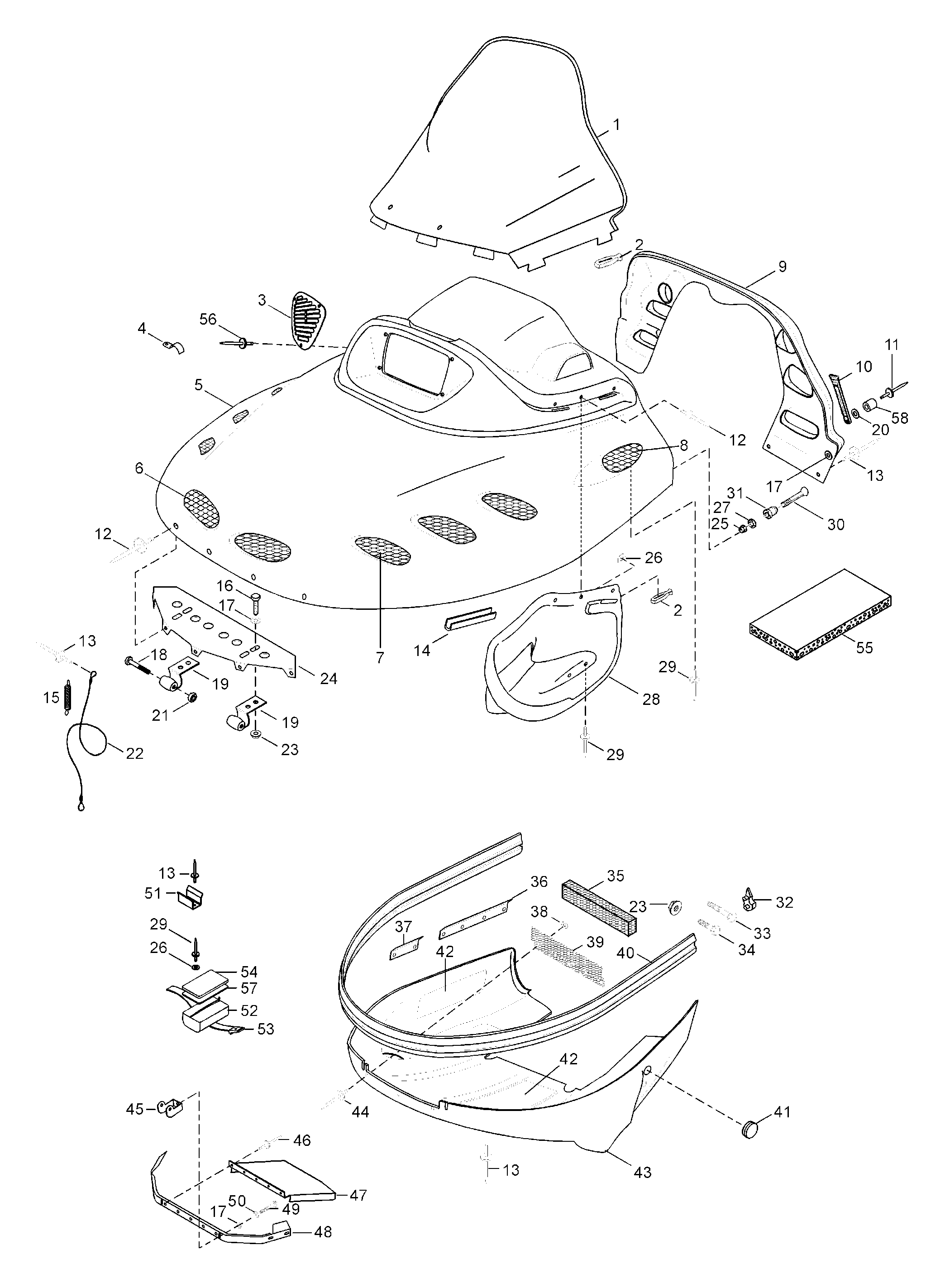

09- Hood для BRP Lynx Forest - 1999
-
№АртикулНазвание
-
15243735 Wind screenWind screen
-
2570023800 Wind screen fasteningWind screen fastening
-
35342956 Snow protectorSnow protector
-
4414227300 ClampClamp
-
55244391 Hood, w/o decalsHood, w/o decals
-
65344451 Grill, frontGrill, front
-
75344450 Side grill L.H.Side grill L.H.
-
75344452 Side grill R.H.Side grill R.H.
-
85344453 Snow protectorSnow protector
-
95342107 Rear hood, w/o decalsRear hood, w/o decals
-
10531955 Hood latchHood latch
-
1136072 RivetRivet
-
1236009 RivetRivet
-
1336036 RivetRivet
-
1439006 MuoltningMuoltning
-
1640030 Screw M6x20Screw M6x20
-
1720009 WasherWasher
-
1840235 Allen screw M5x35Allen screw M5x35
-
195440164 HingeHinge
-
20543392 WasherWasher
-
2133009 Nut elastic M5Nut elastic M5
-
225443781 Stop wireStop wire
-
2333200 Nut M6Nut M6
-
24529892 Fastening hingeFastening hinge
-
2533008 Nut elastic M4Nut elastic M4
-
2620008 WasherWasher
-
2720001 WasherWasher
-
28539955 Air covernorAir covernor
-
2936071 RivetRivet
-
3040168 Flush screw M4x25Flush screw M4x25
-
31542307 Counter rollerCounter roller
-
32549096R Plug R.H.Plug R.H.
-
32549096L Plug L.H.Plug L.H.
-
3340031 Screw M6x25Screw M6x25
-
3440030 Screw M6x20Screw M6x20
-
355341968 FilterFilter
-
36546852 GuideGuide
-
37542471 Guide shortGuide short
-
3820037 WasherWasher
-
395341949 GrillGrill
-
40529496 BumperBumper
-
41570277300 Rubber plugRubber plug
-
425444437 Heat protectorHeat protector
-
43529497 Bottom panBottom pan
-
4436002 RivetRivet
-
455440867 HingeHinge
-
4636083 RivetRivet
-
475341951 Air deflectorAir deflector
-
48539885 Hinge BumperHinge Bumper
-
4940029 Screw M6x16Screw M6x16
-
5020052 Lock washerLock washer
-
55414631900 Foam acoustic 74'’x34'Foam acoustic 74'’x34'
-
5636043 RivetRivet
-
58543417 SleeveSleeve
