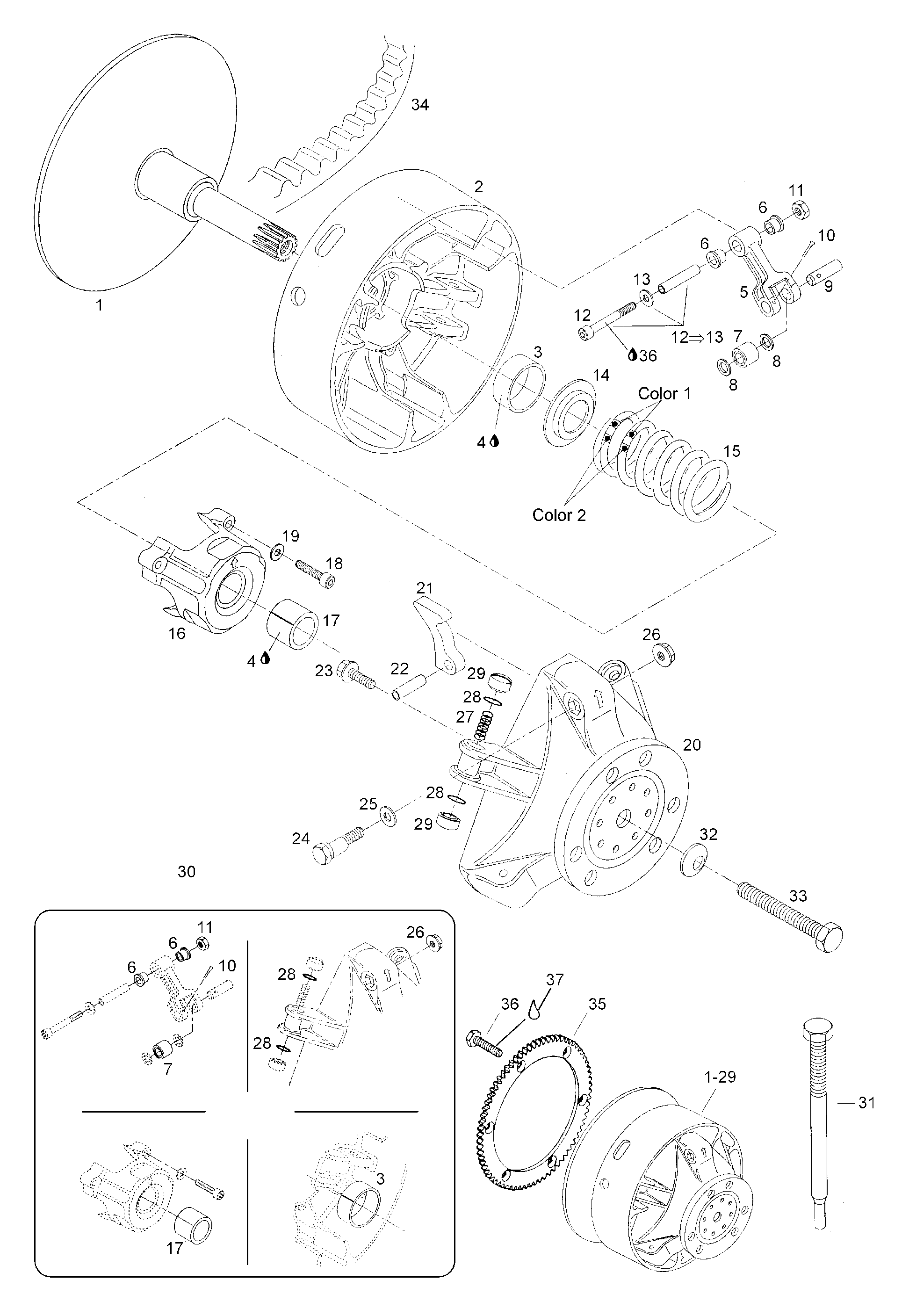

05- Clutch для BRP Lynx GLX 5900 FC/E - 1999

  • №
    Артикул
    Название
  • 1
    14248 Drive pulley assy. Includes items 1 thru 29; Ref. number 1-29 drive pulley assy includes ref. numbers 35 and 36
    Drive pulley assy. Includes items 1 thru 29; Ref. number 1-29 drive pulley assy includes ref. numbers 35 and 36
  • 1
    417222071 Inner half assy
    Inner half assy
  • 2
    417222049 Outer half assy. Includes items 2 thru 3
    Outer half assy. Includes items 2 thru 3
  • 3
    417004201 Bushing outer half
    Bushing outer half
  • 4
    413703100 Loctite 609, 10cc
    Loctite 609, 10cc
  • 5
    417003801 Lever assy. Includes items 5 thru 6
    Lever assy. Includes items 5 thru 6
  • 6
    417004305 Flange bushing
    Flange bushing
  • 7
    417003901 Roller assy
    Roller assy
  • 8
    417004302 Thrust washer
    Thrust washer
  • 9
    417004309 Pin
    Pin
  • 10
    732958001 Cotter pin
    Cotter pin
  • 11
    33010 Nut elastic M6
    Nut elastic M6
  • 12
    417004800 Fitting screw assy. Includes items 12 thru 13
    Fitting screw assy. Includes items 12 thru 13
  • 12
    222965065 Allen screw M6x50
    Allen screw M6x50
  • 13
    224061151 Flat washer 6mm
    Flat washer 6mm
  • 14
    417222044 Spring seat
    Spring seat
  • 15
    414689700 Spring Yellow/orang
    Spring Yellow/orang
  • 16
    417222157 Spring cover assy. Includes items 16 thru 17
    Spring cover assy. Includes items 16 thru 17
  • 17
    417004501 Spring cover bushing
    Spring cover bushing
  • 18
    222964066 Allen screw M6x40
    Allen screw M6x40
  • 19
    420245370 Friction washer
    Friction washer
  • 20
    417004700 Gouvernor cup assy
    Gouvernor cup assy
  • 21
    417005290 Ramp 290
    Ramp 290
  • 22
    732804009 Dowl tube M8x24
    Dowl tube M8x24
  • 23
    732601249 Screw M6x18
    Screw M6x18
  • 24
    417005500 Calibration screw
    Calibration screw
  • 25
    417005600 Washer
    Washer
  • 26
    228467045 Locking nut M6
    Locking nut M6
  • 27
    417005700 Spring
    Spring
  • 28
    732401030 O-Ring
    O-Ring
  • 29
    417005800 Shoe slider
    Shoe slider
  • 30
    417011008 Clutch repair kit
    Clutch repair kit
  • 31
    529007900 Puller inner half
    Puller inner half
  • 32
    732900026 Conical washer M12
    Conical washer M12
  • 33
    40800 Screw
    Screw
  • 34
    414633800 Drive belt
    Drive belt
  • 35
    415043100 Ring gear Z=86 (FCE
    Ring gear Z=86 (FCE
  • 36
    732601246 Screw M8x16 (FCE)
    Screw M8x16 (FCE)
  • 37
    413707400 Loctite 271, 10cc
    Loctite 271, 10cc
