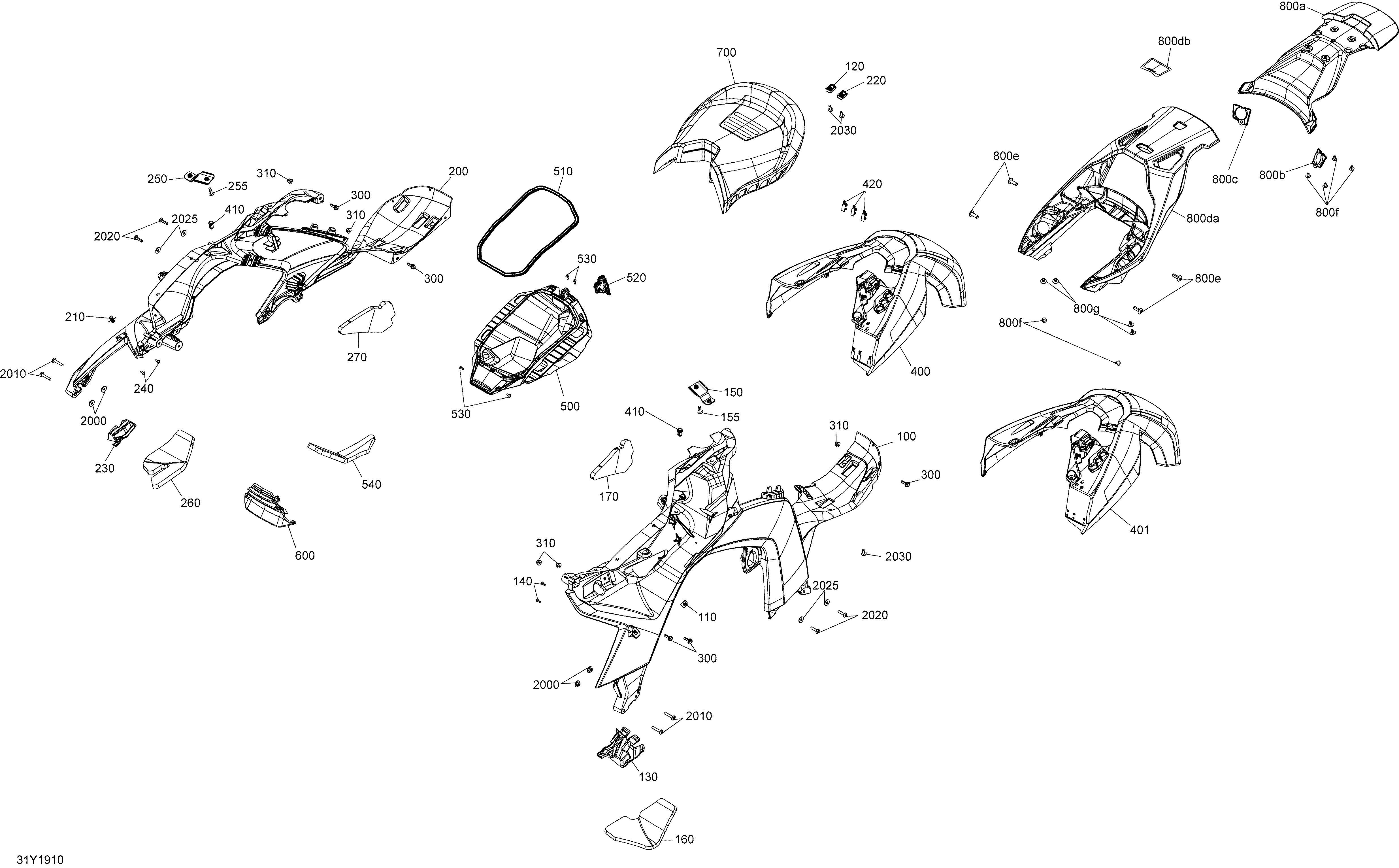

09- Body - Driver Seat / Upper Body Module для BRP 003 - RYKER Rally Edition 900 ACE - 2019

  • №
    Артикул
    Название
  • 100
    705205817 LH Upper Frame
    LH Upper Frame
  • 110
    293730080 Dart Clip
    Dart Clip
  • 120
    250100208 Panel Nut M6 X 1.0
    Panel Nut M6 X 1.0
  • 130
    705013415 LH Holder (support)
    LH Holder (support)
  • 140
    250000577 Torx Truss Screw K40 X 12
    Torx Truss Screw K40 X 12
  • 150
    705207855 Low Beam Support Assy. International
    Low Beam Support Assy. International
  • 155
    250000722 Torx Screw M6 X 20. International
    Torx Screw M6 X 20. International
  • 160
    705013944 Acoustic Foam Upper Front LH. Engine 900 ACE
    Acoustic Foam Upper Front LH. Engine 900 ACE
  • 170
    705013946 Acoustic Foam Upper Rear LH. Engine 900 ACE
    Acoustic Foam Upper Rear LH. Engine 900 ACE
  • 200
    705205818 RH Upper Frame
    RH Upper Frame
  • 210
    293730080 Dart Clip
    Dart Clip
  • 220
    250100208 Panel Nut M6 X 1.0
    Panel Nut M6 X 1.0
  • 230
    705013416 RH Holder (support)
    RH Holder (support)
  • 240
    250000577 Torx Truss Screw K40 X 12
    Torx Truss Screw K40 X 12
  • 250
    705207855 Low Beam Support Assy. International
    Low Beam Support Assy. International
  • 255
    250000722 Torx Screw M6 X 20. International
    Torx Screw M6 X 20. International
  • 260
    705013945 Acoustic Foam Upper Front RH. Engine 900 ACE
    Acoustic Foam Upper Front RH. Engine 900 ACE
  • 270
    705013947 Acoustic Foam Upper Rear RH. Engine 900 ACE
    Acoustic Foam Upper Rear RH. Engine 900 ACE
  • 300
    207662054 Hex. Flanged Screw M6 X 20
    Hex. Flanged Screw M6 X 20
  • 310
    233261466 Hex. Flanged Elastic Nut M6
    Hex. Flanged Elastic Nut M6
  • 400
    705010726 Tank Cover, B-160 Deep Black. Canada/USA
    Tank Cover, B-160 Deep Black. Canada/USA
  • 401
    705013589 Tank Cover, B-160 Deep Black. International
    Tank Cover, B-160 Deep Black. International
  • 410
    293150230 Tuflok Plastic Rivet
    Tuflok Plastic Rivet
  • 420
    515178223 Clip Connector
    Clip Connector
  • 500
    705205819 Storage Compartment Front
    Storage Compartment Front
  • 510
    708200794 Neoprene Seal Joint
    Neoprene Seal Joint
  • 520
    705007380 Push Latch
    Push Latch
  • 530
    250000577 Torx Truss Screw K40 X 12
    Torx Truss Screw K40 X 12
  • 540
    705013943 Acoustic Foiam, Storage Compartment. Engine 900 ACE
    Acoustic Foiam, Storage Compartment. Engine 900 ACE
  • 600
    705013110 Front Fairing
    Front Fairing
  • 630
    250000807 Torx Truss Screw M6 X 25
    Torx Truss Screw M6 X 25
  • 700
    708002641 Driver Seat. Package AR
    Driver Seat. Package AR
  • 800a
    705013197 Upper Rear Fender
    Upper Rear Fender
  • 800b
    705013619 LH Cover
    LH Cover
  • 800c
    705013620 RH Cover
    RH Cover
  • 800da
    219400800 REAR FRAME
    REAR FRAME
  • 800db
    704907499 Warning Decal, Passenger
    Warning Decal, Passenger
  • 800e
    250000874 Torx Truss M8 X 25
    Torx Truss M8 X 25
  • 800f
    250000995 Torx-truss M/s M6 X 10
    Torx-truss M/s M6 X 10
  • 800g
    293730084 Rivet, Plastic
    Rivet, Plastic
  • 2010
    250000867 Torx-truss Hex. Screw M6X35, Nylon Prot
    Torx-truss Hex. Screw M6X35, Nylon Prot
  • 2020
    250000807 Torx Truss Screw M6 X 25
    Torx Truss Screw M6 X 25
  • 2025
    234062670 Flat Washer, Stainless
    Flat Washer, Stainless
  • 2030
    250000721 Torx Truss Screw M6 X 16
    Torx Truss Screw M6 X 16
