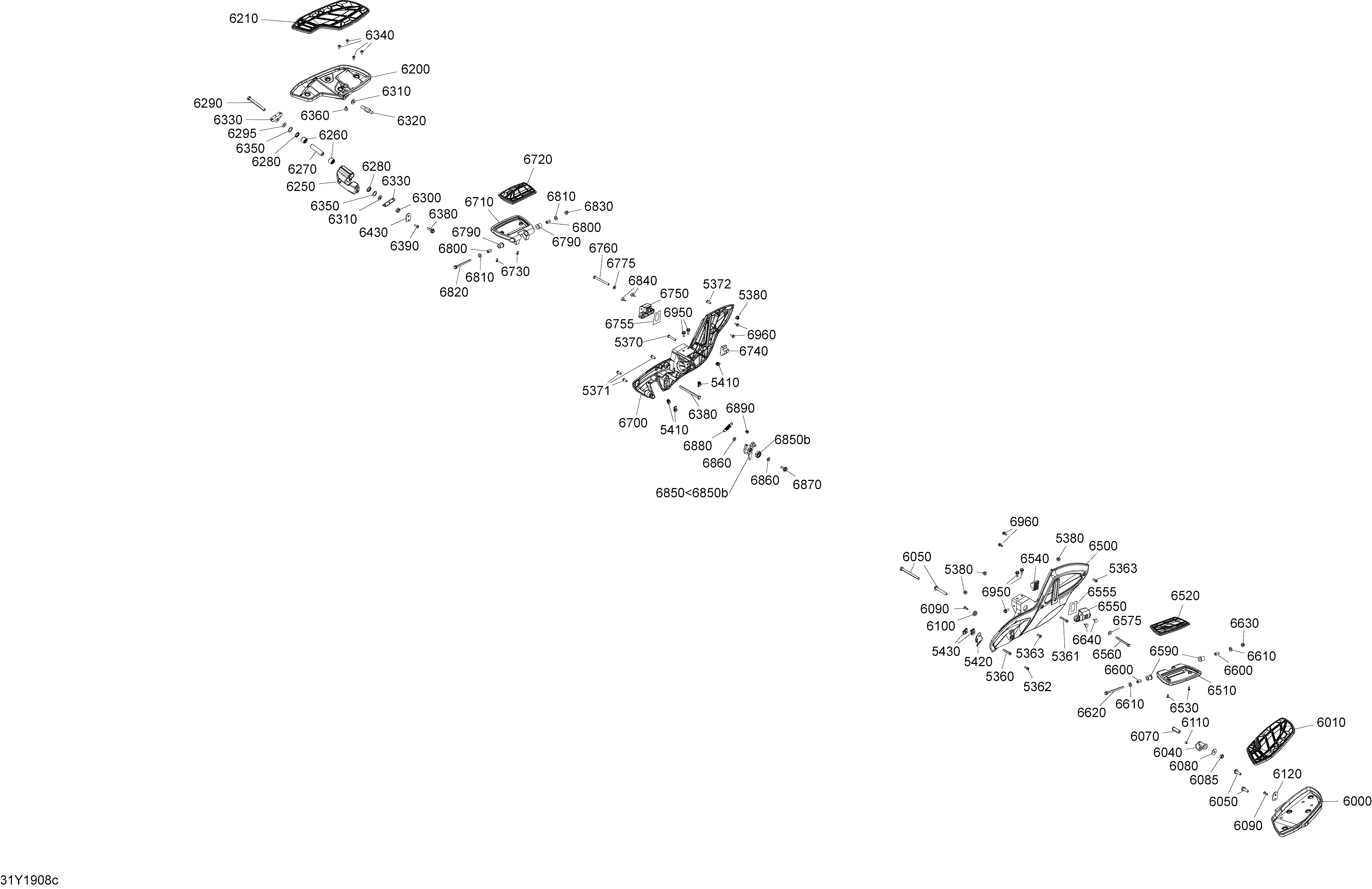

09- Body And Accessories Footrest для BRP 003 - RT LTD SE6 - 2019

  • №
    Артикул
    Название
  • 5360
    205484560 Socket Screw M8 X 45
    Socket Screw M8 X 45
  • 5361
    205484560 Socket Screw M8 X 45
    Socket Screw M8 X 45
  • 5362
    205482060 Socket Head Screw M8 X 20
    Socket Head Screw M8 X 20
  • 5363
    205482060 Socket Head Screw M8 X 20
    Socket Head Screw M8 X 20
  • 5370
    205484560 Socket Screw M8 X 45
    Socket Screw M8 X 45
  • 5371
    205482060 Socket Head Screw M8 X 20
    Socket Head Screw M8 X 20
  • 5371
    205482060 Socket Head Screw M8 X 20
    Socket Head Screw M8 X 20
  • 5372
    205482060 Socket Head Screw M8 X 20
    Socket Head Screw M8 X 20
  • 6000
    705013492 Chrome, LH FRT Footboard. CHROME Edition
    Chrome, LH FRT Footboard. CHROME Edition
  • 6000
    705013575 Carbon Black, LH FRT Footboard. DARK Edition
    Carbon Black, LH FRT Footboard. DARK Edition
  • 6010
    705005731 LH Front Footboard Pad
    LH Front Footboard Pad
  • 6050
    207503046 Hex. Flanged Screw M10 X 30, Scotch Grip
    Hex. Flanged Screw M10 X 30, Scotch Grip
  • 6080
    234002600 Flat Washer 10 mm, Stainless
    Flat Washer 10 mm, Stainless
  • 6090
    250000722 Torx Screw M6 X 20
    Torx Screw M6 X 20
  • 6120
    705006557 Retaining Plate
    Retaining Plate
  • 6200
    705005726 Black Carbon Front Footrest RH. DARK Edition
    Black Carbon Front Footrest RH. DARK Edition
  • 6200
    705006392 Chrome RH Front Footrest. CHROME Edition
    Chrome RH Front Footrest. CHROME Edition
  • 6210
    705005728 RH Front Footboard Pad
    RH Front Footboard Pad
  • 6250
    705005723 Pivot Support
    Pivot Support
  • 6260
    706000447 Bearing
    Bearing
  • 6270
    706000731 Bushing
    Bushing
  • 6280
    706000448 Seal, Single Lip ID 19.4 OD 26
    Seal, Single Lip ID 19.4 OD 26
  • 6290
    230020586 Hexagonal Screw M12 X 105
    Hexagonal Screw M12 X 105
  • 6295
    250200086 Flat Washer
    Flat Washer
  • 6300
    232521416 Elastic Flanged Stop Nut M12
    Elastic Flanged Stop Nut M12
  • 6310
    234021430 Flat Washer
    Flat Washer
  • 6320
    705006428 Latch Pin M12 X 30
    Latch Pin M12 X 30
  • 6330
    705005861 Pivot Bracket
    Pivot Bracket
  • 6340
    250000717 Torx Head Screw M6 X 16
    Torx Head Screw M6 X 16
  • 6350
    250200136 Plastic Washer 20MM
    Plastic Washer 20MM
  • 6360
    708000759 Rubber Stopper
    Rubber Stopper
  • 6380
    207503046 Hex. Flanged Screw M10 X 30, Scotch Grip
    Hex. Flanged Screw M10 X 30, Scotch Grip
  • 6390
    250000722 Torx Screw M6 X 20
    Torx Screw M6 X 20
  • 6430
    705006557 Retaining Plate
    Retaining Plate
  • 6500
    705005714 Black LH Footrest Support. DARK Edition
    Black LH Footrest Support. DARK Edition
  • 6500
    705006395 Chrome LH Footrest Support. CHROME Edition
    Chrome LH Footrest Support. CHROME Edition
  • 6510
    705008533 Black, Rear Footboard. DARK Edition
    Black, Rear Footboard. DARK Edition
  • 6510
    705011154 Chrome, Rear Footboard. CHROME Edition
    Chrome, Rear Footboard. CHROME Edition
  • 6520
    705007461 LH Rubber Rear Pad
    LH Rubber Rear Pad
  • 6530
    250000099 Allen Plastite Screw #12
    Allen Plastite Screw #12
  • 6540
    705003013 Adjuster Block
    Adjuster Block
  • 6550
    705008515 Chrome Sliding Block. CHROME Edition
    Chrome Sliding Block. CHROME Edition
  • 6550
    705008516 Black Sliding Block. DARK Edition
    Black Sliding Block. DARK Edition
  • 6555
    705014173 Film, Protective
    Film, Protective
  • 6560
    207189060 Hex. Screw M8 x 90
    Hex. Screw M8 x 90
  • 6575
    234281704 Spring Washer M8
    Spring Washer M8
  • 6590
    705003018 Rubber Bushing
    Rubber Bushing
  • 6600
    705002153 Bushing
    Bushing
  • 6610
    503183800 Washer
    Washer
  • 6620
    230681034 Hex. Flanged Screw M8 X 110
    Hex. Flanged Screw M8 X 110
  • 6630
    233281434 Hex. Flanged Elastic Nut M8
    Hex. Flanged Elastic Nut M8
  • 6640
    708000759 Rubber Stopper
    Rubber Stopper
  • 6700
    705007972 Black RH Footboard Support. DARK Edition
    Black RH Footboard Support. DARK Edition
  • 6700
    705013491 Chrome, RH Footrest Support. CHROME Edition
    Chrome, RH Footrest Support. CHROME Edition
  • 6710
    705008533 Black, Rear Footboard. DARK Edition
    Black, Rear Footboard. DARK Edition
  • 6710
    705011154 Chrome, Rear Footboard. CHROME Edition
    Chrome, Rear Footboard. CHROME Edition
  • 6720
    705007472 RH Rubber Rear Pad
    RH Rubber Rear Pad
  • 6730
    250000099 Allen Plastite Screw #12
    Allen Plastite Screw #12
  • 6740
    705003013 Adjuster Block
    Adjuster Block
  • 6750
    705008515 Chrome Sliding Block. CHROME Edition
    Chrome Sliding Block. CHROME Edition
  • 6750
    705008516 Black Sliding Block. DARK Edition
    Black Sliding Block. DARK Edition
  • 6755
    705014173 Film, Protective
    Film, Protective
  • 6760
    207189060 Hex. Screw M8 x 90
    Hex. Screw M8 x 90
  • 6775
    234281704 Spring Washer M8
    Spring Washer M8
  • 6790
    705003018 Rubber Bushing
    Rubber Bushing
  • 6800
    705002153 Bushing
    Bushing
  • 6810
    503183800 Washer
    Washer
  • 6820
    230681034 Hex. Flanged Screw M8 X 110
    Hex. Flanged Screw M8 X 110
  • 6830
    233281434 Hex. Flanged Elastic Nut M8
    Hex. Flanged Elastic Nut M8
  • 6840
    708000759 Rubber Stopper
    Rubber Stopper
  • 6850<6850b
    705006014 Latch Ass'y
    Latch Ass'y
  • 6850b
    705600458 Bearing
    Bearing
  • 6860
    503183800 Washer
    Washer
  • 6870
    207502546 Hex. Flanged Screw M10 X 25
    Hex. Flanged Screw M10 X 25
  • 6880
    705006533 Spring
    Spring
  • 6890
    207561044 Flanged Screw M6 X 10, Scotch Grip
    Flanged Screw M6 X 10, Scotch Grip
  • 6950
    207582054 Washer Head Hexagonal Screw
    Washer Head Hexagonal Screw
  • 6960
    207561644 Hex.Fla. Screw M6 X 16, Scotch Grip
    Hex.Fla. Screw M6 X 16, Scotch Grip
