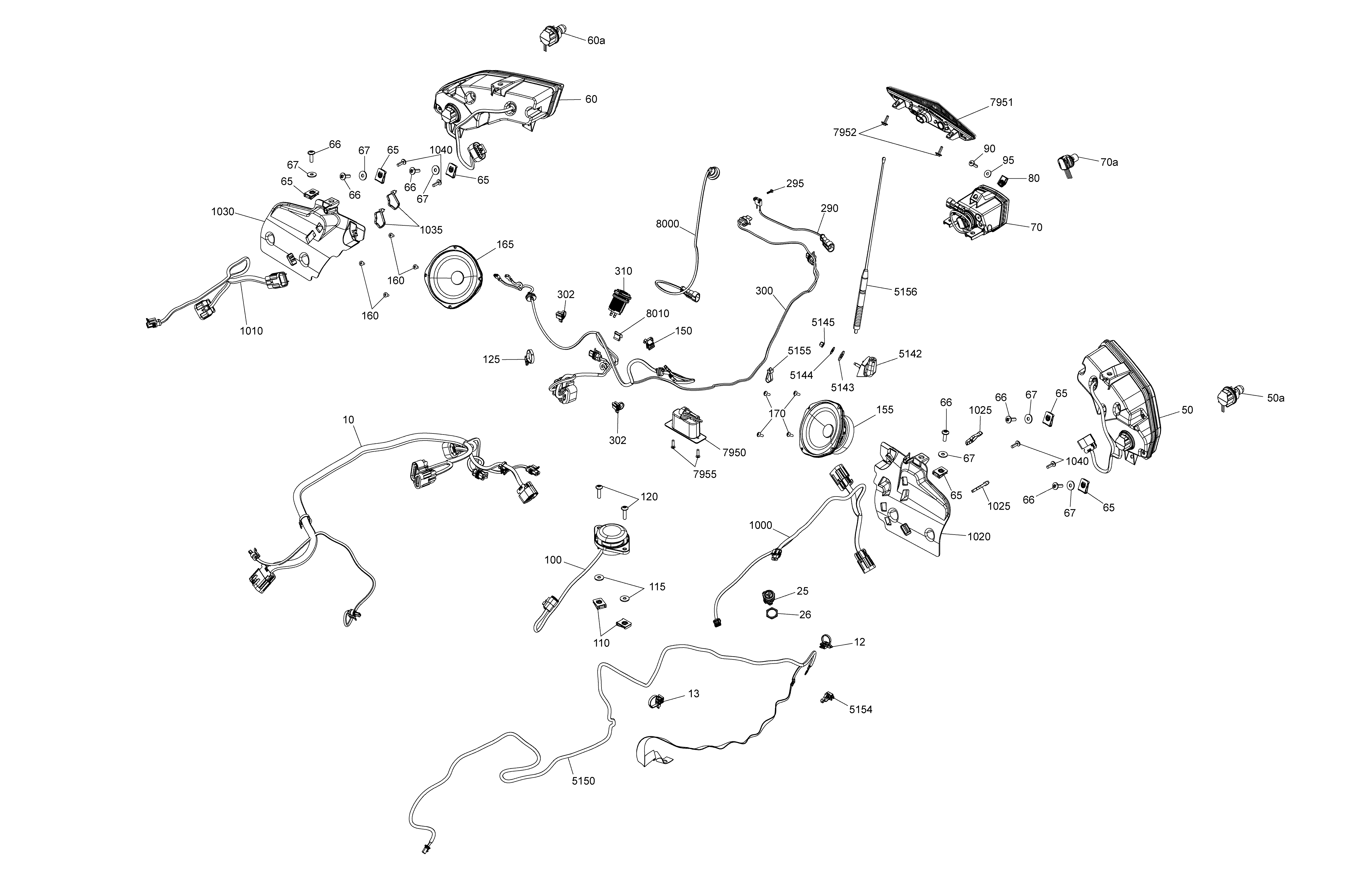

10- Electrical System для BRP 005 - F3 LTD SE6 - 2019

  • №
    Артикул
    Название
  • 10
    710005460 Harness-cargo
    Harness-cargo
  • 12
    293750058 2-Pieces Fixing Tie Rap for Edges
    2-Pieces Fixing Tie Rap for Edges
  • 13
    293750058 2-Pieces Fixing Tie Rap for Edges
    2-Pieces Fixing Tie Rap for Edges
  • 25
    710004598 Switch
    Switch
  • 26
    710004108 Nut
    Nut
  • 50>50a
    710004399 LH Tail Light. Includes 50 TO 50a
    LH Tail Light. Includes 50 TO 50a
  • 50a
    219800039 Bulb 12V/10W, Amber
    Bulb 12V/10W, Amber
  • 60>60a
    710004434 RH Tail Light. Includes 60 TO 60a
    RH Tail Light. Includes 60 TO 60a
  • 60a
    219800039 Bulb 12V/10W, Amber
    Bulb 12V/10W, Amber
  • 65
    250100208 Panel Nut M6 X 1.0
    Panel Nut M6 X 1.0
  • 66
    250000722 Torx Screw M6 X 20
    Torx Screw M6 X 20
  • 67
    250200164 Flat washer M6
    Flat washer M6
  • 70>70a
    710003879 Reverse Light. Includes 70 TO 70a
    Reverse Light. Includes 70 TO 70a
  • 70a
    219800322 Bulb 12V 10W
    Bulb 12V 10W
  • 80
    250000958 Panel Nut M5 X 0.8
    Panel Nut M5 X 0.8
  • 90
    250000715 Torx Truss Screw M5 X 20
    Torx Truss Screw M5 X 20
  • 95
    234052670 Inox. Flat Washer M5
    Inox. Flat Washer M5
  • 100
    710005543 Passanger Detection Switch
    Passanger Detection Switch
  • 110
    250100208 Panel Nut M6 X 1.0
    Panel Nut M6 X 1.0
  • 115
    234062670 Flat Washer, Stainless
    Flat Washer, Stainless
  • 120
    250000807 Torx Truss Screw M6 X 25
    Torx Truss Screw M6 X 25
  • 125
    515175220 Tie Rap
    Tie Rap
  • 150
    710002899 Clip Tie-Rap
    Clip Tie-Rap
  • 155
    710005433 4.5'' Speaker
    4.5'' Speaker
  • 160
    250000577 Torx Truss Screw K40 X 12
    Torx Truss Screw K40 X 12
  • 165
    710005433 4.5'' Speaker
    4.5'' Speaker
  • 170
    250000577 Torx Truss Screw K40 X 12
    Torx Truss Screw K40 X 12
  • 290
    710005315 Open Detection
    Open Detection
  • 295
    250000614 Screw-pt.flange Oval Hd.k30 X 12
    Screw-pt.flange Oval Hd.k30 X 12
  • 300
    710005357 Cargo Upper Harness
    Cargo Upper Harness
  • 302
    293750058 2-Pieces Fixing Tie Rap for Edges
    2-Pieces Fixing Tie Rap for Edges
  • 310
    219400510 USB Outlet
    USB Outlet
  • 1000
    710006437 Cargo Harness LH
    Cargo Harness LH
  • 1010
    710006429 Cargo Harness RH
    Cargo Harness RH
  • 1020
    710004643 LH Connector Support
    LH Connector Support
  • 1025
    414115200 Tie-Rap 180 mm
    Tie-Rap 180 mm
  • 1030
    710004644 RH Connector Support
    RH Connector Support
  • 1035
    414115200 Tie-Rap 180 mm
    Tie-Rap 180 mm
  • 1040
    250000720 Torx Screw K50 X 16
    Torx Screw K50 X 16
  • 5142
    710005631 Antenna Support
    Antenna Support
  • 5143
    234001410 Flat Washer 10 mm
    Flat Washer 10 mm
  • 5144
    234052600 Flat Washer 5 mm, Stainless
    Flat Washer 5 mm, Stainless
  • 5145
    233251434 Flanged Elastic Nut M5
    Flanged Elastic Nut M5
  • 5150
    710006484 Antenna Cable Assembly
    Antenna Cable Assembly
  • 5154
    293750063 Clip Tie-Rap
    Clip Tie-Rap
  • 5155
    293750002 Tie-Rap 142 mm
    Tie-Rap 142 mm
  • 5156
    710005434 Antenna
    Antenna
  • 7950>7950a
    710001451 License Light. Includes 7950 TO 7950a
    License Light. Includes 7950 TO 7950a
  • 7950a
    219800128 Bulb
    Bulb
  • 7951
    520001143 Rear Light
    Rear Light
  • 7951
    520001785 Non-fonctional Rear Tail-light
    Non-fonctional Rear Tail-light
  • 7952
    250000725 Screw M4 X 16
    Screw M4 X 16
  • 7955
    250000287 Flanged Torx Screw K40 X 16
    Flanged Torx Screw K40 X 16
  • 8000
    710001533 Trunk Light
    Trunk Light
  • 8010
    409210100 Clip Bracket Connector (edge)
    Clip Bracket Connector (edge)
