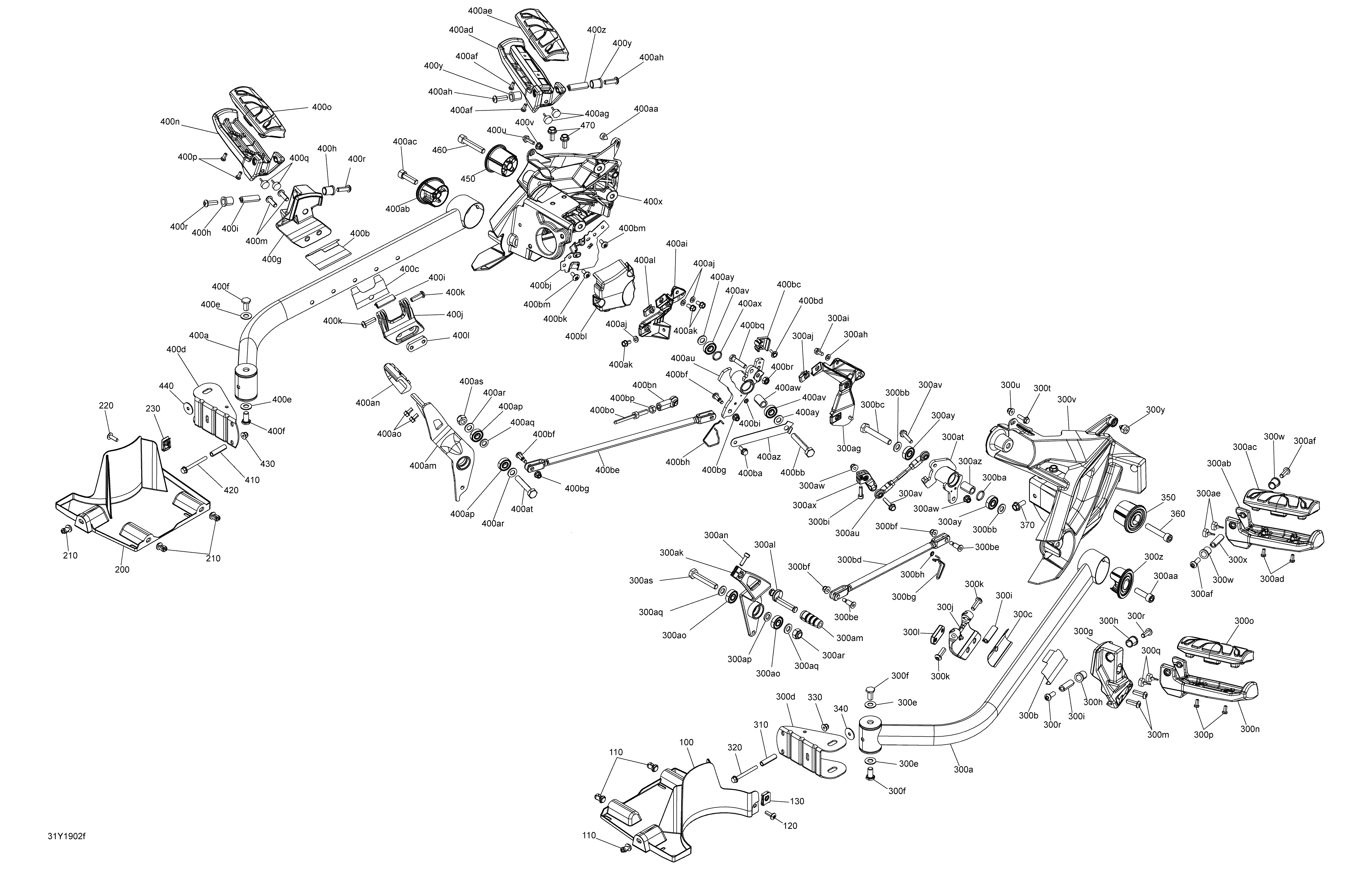

09- Body And Accessories Footrest для BRP 003 - F3 S SE6 - 2019

  • №
    Артикул
    Название
  • 100
    705007785 LH Front Skid Plate
    LH Front Skid Plate
  • 110
    293150230 Tuflok Plastic Rivet
    Tuflok Plastic Rivet
  • 120
    250000446 Torx Screw M6 X 20, Scotch Grip
    Torx Screw M6 X 20, Scotch Grip
  • 130
    250100208 Panel Nut M6
    Panel Nut M6
  • 200
    705007786 RH Front Skid Plate
    RH Front Skid Plate
  • 210
    293150230 Tuflok Plastic Rivet
    Tuflok Plastic Rivet
  • 220
    250000446 Torx Screw M6 X 20, Scotch Grip
    Torx Screw M6 X 20, Scotch Grip
  • 230
    250100208 Panel Nut M6
    Panel Nut M6
  • 300a
    705008955 Carbon Black - LH Footrest Support. Model B-406 Oxford Blue
    Carbon Black - LH Footrest Support. Model B-406 Oxford Blue
  • 300a
    705008955 Carbon Black - LH Footrest Support. Model B-393 Monolith Black
    Carbon Black - LH Footrest Support. Model B-393 Monolith Black
  • 300a
    705013767 Orange Crush - LH Footrest Support. Model B-429 Liquid Titan
    Orange Crush - LH Footrest Support. Model B-429 Liquid Titan
  • 300b
    705009449 LH Frame Protector Outside
    LH Frame Protector Outside
  • 300c
    705009025 LH Frame Protector Inside
    LH Frame Protector Inside
  • 300d
    705008950 Tube Support
    Tube Support
  • 300e
    506152582 Washer
    Washer
  • 300f
    250000719 Hex. Cap Screw Full Thread
    Hex. Cap Screw Full Thread
  • 300g
    705007798 LH Slider Outside
    LH Slider Outside
  • 300h
    705008166 Spacer Bushing
    Spacer Bushing
  • 300i
    705013628 Pivot Pin
    Pivot Pin
  • 300j
    705013117 Black, LH Slider Clamp
    Black, LH Slider Clamp
  • 300k
    250000830 Socket Head Screw M8 X 25
    Socket Head Screw M8 X 25
  • 300l
    705008553 Back Flange
    Back Flange
  • 300m
    250000830 Socket Head Screw M8 X 25
    Socket Head Screw M8 X 25
  • 300n
    705008663 LH Carbon Black Footpeg
    LH Carbon Black Footpeg
  • 300o
    705011281 Footpeg Rubber Pad
    Footpeg Rubber Pad
  • 300p
    250000099 Allen Plastite Screw #12
    Allen Plastite Screw #12
  • 300q
    708000759 Rubber Stopper
    Rubber Stopper
  • 300r
    250000830 Socket Head Screw M8 X 25
    Socket Head Screw M8 X 25
  • 300t
    207562054 Flanged Hex. Screw S.GRIP M6 X 20
    Flanged Hex. Screw S.GRIP M6 X 20
  • 300u
    233261466 Hex. Flanged Elastic Nut M6
    Hex. Flanged Elastic Nut M6
  • 300v
    705009401 LH Carbon Black Rear Footrest Support. Model B-429 Liquid Titan
    LH Carbon Black Rear Footrest Support. Model B-429 Liquid Titan
  • 300v
    705009401 LH Carbon Black Rear Footrest Support. Model B-393 Monolith Black
    LH Carbon Black Rear Footrest Support. Model B-393 Monolith Black
  • 300v
    705009401 LH Carbon Black Rear Footrest Support. Model B-406 Oxford Blue
    LH Carbon Black Rear Footrest Support. Model B-406 Oxford Blue
  • 300w
    705008166 Spacer Bushing
    Spacer Bushing
  • 300x
    705013628 Pivot Pin
    Pivot Pin
  • 300y
    293830005 Rubber Bumper
    Rubber Bumper
  • 300z
    705010203 Pivot Cap
    Pivot Cap
  • 300aa
    244003560 Socket Head Screw M10 X 35, Scotch Grip
    Socket Head Screw M10 X 35, Scotch Grip
  • 300ab
    705008663 LH Carbon Black Footpeg
    LH Carbon Black Footpeg
  • 300ac
    705011281 Footpeg Rubber Pad
    Footpeg Rubber Pad
  • 300ad
    250000099 Allen Plastite Screw #12
    Allen Plastite Screw #12
  • 300ae
    708000759 Rubber Stopper
    Rubber Stopper
  • 300af
    250000830 Socket Head Screw M8 X 25
    Socket Head Screw M8 X 25
  • 300ag
    705008961 LH Fairing Support
    LH Fairing Support
  • 300ah
    234061670 Flat Washer 6 mm
    Flat Washer 6 mm
  • 300ai
    210261250 Hex. Flanged Screw M6 X 12
    Hex. Flanged Screw M6 X 12
  • 300aj
    250100198 Panel Nut , M6 X 1.0
    Panel Nut , M6 X 1.0
  • 300ak
    707001699 Gear Shift Lever. SM6
    Gear Shift Lever. SM6
  • 300al
    707000455 Adjustment Rod. SM6
    Adjustment Rod. SM6
  • 300am
    707000456 End Clutch Pedal. SM6
    End Clutch Pedal. SM6
  • 300an
    250001077 Socket Head Screw Scotch Grip M6 X 20. SM6
    Socket Head Screw Scotch Grip M6 X 20. SM6
  • 300ao
    705600458 Bearing. SM6
    Bearing. SM6
  • 300ap
    503192496 Washer. SM6
    Washer. SM6
  • 300aq
    503183800 Washer. SM6
    Washer. SM6
  • 300ar
    233601466 Elastic Locking Nut M10. SM6
    Elastic Locking Nut M10. SM6
  • 300as
    207006056 Hex. Cap Screw M10 X 60. SM6
    Hex. Cap Screw M10 X 60. SM6
  • 300at
    707001573 Shifter Lever Rocker. SM6
    Shifter Lever Rocker. SM6
  • 300au
    504152819 Linkage Rod. SM6
    Linkage Rod. SM6
  • 300av
    207563034 Hex. Flanged Screw M6 X 30, Scotch Grip. SM6
    Hex. Flanged Screw M6 X 30, Scotch Grip. SM6
  • 300aw
    233261414 Hex. Flanged Elastic Nut M6 x 1.0. SM6
    Hex. Flanged Elastic Nut M6 x 1.0. SM6
  • 300ax
    707000926 Shifter Arm. SM6
    Shifter Arm. SM6
  • 300ay
    705600458 Bearing. SM6
    Bearing. SM6
  • 300az
    705600541 Bushing. SM6
    Bushing. SM6
  • 300ba
    293300191 O-Ring. SM6
    O-Ring. SM6
  • 300bb
    503183800 Washer. SM6
    Washer. SM6
  • 300bc
    207206534 Hex. Screw M10 X 65, Scotch Grip. SM6
    Hex. Screw M10 X 65, Scotch Grip. SM6
  • 300bd
    219400627 Shifter Linkage Kit (295.9 mm) . SM6
    Shifter Linkage Kit (295.9 mm) . SM6
  • 300be
    250000714 Flanged Screw M6 X 26. SM6
    Flanged Screw M6 X 26. SM6
  • 300bf
    233261466 Hex. Flanged Elastic Nut M6. SM6
    Hex. Flanged Elastic Nut M6. SM6
  • 300bg
    707001753 Quick-Attach Bracket. SM6
    Quick-Attach Bracket. SM6
  • 300bh
    250100178 Push Nut. SM6
    Push Nut. SM6
  • 300bi
    250001077 Socket Head Screw Scotch Grip M6 X 20. SM6
    Socket Head Screw Scotch Grip M6 X 20. SM6
  • 310
    705008219 Spacer
    Spacer
  • 320
    250000778 Screw-Hex.Flange M6 X 60
    Screw-Hex.Flange M6 X 60
  • 330
    233261466 Hex. Flanged Elastic Nut M6
    Hex. Flanged Elastic Nut M6
  • 340
    250200029 Washer M6
    Washer M6
  • 350
    705010202 Pivot Cap
    Pivot Cap
  • 360
    205505560 Socket Head Screw
    Socket Head Screw
  • 370
    207582054 Washer Head Hexagonal Screw
    Washer Head Hexagonal Screw
  • 400a
    705008954 RH Carbon Black Footrest Support. Model B-393 Monolith Black
    RH Carbon Black Footrest Support. Model B-393 Monolith Black
  • 400a
    705008954 RH Carbon Black Footrest Support. Model B-406 Oxford Blue
    RH Carbon Black Footrest Support. Model B-406 Oxford Blue
  • 400a
    705013769 Carbon Black - RH Footrest Support. Model B-429 Liquid Titan
    Carbon Black - RH Footrest Support. Model B-429 Liquid Titan
  • 400b
    705009448 RH Frame Protector Outside
    RH Frame Protector Outside
  • 400c
    705009023 RH Frame Protector Inside
    RH Frame Protector Inside
  • 400d
    705008950 Tube Support
    Tube Support
  • 400e
    506152582 Washer
    Washer
  • 400f
    250000719 Hex. Cap Screw Full Thread
    Hex. Cap Screw Full Thread
  • 400g
    705008158 RH Slider Outside
    RH Slider Outside
  • 400h
    705008166 Spacer Bushing
    Spacer Bushing
  • 400i
    705013628 Pivot Pin
    Pivot Pin
  • 400j
    705013120 Black, RH Slider Clamp
    Black, RH Slider Clamp
  • 400k
    250000830 Socket Head Screw M8 X 25
    Socket Head Screw M8 X 25
  • 400l
    705008553 Back Flange
    Back Flange
  • 400m
    250000830 Socket Head Screw M8 X 25
    Socket Head Screw M8 X 25
  • 400n
    705008160 Carbon Black - RH Footpeg
    Carbon Black - RH Footpeg
  • 400o
    705011281 Footpeg Rubber Pad
    Footpeg Rubber Pad
  • 400p
    250000099 Allen Plastite Screw #12
    Allen Plastite Screw #12
  • 400q
    708000759 Rubber Stopper
    Rubber Stopper
  • 400r
    250000830 Socket Head Screw M8 X 25
    Socket Head Screw M8 X 25
  • 400u
    207562054 Flanged Hex. Screw S.GRIP M6 X 20
    Flanged Hex. Screw S.GRIP M6 X 20
  • 400v
    233261466 Hex. Flanged Elastic Nut M6
    Hex. Flanged Elastic Nut M6
  • 400x
    705009402 RH Carbon Black Rear Footrest Support. Model B-429 Liquid Titan
    RH Carbon Black Rear Footrest Support. Model B-429 Liquid Titan
  • 400x
    705009402 RH Carbon Black Rear Footrest Support. Model B-393 Monolith Black
    RH Carbon Black Rear Footrest Support. Model B-393 Monolith Black
  • 400x
    705009402 RH Carbon Black Rear Footrest Support. Model B-406 Oxford Blue
    RH Carbon Black Rear Footrest Support. Model B-406 Oxford Blue
  • 400y
    705008166 Spacer Bushing
    Spacer Bushing
  • 400z
    705013628 Pivot Pin
    Pivot Pin
  • 400aa
    293830005 Rubber Bumper
    Rubber Bumper
  • 400ab
    705010203 Pivot Cap
    Pivot Cap
  • 400ac
    244003560 Socket Head Screw M10 X 35, Scotch Grip
    Socket Head Screw M10 X 35, Scotch Grip
  • 400ad
    705008160 Carbon Black - RH Footpeg
    Carbon Black - RH Footpeg
  • 400ae
    705011281 Footpeg Rubber Pad
    Footpeg Rubber Pad
  • 400af
    250000099 Allen Plastite Screw #12
    Allen Plastite Screw #12
  • 400ag
    708000759 Rubber Stopper
    Rubber Stopper
  • 400ah
    250000830 Socket Head Screw M8 X 25
    Socket Head Screw M8 X 25
  • 400ai
    705008962 RH Fairing Support
    RH Fairing Support
  • 400aj
    234061670 Flat Washer 6 mm
    Flat Washer 6 mm
  • 400ak
    210261250 Hex. Flanged Screw M6 X 12
    Hex. Flanged Screw M6 X 12
  • 400al
    250100198 Panel Nut , M6 X 1.0
    Panel Nut , M6 X 1.0
  • 400am
    705601419 Brake Pedal
    Brake Pedal
  • 400an
    705004933 Rubber Pad
    Rubber Pad
  • 400ao
    210261250 Hex. Flanged Screw M6 X 12
    Hex. Flanged Screw M6 X 12
  • 400ap
    705600458 Bearing
    Bearing
  • 400aq
    503192496 Washer
    Washer
  • 400ar
    503183800 Washer
    Washer
  • 400as
    233601466 Elastic Locking Nut M10
    Elastic Locking Nut M10
  • 400at
    207006056 Hex. Cap Screw M10 X 60
    Hex. Cap Screw M10 X 60
  • 400au
    705601308 Master Cylinder Rocker
    Master Cylinder Rocker
  • 400av
    705600458 Bearing
    Bearing
  • 400aw
    705600541 Bushing
    Bushing
  • 400ax
    293300191 O-Ring
    O-Ring
  • 400ay
    503183800 Washer
    Washer
  • 400az
    705601229 Locking Tab
    Locking Tab
  • 400ba
    207561644 Hex.Fla. Screw M6 X 16, Scotch Grip
    Hex.Fla. Screw M6 X 16, Scotch Grip
  • 400bb
    207206534 Hex. Screw M10 X 65, Scotch Grip
    Hex. Screw M10 X 65, Scotch Grip
  • 400bc
    705601375 Brake Master Cylinder Stopper
    Brake Master Cylinder Stopper
  • 400bd
    250000725 Screw M4 X 16
    Screw M4 X 16
  • 400be
    219400628 Brake Linkage Kit (410.7 mm)
    Brake Linkage Kit (410.7 mm)
  • 400bf
    250000714 Flanged Screw M6 X 26
    Flanged Screw M6 X 26
  • 400bg
    233261466 Hex. Flanged Elastic Nut M6
    Hex. Flanged Elastic Nut M6
  • 400bh
    705601350 Quick-Attach Bracket
    Quick-Attach Bracket
  • 400bi
    250100178 Push Nut
    Push Nut
  • 400bj
    705601342 Light Switch Bracket
    Light Switch Bracket
  • 400bk
    250000717 Torx Head Screw M6 X 16
    Torx Head Screw M6 X 16
  • 400bl
    705601343 Switch Deflector
    Switch Deflector
  • 400bm
    250000717 Torx Head Screw M6 X 16
    Torx Head Screw M6 X 16
  • 400bn
    705601506 Rod End
    Rod End
  • 400bo
    705600468 Piston Rod
    Piston Rod
  • 400bp
    232081414 Hex. Nut M8
    Hex. Nut M8
  • 400bq
    207283544 Hexagonal Head Cap Screw M8 X 35
    Hexagonal Head Cap Screw M8 X 35
  • 400br
    232581414 Hex. Elastic Stop Nut M8
    Hex. Elastic Stop Nut M8
  • 410
    705008219 Spacer
    Spacer
  • 420
    250000778 Screw-Hex.Flange M6 X 60
    Screw-Hex.Flange M6 X 60
  • 430
    233261466 Hex. Flanged Elastic Nut M6
    Hex. Flanged Elastic Nut M6
  • 440
    250200029 Washer M6
    Washer M6
  • 450
    705010202 Pivot Cap
    Pivot Cap
  • 460
    205505560 Socket Head Screw
    Socket Head Screw
  • 470
    207582054 Washer Head Hexagonal Screw
    Washer Head Hexagonal Screw

Все узлы модели:
