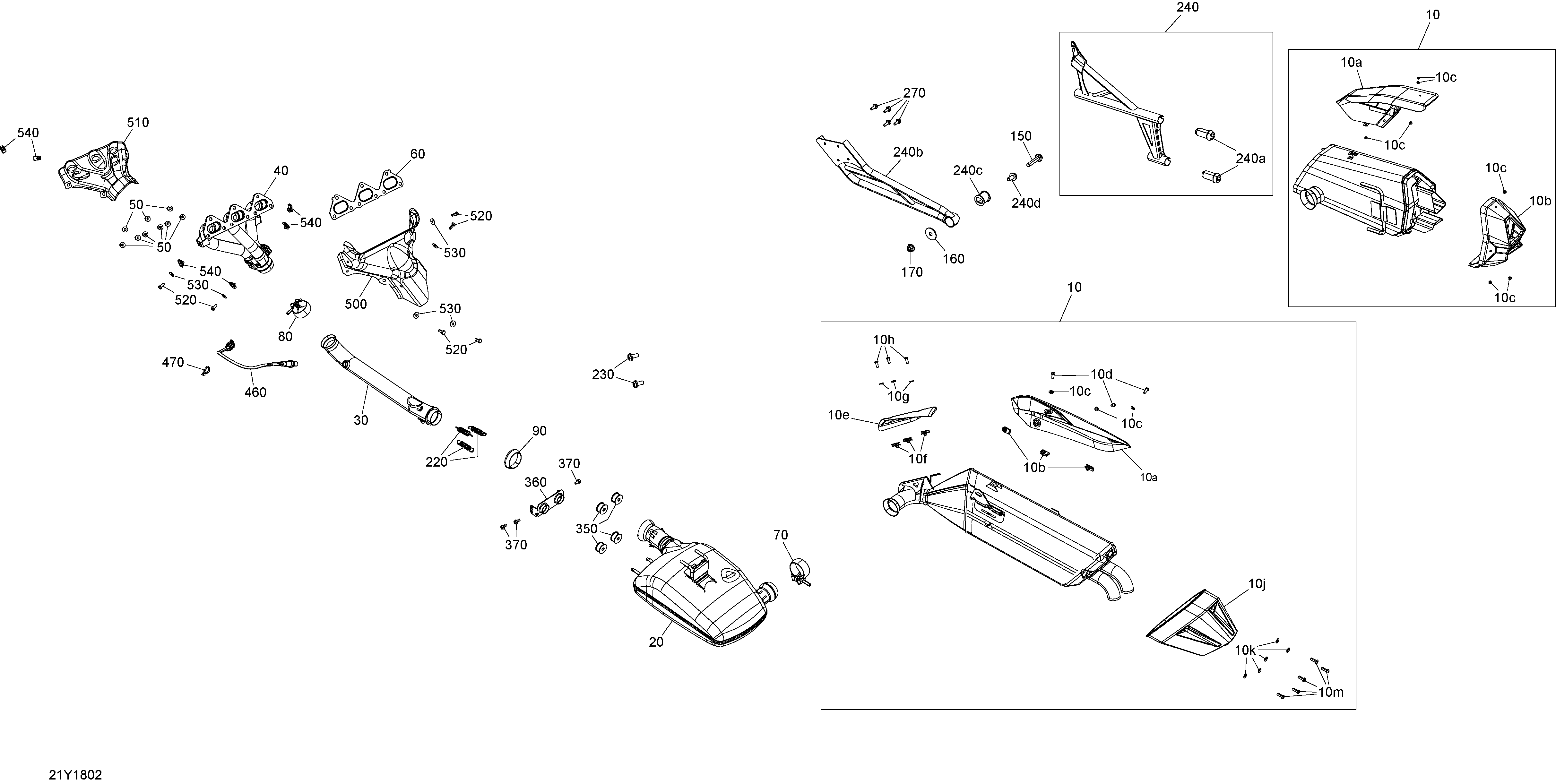

01- Exhaust для BRP F3 STD SE6 - 2018

  • №
    Артикул
    Название
  • 10
    707601559 Carbon Black Muffler Ass'y. Except Australia. Includes 10 to 10c
    Carbon Black Muffler Ass'y. Except Australia. Includes 10 to 10c
  • 10
    707602161 Muffler Exhaust Sec Ass'y. Australia. Includes 10 to 10m
    Muffler Exhaust Sec Ass'y. Australia. Includes 10 to 10m
  • 10a
    707601560 Carbon Black Heat Shield. Except Australia
    Carbon Black Heat Shield. Except Australia
  • 10a
    707601381 Carbon Black Heat Shield. Australia
    Carbon Black Heat Shield. Australia
  • 10b
    707601561 Carbon Black Muffler End Cap. Except Australia
    Carbon Black Muffler End Cap. Except Australia
  • 10b
    250100113 Panel Nut, M6 X 1.0. Australia
    Panel Nut, M6 X 1.0. Australia
  • 10c
    293150219 Rivet-Pop 5/32. Except Australia
    Rivet-Pop 5/32. Except Australia
  • 10c
    234061670 Flat Washer 6 mm. Australia
    Flat Washer 6 mm. Australia
  • 10d
    250000616 Socket Screw, M6 X 16. Australia
    Socket Screw, M6 X 16. Australia
  • 10e
    707601054 Carbon Black Heat Shield. Australia
    Carbon Black Heat Shield. Australia
  • 10f
    250100113 Panel Nut, M6 X 1.0. Australia
    Panel Nut, M6 X 1.0. Australia
  • 10g
    234061670 Flat Washer 6 mm. Australia
    Flat Washer 6 mm. Australia
  • 10h
    250000616 Socket Screw, M6 X 16. Australia
    Socket Screw, M6 X 16. Australia
  • 10j
    707601048 Carbon Black Muffler End Cap. Australia
    Carbon Black Muffler End Cap. Australia
  • 10k
    234061670 Flat Washer 6 mm. Australia
    Flat Washer 6 mm. Australia
  • 10m
    250000616 Socket Screw, M6 X 16. Australia
    Socket Screw, M6 X 16. Australia
  • 20
    707602033 Primary Muffler
    Primary Muffler
  • 30
    707601605 Exhaust Tuned Pipe
    Exhaust Tuned Pipe
  • 40
    707601922 Exhaust Manifold
    Exhaust Manifold
  • 50
    233081416 Hex. Flanged Nut M8
    Hex. Flanged Nut M8
  • 60
    707601985 Exhaust Seal
    Exhaust Seal
  • 70
    707600980 Exhaust Clamp
    Exhaust Clamp
  • 80
    707600980 Exhaust Clamp
    Exhaust Clamp
  • 90
    514054174 Exhaust Gasket
    Exhaust Gasket
  • 150
    244006060 Socket Screw M10 X 60. Australia
    Socket Screw M10 X 60. Australia
  • 160
    506150000 Washer 10 mm. Australia
    Washer 10 mm. Australia
  • 170
    233101600 Hex. Flanged Nut M10. Australia
    Hex. Flanged Nut M10. Australia
  • 220
    415107100 Spring
    Spring
  • 230
    207502044 Flanged Hex Screw M10 X 20. Except Australia
    Flanged Hex Screw M10 X 20. Except Australia
  • 240
    707601550 Muffler Support. Except Australia. Includes 240 to 240a
    Muffler Support. Except Australia. Includes 240 to 240a
  • 240
    707601940 Support. Australia. Includes 240 to 240d1
    Support. Australia. Includes 240 to 240d1
  • 240a
    293830167 Rubber Bushing. Except Australia. Not Shown
    Rubber Bushing. Except Australia. Not Shown
  • 240b
    707601683 Muffler Support. Australia
    Muffler Support. Australia
  • 240c
    293830162 Anti-Vibration Rubber. Australia
    Anti-Vibration Rubber. Australia
  • 240d
    707601657 Black Bushing. Australia. Includes 240d to 240d1
    Black Bushing. Australia. Includes 240d to 240d1
  • 240d1
    707601589 Bushing. Australia. Not Shown
    Bushing. Australia. Not Shown
  • 270
    207561644 Hex. Flanged Screw M6 X 16, Scotch Grip. Australia
    Hex. Flanged Screw M6 X 16, Scotch Grip. Australia
  • 350
    707600702 Anti-Vibration Rubber
    Anti-Vibration Rubber
  • 360
    707600661 Front Bracket
    Front Bracket
  • 370
    210261250 Hex. Flanged Screw M6 X 12
    Hex. Flanged Screw M6 X 12
  • 460
    707600872 Oxygen Sensor
    Oxygen Sensor
  • 470
    414115200 Tie-Rap 180 mm
    Tie-Rap 180 mm
  • 500
    707601028 Inner Heat Deflector
    Inner Heat Deflector
  • 510
    707601504 External Heat Deflector
    External Heat Deflector
  • 520
    207361660 Hex. Screw M6 X 16, Scotch Grip
    Hex. Screw M6 X 16, Scotch Grip
  • 530
    234062600 Flat Washer M6, Stainless
    Flat Washer M6, Stainless
  • 540
    250100113 Panel Nut, M6 X 1.0
    Panel Nut, M6 X 1.0
