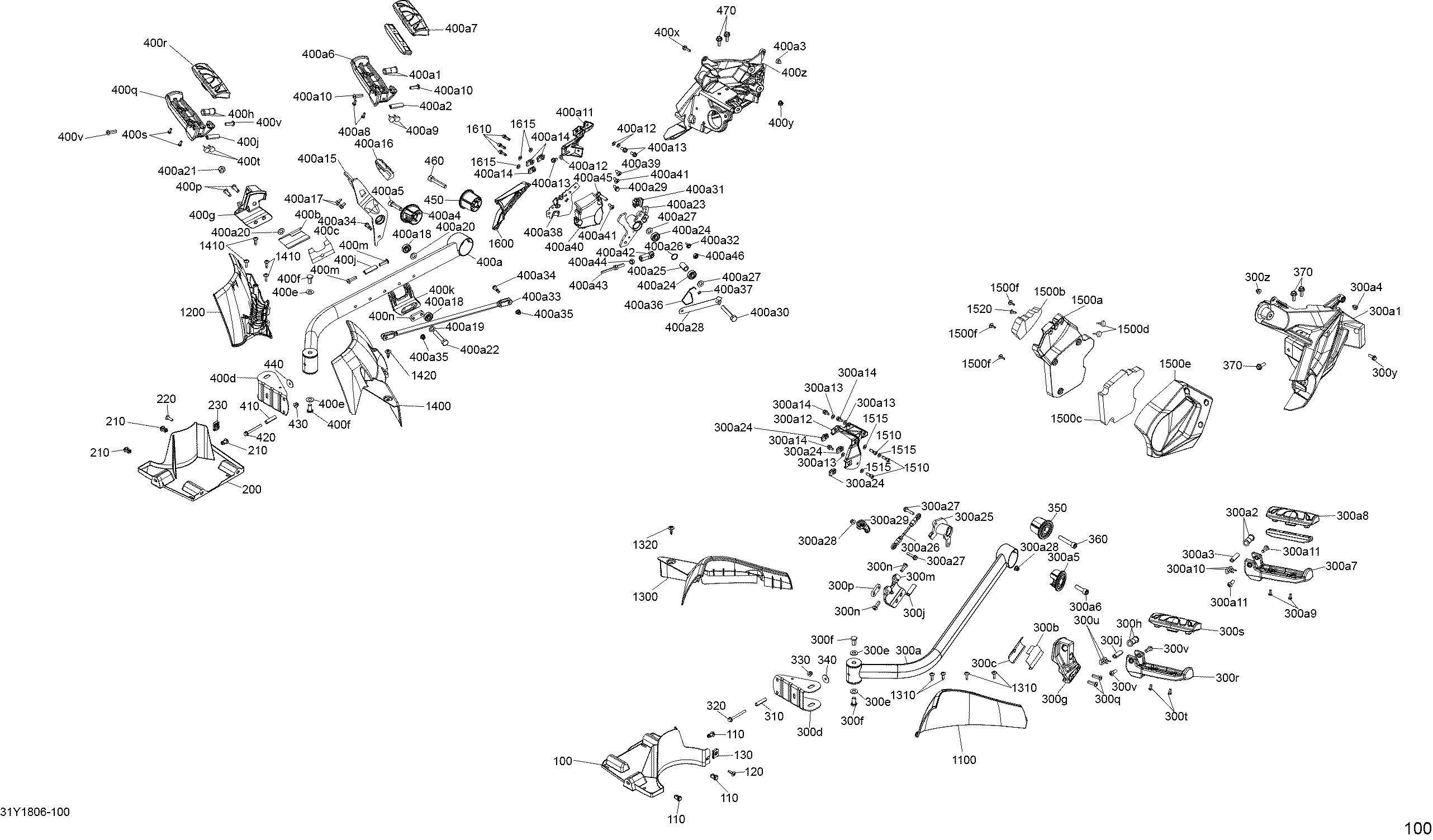

09- Body And Accessories - Footrest для BRP F3 S SM6 & SE6 - 2018

  • №
    Артикул
    Название
  • 100
    705007785 LH Front Skid Plate
    LH Front Skid Plate
  • 110
    293150089 Tuflok Plastic Rivet
    Tuflok Plastic Rivet
  • 120
    250000446 Torx Screw M6 X 20, Scotch Grip
    Torx Screw M6 X 20, Scotch Grip
  • 130
    250100169 Panel Nut M6 X 1
    Panel Nut M6 X 1
  • 200
    705007786 RH Front Skid Plate
    RH Front Skid Plate
  • 210
    293150089 Tuflok Plastic Rivet
    Tuflok Plastic Rivet
  • 220
    250000446 Torx Screw M6 X 20, Scotch Grip
    Torx Screw M6 X 20, Scotch Grip
  • 230
    250100169 Panel Nut M6 X 1
    Panel Nut M6 X 1
  • 300a
    705008955 LH Black Cabon Footrest Support. Model Oxford Blue
    LH Black Cabon Footrest Support. Model Oxford Blue
  • 300a
    705008955 LH Black Cabon Footrest Support. Model Monolith Black
    LH Black Cabon Footrest Support. Model Monolith Black
  • 300a
    705010834 LH Yellow Cabon Footrest Support. Model Circuit Yellow
    LH Yellow Cabon Footrest Support. Model Circuit Yellow
  • 300a
    705012450 Liquid Gold, LH Support. Option 10TH
    Liquid Gold, LH Support. Option 10TH
  • 300b
    705009449 LH Frame Protector Outside
    LH Frame Protector Outside
  • 300c
    705009025 LH Frame Protector Inside
    LH Frame Protector Inside
  • 300d
    705008950 Tube Support
    Tube Support
  • 300e
    506152582 Washer
    Washer
  • 300f
    250000719 Hex. Cap Screw Full Thread
    Hex. Cap Screw Full Thread
  • 300g
    705007798 LH Slider Outside
    LH Slider Outside
  • 300h
    705008166 Spacer Bushing
    Spacer Bushing
  • 300j
    705013187 Pivot Oin
    Pivot Oin
  • 300m
    705013117 Black, LH Slider Clamp
    Black, LH Slider Clamp
  • 300n
    250000830 Socket Head Screw M8 X 25
    Socket Head Screw M8 X 25
  • 300p
    705008553 Back Flange
    Back Flange
  • 300q
    250000830 Socket Head Screw M8 X 25
    Socket Head Screw M8 X 25
  • 300r
    705008663 LH Carbon Black Footpeg
    LH Carbon Black Footpeg
  • 300s
    705011281 Pad
    Pad
  • 300t
    250000099 Allen Plastite Screw #12
    Allen Plastite Screw #12
  • 300u
    708000759 Rubber Stopper
    Rubber Stopper
  • 300v
    250000830 Socket Head Screw M8 X 25
    Socket Head Screw M8 X 25
  • 300y
    207562054 Flanged Hex. Screw S.GRIP M6 X 20
    Flanged Hex. Screw S.GRIP M6 X 20
  • 300z
    233261466 Hex. Flanged Elastic Nut M6
    Hex. Flanged Elastic Nut M6
  • 300a1
    705009401 LH Carbon Black Rear Footrest Support. Model Monolith Black
    LH Carbon Black Rear Footrest Support. Model Monolith Black
  • 300a1
    705009401 LH Carbon Black Rear Footrest Support. Model Circuit Yellow
    LH Carbon Black Rear Footrest Support. Model Circuit Yellow
  • 300a1
    705009401 LH Carbon Black Rear Footrest Support. Model Oxford Blue
    LH Carbon Black Rear Footrest Support. Model Oxford Blue
  • 300a1
    705012451 Liquid Gold, LH Support. Option 10TH
    Liquid Gold, LH Support. Option 10TH
  • 300a2
    705008166 Spacer Bushing
    Spacer Bushing
  • 300a3
    705013187 Pivot Oin
    Pivot Oin
  • 300a4
    293830005 Rubber Bumper
    Rubber Bumper
  • 300a5
    705010203 Pivot Cap
    Pivot Cap
  • 300a6
    244003560 Socket Head Screw M10 X 35, Scotch Grip. Not Shown
    Socket Head Screw M10 X 35, Scotch Grip. Not Shown
  • 300a7
    705008663 LH Carbon Black Footpeg
    LH Carbon Black Footpeg
  • 300a8
    705011281 Pad
    Pad
  • 300a9
    250000099 Allen Plastite Screw #12
    Allen Plastite Screw #12
  • 300a10
    708000759 Rubber Stopper
    Rubber Stopper
  • 300a11
    250000830 Socket Head Screw M8 X 25
    Socket Head Screw M8 X 25
  • 300a12
    705008961 LH Fairing Support
    LH Fairing Support
  • 300a13
    234061670 Flat Washer 6 mm
    Flat Washer 6 mm
  • 300a14
    210261250 Hex. Flanged Screw M6 X 12
    Hex. Flanged Screw M6 X 12
  • 300a24
    250100113 Panel Nut, M6 X 1.0
    Panel Nut, M6 X 1.0
  • 300a25
    707001573 Shifter Lever Rocker
    Shifter Lever Rocker
  • 300a26
    504152819 Linkage Rod
    Linkage Rod
  • 300a27
    207563034 Hex. Flanged Screw M6 X 30, Scotch Grip
    Hex. Flanged Screw M6 X 30, Scotch Grip
  • 300a28
    233261414 Hex. Flanged Elastic Nut M6 x 1.0
    Hex. Flanged Elastic Nut M6 x 1.0
  • 300a29
    707000926 Shifter Arm
    Shifter Arm
  • 310
    705008219 Spacer
    Spacer
  • 320
    250000778 Screw-Hex.Flange M6 X 60
    Screw-Hex.Flange M6 X 60
  • 330
    233261466 Hex. Flanged Elastic Nut M6
    Hex. Flanged Elastic Nut M6
  • 340
    250200029 Washer M6
    Washer M6
  • 350
    705010202 Pivot Cap
    Pivot Cap
  • 360
    205505560 Socket Head Screw
    Socket Head Screw
  • 370
    207582054 Washer Head Hexagonal Screw
    Washer Head Hexagonal Screw
  • 400a
    705008954 RH Carbon Black Footrest Support. Model Oxford Blue
    RH Carbon Black Footrest Support. Model Oxford Blue
  • 400a
    705008954 RH Carbon Black Footrest Support. Model Monolith Black
    RH Carbon Black Footrest Support. Model Monolith Black
  • 400a
    705010853 RH Yellow Footrest Support. Model Circuit Yellow
    RH Yellow Footrest Support. Model Circuit Yellow
  • 400a
    705012452 Liquid Gold, RH Support. Option 10TH
    Liquid Gold, RH Support. Option 10TH
  • 400b
    705009448 RH Frame Protector Outside
    RH Frame Protector Outside
  • 400c
    705009023 RH Frame Protector Inside
    RH Frame Protector Inside
  • 400d
    705008950 Tube Support
    Tube Support
  • 400e
    506152582 Washer
    Washer
  • 400f
    250000719 Hex. Cap Screw Full Thread
    Hex. Cap Screw Full Thread
  • 400g
    705008158 RH Slider Outside
    RH Slider Outside
  • 400h
    705008166 Spacer Bushing
    Spacer Bushing
  • 400j
    705013187 Pivot Oin
    Pivot Oin
  • 400k
    705013120 Black, RH Slider Clamp
    Black, RH Slider Clamp
  • 400m
    250000830 Socket Head Screw M8 X 25
    Socket Head Screw M8 X 25
  • 400n
    705008553 Back Flange
    Back Flange
  • 400p
    250000830 Socket Head Screw M8 X 25
    Socket Head Screw M8 X 25
  • 400q
    705008160 RH Carbon Black Footpeg
    RH Carbon Black Footpeg
  • 400r
    705011281 Pad
    Pad
  • 400s
    250000099 Allen Plastite Screw #12
    Allen Plastite Screw #12
  • 400t
    708000759 Rubber Stopper
    Rubber Stopper
  • 400v
    250000830 Socket Head Screw M8 X 25
    Socket Head Screw M8 X 25
  • 400x
    207562054 Flanged Hex. Screw S.GRIP M6 X 20
    Flanged Hex. Screw S.GRIP M6 X 20
  • 400y
    233261466 Hex. Flanged Elastic Nut M6
    Hex. Flanged Elastic Nut M6
  • 400z
    705009402 RH Carbon Black Rear Footrest Support. Model Monolith Black
    RH Carbon Black Rear Footrest Support. Model Monolith Black
  • 400z
    705009402 RH Carbon Black Rear Footrest Support. Model Oxford Blue
    RH Carbon Black Rear Footrest Support. Model Oxford Blue
  • 400z
    705009402 RH Carbon Black Rear Footrest Support. Model Circuit Yellow
    RH Carbon Black Rear Footrest Support. Model Circuit Yellow
  • 400z
    705012453 Liquid Gold, RH Support. Option 10TH
    Liquid Gold, RH Support. Option 10TH
  • 400a1
    705008166 Spacer Bushing
    Spacer Bushing
  • 400a2
    705013187 Pivot Oin
    Pivot Oin
  • 400a3
    293830005 Rubber Bumper
    Rubber Bumper
  • 400a4
    705010203 Pivot Cap
    Pivot Cap
  • 400a5
    244003560 Socket Head Screw M10 X 35, Scotch Grip
    Socket Head Screw M10 X 35, Scotch Grip
  • 400a6
    705008160 RH Carbon Black Footpeg
    RH Carbon Black Footpeg
  • 400a7
    705011281 Pad
    Pad
  • 400a8
    250000099 Allen Plastite Screw #12
    Allen Plastite Screw #12
  • 400a9
    708000759 Rubber Stopper
    Rubber Stopper
  • 400a10
    250000830 Socket Head Screw M8 X 25
    Socket Head Screw M8 X 25
  • 400a11
    705008962 RH Fairing Support
    RH Fairing Support
  • 400a12
    234061670 Flat Washer 6 mm
    Flat Washer 6 mm
  • 400a13
    210261250 Hex. Flanged Screw M6 X 12
    Hex. Flanged Screw M6 X 12
  • 400a14
    250100113 Panel Nut, M6 X 1.0
    Panel Nut, M6 X 1.0
  • 400a15
    705601419 Brake Pedal
    Brake Pedal
  • 400a16
    705004933 Rubber Pad
    Rubber Pad
  • 400a17
    210261250 Hex. Flanged Screw M6 X 12
    Hex. Flanged Screw M6 X 12
  • 400a18
    705600458 Bearing
    Bearing
  • 400a19
    503192496 Washer
    Washer
  • 400a20
    503183800 Washer
    Washer
  • 400a21
    233601466 Elastic Locking Nut M10
    Elastic Locking Nut M10
  • 400a22
    207006056 Hex. Cap Screw M10 X 60
    Hex. Cap Screw M10 X 60
  • 400a23
    705601308 Master Cylinder Rocker
    Master Cylinder Rocker
  • 400a24
    705600458 Bearing
    Bearing
  • 400a25
    705600541 Bushing
    Bushing
  • 400a26
    293300191 O-Ring
    O-Ring
  • 400a27
    503183800 Washer
    Washer
  • 400a28
    705601229 Locking Tab
    Locking Tab
  • 400a29
    207561644 Hex.Fla. Screw M6 X 1.0 X 16,Scotch Grip
    Hex.Fla. Screw M6 X 1.0 X 16,Scotch Grip
  • 400a30
    207206534 Hex. Screw M10 X 65, Scotch Grip
    Hex. Screw M10 X 65, Scotch Grip
  • 400a31
    705601375 Brake Master Cylinder Stopper
    Brake Master Cylinder Stopper
  • 400a32
    250000725 Screw M4 X 16
    Screw M4 X 16
  • 400a33
    219400628 Brake Linkage Kit (410.7 mm)
    Brake Linkage Kit (410.7 mm)
  • 400a34
    250000714 Flanged Screw M6 X 26
    Flanged Screw M6 X 26
  • 400a35
    233261466 Hex. Flanged Elastic Nut M6
    Hex. Flanged Elastic Nut M6
  • 400a36
    705601350 Quick-Attach Bracket
    Quick-Attach Bracket
  • 400a37
    250100178 Push Nut
    Push Nut
  • 400a38
    705601342 Light Switch Bracket
    Light Switch Bracket
  • 400a39
    250000717 Torx Head Screw M6 X 16
    Torx Head Screw M6 X 16
  • 400a40
    705601343 Switch Deflector
    Switch Deflector
  • 400a41
    250000717 Torx Head Screw M6 X 16
    Torx Head Screw M6 X 16
  • 400a42
    705601506 Rod End
    Rod End
  • 400a43
    705600468 Piston Rod
    Piston Rod
  • 400a44
    232081414 Hex. Nut M8
    Hex. Nut M8
  • 400a45
    207283544 Hexagonal Head Cap Screw M8 X 35
    Hexagonal Head Cap Screw M8 X 35
  • 400a46
    232581414 Hex. Elastic Stop Nut M8
    Hex. Elastic Stop Nut M8
  • 410
    705008219 Spacer
    Spacer
  • 420
    250000778 Screw-Hex.Flange M6 X 60
    Screw-Hex.Flange M6 X 60
  • 430
    233261466 Hex. Flanged Elastic Nut M6
    Hex. Flanged Elastic Nut M6
  • 440
    250200029 Washer M6
    Washer M6
  • 450
    705010202 Pivot Cap
    Pivot Cap
  • 460
    205505560 Socket Head Screw
    Socket Head Screw
  • 470
    207582054 Washer Head Hexagonal Screw
    Washer Head Hexagonal Screw
  • 1100
    705007794 LH Deflector
    LH Deflector
  • 1200
    705007795 RH Deflector
    RH Deflector
  • 1300
    705009027 LH Shell
    LH Shell
  • 1310
    250000586 Torx Truss M5 X 20
    Torx Truss M5 X 20
  • 1320
    414745900 Tuflock Phillips Plastic Screw
    Tuflock Phillips Plastic Screw
  • 1400
    705009029 RH Shell
    RH Shell
  • 1410
    250000586 Torx Truss M5 X 20
    Torx Truss M5 X 20
  • 1420
    414745900 Tuflock Phillips Plastic Screw
    Tuflock Phillips Plastic Screw
  • 1500a
    705009144 LH Acoustic Fairing
    LH Acoustic Fairing
  • 1500b
    705009344 Acoustic Foam
    Acoustic Foam
  • 1500c
    705009162 Acoustic Foam
    Acoustic Foam
  • 1500d
    708000759 Rubber Stopper
    Rubber Stopper
  • 1500e
    705007780 LH Engine Fairing
    LH Engine Fairing
  • 1500f
    250000725 Screw M4 X 16
    Screw M4 X 16
  • 1510
    205562060 Socket Head Screw M6 X 20, Scotch Grip
    Socket Head Screw M6 X 20, Scotch Grip
  • 1515
    234061600 Flat Washer M6, Stainless
    Flat Washer M6, Stainless
  • 1520
    293730024 Dart, Fastex
    Dart, Fastex
  • 1600
    705007781 RH Engine Fairing
    RH Engine Fairing
  • 1610
    205562060 Socket Head Screw M6 X 20, Scotch Grip
    Socket Head Screw M6 X 20, Scotch Grip
  • 1615
    234061600 Flat Washer M6, Stainless
    Flat Washer M6, Stainless
  • 1700
    207582054 Washer Head Hexagonal Screw
    Washer Head Hexagonal Screw

Все узлы модели:
