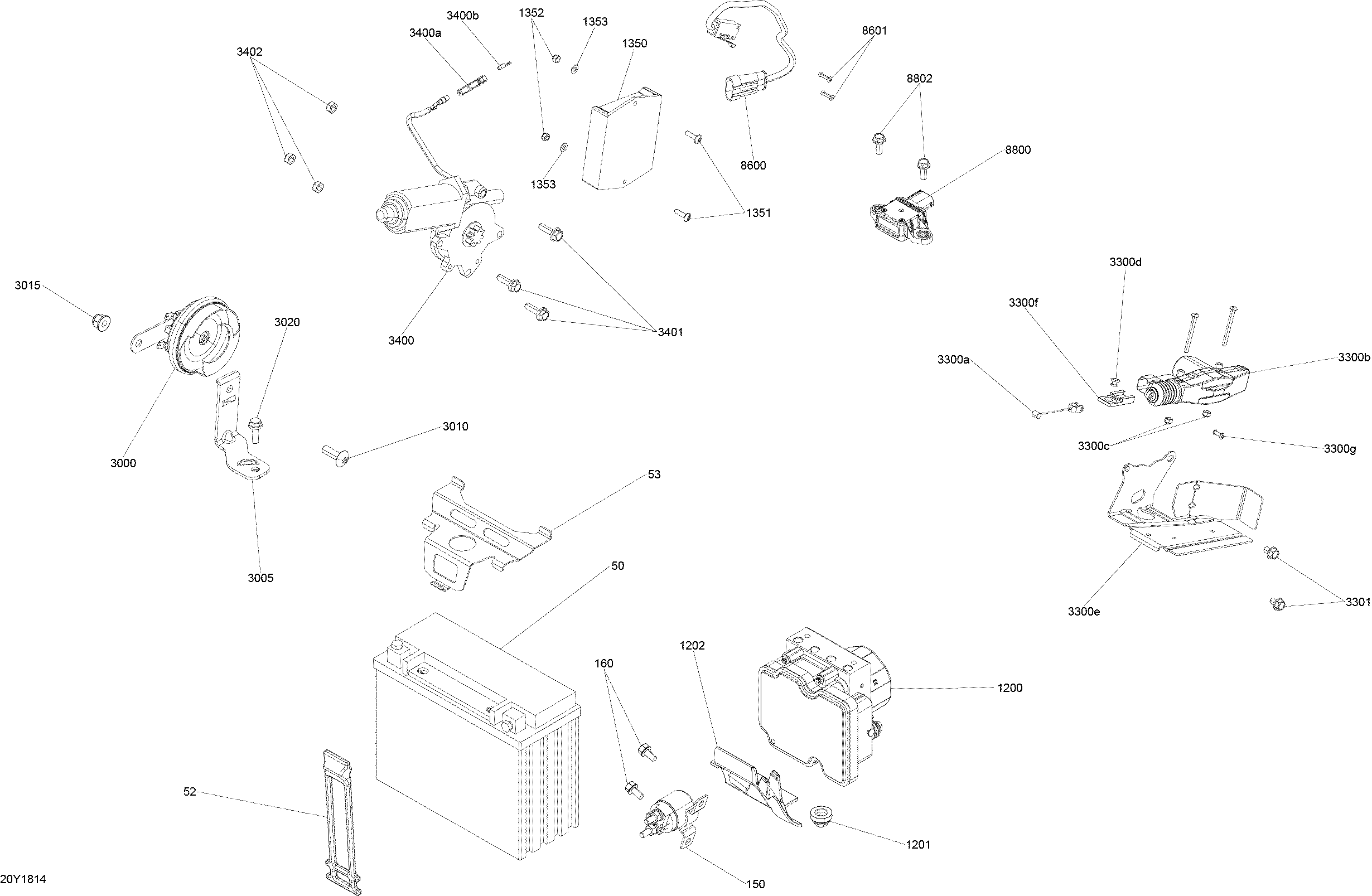

10- Electrical Frame F3 для BRP F3 LTD SE6 - 2018
-
№АртикулНазвание
-
50410922962 Battery, 12 Volts, 21 AmperesBattery, 12 Volts, 21 Amperes
-
52520000528 LatchLatch
-
53710002893 Battery HolderBattery Holder
-
150710001364 Starter RelayStarter Relay
-
160210261250 Hex. Flanged Screw M6 X 12Hex. Flanged Screw M6 X 12
-
1200219800375 VCM ModuleVCM Module
-
1201710003279 Damper ShockDamper Shock
-
1202710003996 VCM Harness ProtectorVCM Harness Protector
-
1350710005887 PBM Module Ass'yPBM Module Ass'y
-
1351250000750 Torx Screw M4 X 16Torx Screw M4 X 16
-
1352232541484 Elastic Stop Nut M4Elastic Stop Nut M4
-
1353234041480 Flat Washer 4 mmFlat Washer 4 mm
-
3000710004940 HornHorn
-
3005710005769 Horn SupportHorn Support
-
3010250000874 Torx Truss M8 X 25Torx Truss M8 X 25
-
3015233281414 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
3020207562034 Hex. Flanged Screw M6 X 20, Scotch GripHex. Flanged Screw M6 X 20, Scotch Grip
-
3300a710002889 Reverse CableReverse Cable
-
3300b710003776 ActuatorActuator
-
3300c232541414 Elastic Stop Nut M4Elastic Stop Nut M4
-
3300d390403000 Pop Rivet 5/32Pop Rivet 5/32
-
3300e710005642 Reverse Actuator SupportReverse Actuator Support
-
3300f270000141 ClipClip
-
3300g390402400 Pop Rivet 3/16''Pop Rivet 3/16''
-
3301210261050 Screw-Forming Hex.Hd.Fl.Din.7500DScrew-Forming Hex.Hd.Fl.Din.7500D
-
3400278003071 Control Gear Motor. Includes 3400 to 3400aControl Gear Motor. Includes 3400 to 3400a
-
3400a278000231 Insulation SheathInsulation Sheath
-
3400b278000230 Male TerminalMale Terminal
-
3401207662054 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
3402232561434 Elastic Stop Nut M6Elastic Stop Nut M6
-
8600710001379 Brake Pressure Switch Ass'yBrake Pressure Switch Ass'y
-
8601293150150 Pop RivetPop Rivet
-
8800710002677 Yaw Rate SensorYaw Rate Sensor
-
8802210261650 Hex. Flanged Screw M6 X 16Hex. Flanged Screw M6 X 16
