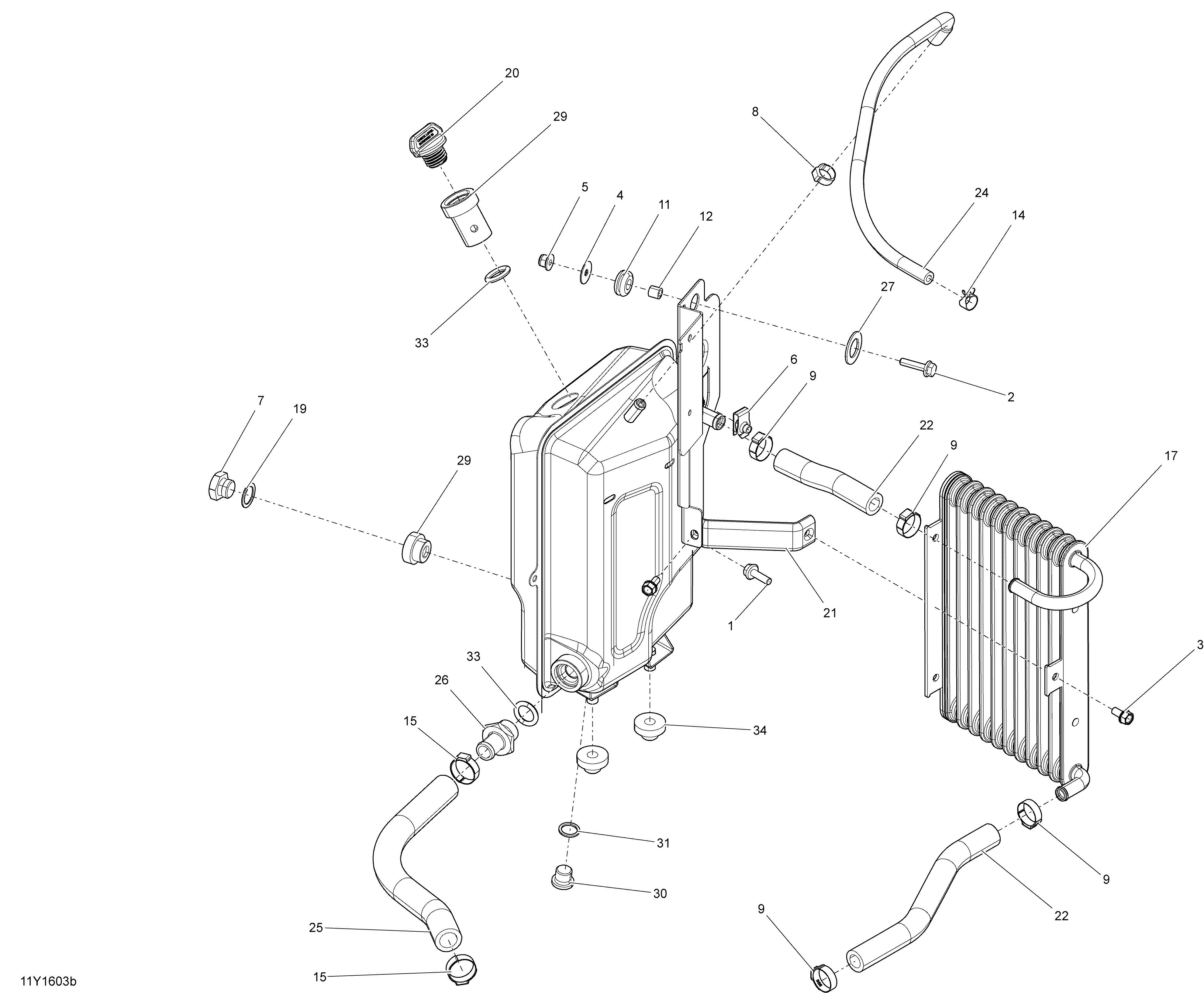

02- Oil System - SM5 для BRP RS - 2016
-
№АртикулНазвание
-
1207562044 Flanged Screw M6 X 20, Scotch GripFlanged Screw M6 X 20, Scotch Grip
-
2207662544 Hex. Flanged Screw M6 X 25Hex. Flanged Screw M6 X 25
-
3210261250 Hex. Flanged Screw M6 X 12Hex. Flanged Screw M6 X 12
-
4224060201 Flat WasherFlat Washer
-
5233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
6250000048 Panel Nut M6 X 1.0Panel Nut M6 X 1.0
-
7250100114 Hex. Head Plug M16 X 1.5Hex. Head Plug M16 X 1.5
-
8293650140 Oetiker ClampOetiker Clamp
-
9293650186 Oetiker ClampOetiker Clamp
-
11293720053 GrommetGrommet
-
12293900105 BushingBushing
-
14414415200 Spring ClampSpring Clamp
-
15509000552 Gear ClampGear Clamp
-
17519000123 Oil RadiatorOil Radiator
-
19519000148 Copper WasherCopper Washer
-
20519000155 Oil CapOil Cap
-
21519000175 Radiator SupportRadiator Support
-
22519000199 12,7 mm Hose12,7 mm Hose
-
24519000208 Formed HoseFormed Hose
-
25519000200 15,9 mm Hose15,9 mm Hose
-
26519000219 StrainerStrainer
-
27519000295 WasherWasher
-
29519000304 Oil TankOil Tank
-
30705500504 Fill Level PlugFill Level Plug
-
31705500506 Copper WasherCopper Washer
-
33709000218 O-RingO-Ring
-
34709200285 GrommetGrommet
