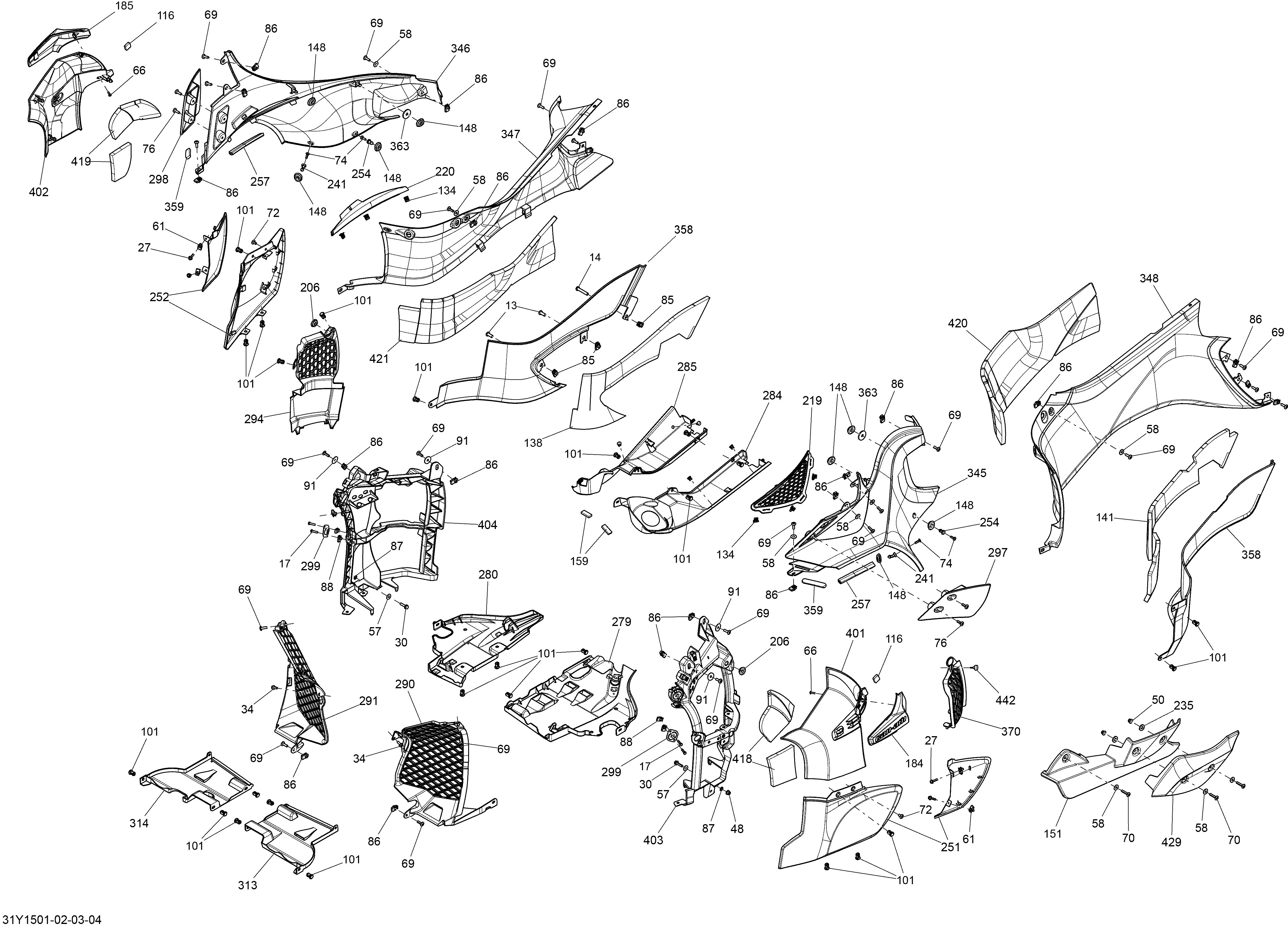

09- Body And Accessories _31Y1502 для BRP Spyder RTS SM6 - 2015

  • №
    Артикул
    Название
  • 13
    205482060 Socket Head Screw M8 X 20
    Socket Head Screw M8 X 20
  • 14
    205484560 Socket Screw M8 X 45
    Socket Screw M8 X 45
  • 17
    207152060 Hex. Screw M5 X 20
    Hex. Screw M5 X 20
  • 27
    207652044 Flanged Hex. Screw M5 X 20
    Flanged Hex. Screw M5 X 20
  • 30
    207662544 Hex. Flanged Screw M6 X 25
    Hex. Flanged Screw M6 X 25
  • 34
    210261680 Hex. Flanged Screw M6 X 16
    Hex. Flanged Screw M6 X 16
  • 48
    233261414 Hex. Flanged Elastic Nut M6
    Hex. Flanged Elastic Nut M6
  • 50
    233261494 Hex. Elastic Flanged Nut M6
    Hex. Elastic Flanged Nut M6
  • 57
    234062410 Flat Washer 6 mm
    Flat Washer 6 mm
  • 58
    234062670 Flat Washer
    Flat Washer
  • 61
    250000079 Panel Nut M5 X 0.8
    Panel Nut M5 X 0.8
  • 66
    250000294 Torx Screw K40 X 16
    Torx Screw K40 X 16
  • 69
    250000350 Torx Truss Screw M6 X 20
    Torx Truss Screw M6 X 20
  • 70
    250000371 Torx Screw M6 X 30 Stainless
    Torx Screw M6 X 30 Stainless
  • 72
    250000454 Torx Screw M6 X 12
    Torx Screw M6 X 12
  • 74
    250000459 Torx Screw, K50X16
    Torx Screw, K50X16
  • 76
    250000488 Torx Truss Screw M6 X 20
    Torx Truss Screw M6 X 20
  • 85
    250100111 Panel Nut M8
    Panel Nut M8
  • 86
    250100113 Panel Nut, M6 X 1.0
    Panel Nut, M6 X 1.0
  • 87
    250100163 Pressure Nut
    Pressure Nut
  • 91
    250200029 Washer M6
    Washer M6
  • 101
    293150089 Tuflok Plastic Rivet
    Tuflok Plastic Rivet
  • 116
    293830143 Rubber Pad
    Rubber Pad
  • 134
    517302785 Clip
    Clip
  • 138
    518324756 RH Lower Panel Foam. Model-Australia, Brezil
    RH Lower Panel Foam. Model-Australia, Brezil
  • 141
    518327490 LH Lower Panel Foam. Model-Australia, Brezil
    LH Lower Panel Foam. Model-Australia, Brezil
  • 148
    705000321 Oval Washer
    Oval Washer
  • 151
    705002092 Lower Belt Guard
    Lower Belt Guard
  • 159
    293200003 Neoprene Seal, Meter
    Neoprene Seal, Meter
  • 184
    705007441 Platine Side Panel Cap Kit
    Platine Side Panel Cap Kit
  • 185
    705007442 Platine RH Panel Cap
    Platine RH Panel Cap
  • 206
    705003264 Grommet
    Grommet
  • 219
    705003385 LH Upper Side Panel Grill
    LH Upper Side Panel Grill
  • 220
    705003386 RH Upper Side Panel Grill
    RH Upper Side Panel Grill
  • 235
    705003696 Adhesive Spacer
    Adhesive Spacer
  • 241
    705003746 Angled Knob
    Angled Knob
  • 251
    705003759 LH Water Deflector Ass'y
    LH Water Deflector Ass'y
  • 252
    705003760 RH Water Deflector Ass'y
    RH Water Deflector Ass'y
  • 254
    705003842 Knob
    Knob
  • 257
    293200149 Neoprene Seal
    Neoprene Seal
  • 279
    705004610 LH Deflector Pannel
    LH Deflector Pannel
  • 280
    705004611 RH Deflector Pannel
    RH Deflector Pannel
  • 284
    705004631 LH Tank Cover Ass'y
    LH Tank Cover Ass'y
  • 285
    705004632 RH Tank Cover Ass'y
    RH Tank Cover Ass'y
  • 290
    705004789 LH Radiatior Moulding
    LH Radiatior Moulding
  • 291
    705004790 RH Radiatior Moulding
    RH Radiatior Moulding
  • 294
    705004803 RH Side Grill
    RH Side Grill
  • 297
    705004924 LH Lower Air Deflector
    LH Lower Air Deflector
  • 298
    705004925 RH Lower Air Deflector
    RH Lower Air Deflector
  • 299
    705005055 Grommet Ass'y
    Grommet Ass'y
  • 313
    705005438 LH Skid Plate
    LH Skid Plate
  • 314
    705005439 RH Skid Plate
    RH Skid Plate
  • 345
    705006329 Yellow LH Upper Panel. Model-Circuit Yellow Met
    Yellow LH Upper Panel. Model-Circuit Yellow Met
  • 345
    705008729 Pearl Red LH Upper Panel. Model-RT S Intense Red Pearl
    Pearl Red LH Upper Panel. Model-RT S Intense Red Pearl
  • 345
    705008728 Steel Black Met LH Upper Panel. Model-Steel Black Met
    Steel Black Met LH Upper Panel. Model-Steel Black Met
  • 345
    705006168 White LH Upper Panel. Model-Vegas White Pearl
    White LH Upper Panel. Model-Vegas White Pearl
  • 346
    705006320 Yellow RH Upper Panel. Model-Circuit Yellow Met
    Yellow RH Upper Panel. Model-Circuit Yellow Met
  • 346
    705008731 Pearl Red RH Upper Panel. Model-RT S Intense Red Pearl
    Pearl Red RH Upper Panel. Model-RT S Intense Red Pearl
  • 346
    705008730 Steel Black Met RH Upper Panel. Model-Steel Black Met
    Steel Black Met RH Upper Panel. Model-Steel Black Met
  • 346
    705006167 White RH Upper Panel. Model-Vegas White Pearl
    White RH Upper Panel. Model-Vegas White Pearl
  • 347
    705006340 Yellow RH Upper Lateral Panel. Model-Circuit Yellow Met
    Yellow RH Upper Lateral Panel. Model-Circuit Yellow Met
  • 347
    705008735 Pearl Red RH Upper Lateral Panel. Model-Intense Red Pearl
    Pearl Red RH Upper Lateral Panel. Model-Intense Red Pearl
  • 347
    705008734 Steel Black Met RH Upper Lateral Panel. Model-Steel Black Met
    Steel Black Met RH Upper Lateral Panel. Model-Steel Black Met
  • 347
    705006177 White RH Upper Lateral Panel. Model-Vegas White Pearl
    White RH Upper Lateral Panel. Model-Vegas White Pearl
  • 348
    705006341 Yellow LH Upper Lateral Panel. Model-Circuit Yellow Met
    Yellow LH Upper Lateral Panel. Model-Circuit Yellow Met
  • 348
    705008733 Pearl Red LH Upper Lateral Panel. Model-Intense Red Pearl
    Pearl Red LH Upper Lateral Panel. Model-Intense Red Pearl
  • 348
    705008732 Steel Black Met LH Upper Lateral Panel. Model-Steel Black Met
    Steel Black Met LH Upper Lateral Panel. Model-Steel Black Met
  • 348
    705006178 White LH Upper Lateral Panel. Model-Vegas White Pearl
    White LH Upper Lateral Panel. Model-Vegas White Pearl
  • 358
    705006820 LH Lower Pannel
    LH Lower Pannel
  • 358
    705007736 RH Lower Pannel
    RH Lower Pannel
  • 359
    705006824 Neoprene Pad
    Neoprene Pad
  • 363
    705007085 Rubber Washer
    Rubber Washer
  • 370
    705007307 LH Side Grill
    LH Side Grill
  • 401
    705009007 Circuit Yellow LH Side Panel. Model-Circuit Yellow Met
    Circuit Yellow LH Side Panel. Model-Circuit Yellow Met
  • 401
    705008726 Pearl Red LH Side Panel. Model-Intense Red Pearl
    Pearl Red LH Side Panel. Model-Intense Red Pearl
  • 401
    705008724 Steel Black Met LH Side Panel. Model-Steel Black Met
    Steel Black Met LH Side Panel. Model-Steel Black Met
  • 401
    705008999 Vegas White Pearl LH Side Panel. Model-Vegas White Pearl
    Vegas White Pearl LH Side Panel. Model-Vegas White Pearl
  • 402
    705009008 Circuit Yellow RH Side Panel. Model-Circuit Yellow Met
    Circuit Yellow RH Side Panel. Model-Circuit Yellow Met
  • 402
    705008727 Pearl Red RH Side Panel. Model-Intense Red Pearl
    Pearl Red RH Side Panel. Model-Intense Red Pearl
  • 402
    705008725 Steel Black Met RH Side Panel. Model-Steel Black Met
    Steel Black Met RH Side Panel. Model-Steel Black Met
  • 402
    705009000 Vegas White Pearl RH Side Panel. Model-Vegas White Pearl
    Vegas White Pearl RH Side Panel. Model-Vegas White Pearl
  • 403
    705009063 LH Support
    LH Support
  • 404
    705009064 RH Support
    RH Support
  • 418
    705009311 Side Foam LH. Model-Australia, Brezil
    Side Foam LH. Model-Australia, Brezil
  • 419
    705009312 Side Foam RH. Model-Australia, Brezil
    Side Foam RH. Model-Australia, Brezil
  • 420
    705009313 LH Foam. Model-Australia, Brezil
    LH Foam. Model-Australia, Brezil
  • 421
    705009314 RH Foam. Model-Australia, Brezil
    RH Foam. Model-Australia, Brezil
  • 429
    705009446 Belt Guard Moulding
    Belt Guard Moulding
  • 442
    708000759 Rubber Stopper
    Rubber Stopper
