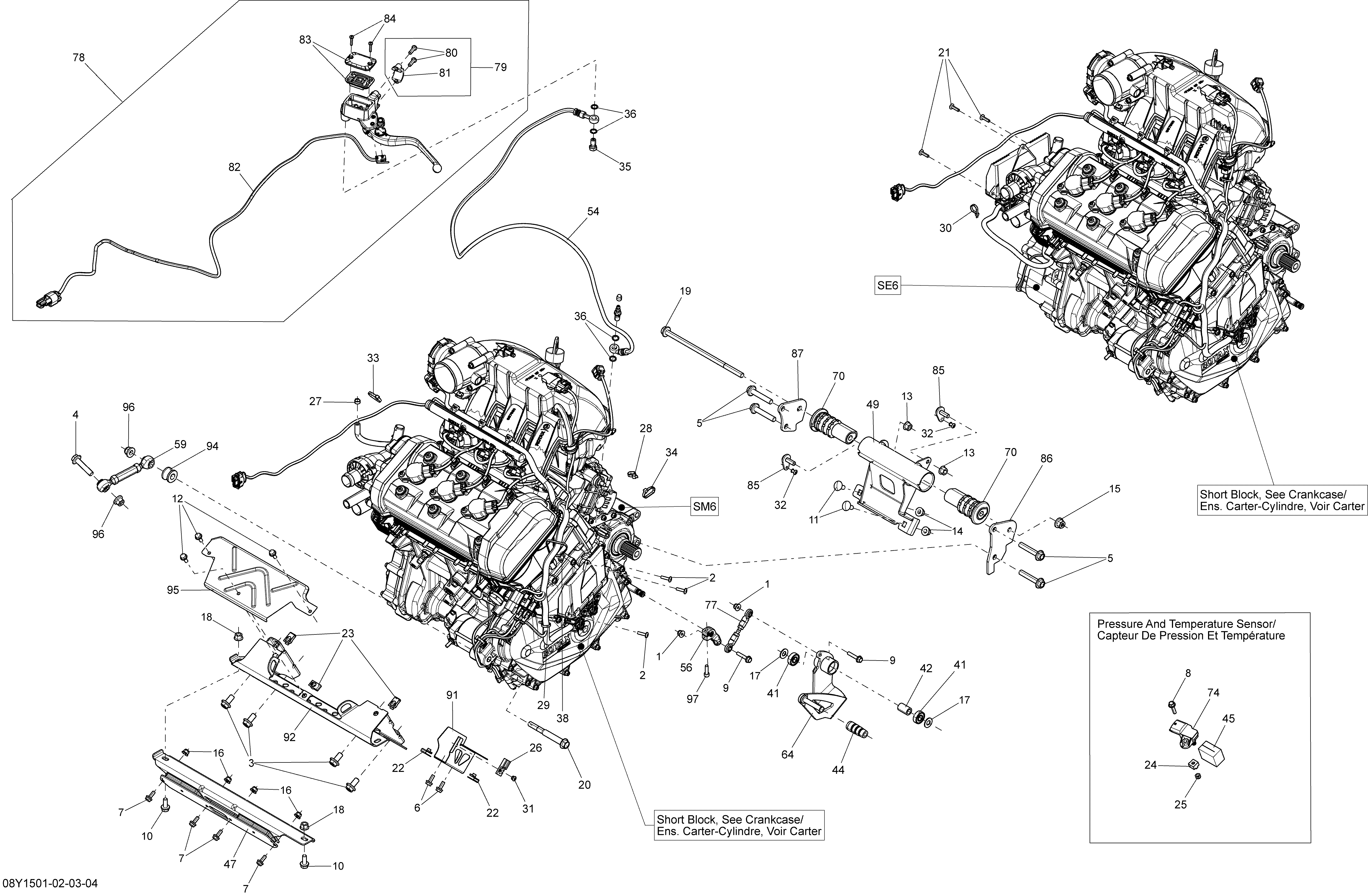

01- Engine SM6_08Y1501 для BRP Spyder RT SM6 - 2015

  • №
    Артикул
    Название
  • 1
    233261414 Hex. Flanged Elastic Nut M6
    Hex. Flanged Elastic Nut M6
  • 2
    250000724 Torx Screw M5 X 20
    Torx Screw M5 X 20
  • 3
    207502044 Flanged Hex Screw M10 X 20
    Flanged Hex Screw M10 X 20
  • 4
    207504546 Hex. Flanged Screw, M10 X 45 Scotch Grip
    Hex. Flanged Screw, M10 X 45 Scotch Grip
  • 5
    207505544 Hex. Flanged Screw M10 X 55, Scotch Grip
    Hex. Flanged Screw M10 X 55, Scotch Grip
  • 6
    207561644 Hex. Flanged Screw M6 X 16, Scotch Grip
    Hex. Flanged Screw M6 X 16, Scotch Grip
  • 7
    207661644 Hex. Flanged Screw M6 X 16
    Hex. Flanged Screw M6 X 16
  • 8
    207662584 Hex. Flanged Screw M6 X 25
    Hex. Flanged Screw M6 X 25
  • 9
    207663034 Hex. Flanged Screw M6 X 30
    Hex. Flanged Screw M6 X 30
  • 10
    207682046 Hex. Flanged Screw M8 X 20
    Hex. Flanged Screw M8 X 20
  • 11
    207782046 Carriage Bolt M8 X 20
    Carriage Bolt M8 X 20
  • 12
    207561644 Hex. Flanged Screw M6 X 16, Scotch Grip
    Hex. Flanged Screw M6 X 16, Scotch Grip
  • 13
    233081416 Hex. Flanged Nut M8
    Hex. Flanged Nut M8
  • 14
    233081416 Hex. Flanged Nut M8
    Hex. Flanged Nut M8
  • 15
    233201436 Flanged Elastic Nut M10
    Flanged Elastic Nut M10
  • 16
    233261414 Hex. Flanged Elastic Nut M6
    Hex. Flanged Elastic Nut M6
  • 17
    234001410 Flat Washer 10 mm
    Flat Washer 10 mm
  • 18
    233081416 Hex. Flanged Nut M8
    Hex. Flanged Nut M8
  • 19
    250000507 Flanged Hex Screw M10 X 220
    Flanged Hex Screw M10 X 220
  • 20
    230500046 Hex. Screw M10 X 100, Scotch Grip
    Hex. Screw M10 X 100, Scotch Grip
  • 22
    250100113 Panel Nut, M6 X 1.0
    Panel Nut, M6 X 1.0
  • 23
    250100113 Panel Nut, M6 X 1.0
    Panel Nut, M6 X 1.0
  • 24
    269500725 Nut Housing Ass'y. Includes 24 to 25
    Nut Housing Ass'y. Includes 24 to 25
  • 25
    232561600 Hex. Elastic Stop Nut M6
    Hex. Elastic Stop Nut M6
  • 26
    270000141 Clip
    Clip
  • 27
    293650044 Oetiker Clamp
    Oetiker Clamp
  • 28
    293750002 Tie-Rap 142 mm
    Tie-Rap 142 mm
  • 29
    293750008 Tie-Rap 350 mm
    Tie-Rap 350 mm
  • 31
    390402200 Pop Rivet 3/16''
    Pop Rivet 3/16''
  • 32
    390402300 Pop Rivet 3/16''
    Pop Rivet 3/16''
  • 33
    414115200 Tie-Rap 180 mm
    Tie-Rap 180 mm
  • 34
    414115200 Tie-Rap 180 mm
    Tie-Rap 180 mm
  • 35
    414920500 Banjo Bolt
    Banjo Bolt
  • 36
    414920600 Washer
    Washer
  • 38
    515175220 Tie Rap
    Tie Rap
  • 41
    705600458 Bearing
    Bearing
  • 42
    705600541 Bushing
    Bushing
  • 44
    707000456 End Clutch Pedal
    End Clutch Pedal
  • 45
    707000586 Filter
    Filter
  • 47
    707000876 Rubber Mount
    Rubber Mount
  • 49
    707000877 Frame Etension
    Frame Etension
  • 54
    707000879 Hose
    Hose
  • 56
    707000926 Shifter Arm
    Shifter Arm
  • 59
    707000959 Connecting Rod
    Connecting Rod
  • 64
    707000967 Crystal Silver Lever
    Crystal Silver Lever
  • 70
    707000973 Rubber Mount
    Rubber Mount
  • 74
    707000995 Pressure And Temperature Sensor
    Pressure And Temperature Sensor
  • 77
    707001103 Double Ball Joint
    Double Ball Joint
  • 78
    707000972 Master Cylinder Ass'y. Includes 78 to 84
    Master Cylinder Ass'y. Includes 78 to 84
  • 79
    719000049 Clamps Kit
    Clamps Kit
  • 80
    250000433 Torx Screw M6 X 20
    Torx Screw M6 X 20
  • 81
    219800081 Clamp
    Clamp
  • 82
    219800297 Microswitch
    Microswitch
  • 83
    219800096 Cap Set
    Cap Set
  • 84
    415129356 Screw M4 X 20
    Screw M4 X 20
  • 85
    707001292 Attach
    Attach
  • 86
    707001293 LH Engine Support
    LH Engine Support
  • 87
    707001294 RH Engine Support
    RH Engine Support
  • 91
    707001353 Connector Support
    Connector Support
  • 92
    707001561 Front Engine Support
    Front Engine Support
  • 94
    707001423 Spacer
    Spacer
  • 95
    707601057 Upper Heat Deflector
    Upper Heat Deflector
  • 96
    233201436 Flanged Elastic Nut M10
    Flanged Elastic Nut M10
  • 97
    514054626 Socket Head Screw M6 X 22, Scotch Grip
    Socket Head Screw M6 X 22, Scotch Grip
