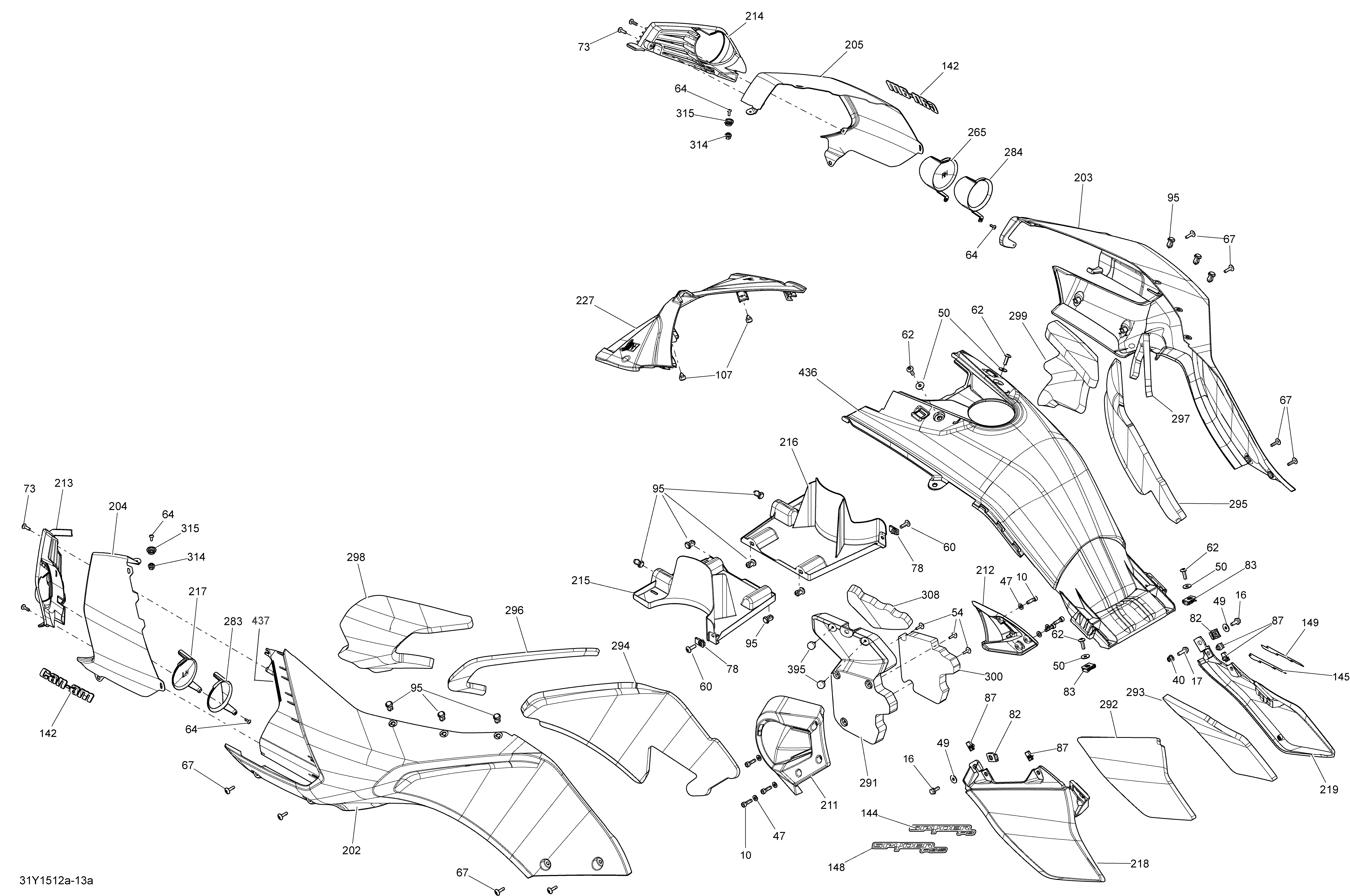

09- Body And Accessories Fairing_31Y1513a для BRP Spyder F3-S SM6 - 2015
-
№АртикулНазвание
-
10205562060 Socket Head Screw M6 X 20, Scotch GripSocket Head Screw M6 X 20, Scotch Grip
-
16207561644 Hex. Flanged Screw M6 X 16, Scotch GripHex. Flanged Screw M6 X 16, Scotch Grip
-
17207562044 Flanged Screw M6 X 20, Scotch GripFlanged Screw M6 X 20, Scotch Grip
-
40250100130 Elastic Flange Nut M6Elastic Flange Nut M6
-
47234061600 Flat Washer M6, StainlessFlat Washer M6, Stainless
-
49234062410 Flat Washer 6 mmFlat Washer 6 mm
-
50234062670 Flat Washer, StainlessFlat Washer, Stainless
-
54250000113 Screw M4 X 16, Type K-40Screw M4 X 16, Type K-40
-
60250000350 Torx Truss Screw M6 X 20Torx Truss Screw M6 X 20
-
62250000446 Torx Screw M6 X 20, Scotch GripTorx Screw M6 X 20, Scotch Grip
-
64250000577 Torx Truss K40 X 12Torx Truss K40 X 12
-
67250000586 Torx Truss M5 X 20Torx Truss M5 X 20
-
78250100113 Panel Nut, M6 X 1.0Panel Nut, M6 X 1.0
-
82250100169 Panel Nut M6 X 1Panel Nut M6 X 1
-
83250100169 Panel Nut M6 X 1Panel Nut M6 X 1
-
87250100176 Panel Nut M5 X 0.8Panel Nut M5 X 0.8
-
95293150089 Tuflok Plastic RivetTuflok Plastic Rivet
-
107293830005 Rubber BumperRubber Bumper
-
142704904675 Brillant Chrome CAN-AM LogoBrillant Chrome CAN-AM Logo
-
148704904821 Spyder F3S Decal Vegas WhiteSpyder F3S Decal Vegas White
-
149704904821 Spyder F3S Decal Vegas WhiteSpyder F3S Decal Vegas White
-
202705010348 LH Steel Black FairingLH Steel Black Fairing
-
202705010352 LH White Vegas FairingLH White Vegas Fairing
-
202705010354 LH Pur Magnesium FairingLH Pur Magnesium Fairing
-
202705010356 LH Red Dragon FairingLH Red Dragon Fairing
-
203705010349 RH Steel Black FairingRH Steel Black Fairing
-
203705010353 RH White Vegas FairingRH White Vegas Fairing
-
203705010355 RH Pur Magnesium FairingRH Pur Magnesium Fairing
-
203705010357 RH Red Dragon FairingRH Red Dragon Fairing
-
204705010342 LH Hyper Silver Air Duct. Model Vegas WhiteLH Hyper Silver Air Duct. Model Vegas White
-
204705010342 LH Hyper Silver Air Duct. Model Pure MagnesiumLH Hyper Silver Air Duct. Model Pure Magnesium
-
204705010342 LH Hyper Silver Air Duct. Model Dragon RedLH Hyper Silver Air Duct. Model Dragon Red
-
204705008244 LH Chrome Air Duct. Model Steel BlackLH Chrome Air Duct. Model Steel Black
-
205705010343 RH Hyper Silver Air Duct. Model Vegas WhiteRH Hyper Silver Air Duct. Model Vegas White
-
205705010343 RH Hyper Silver Air Duct. Model Pure MagnesiumRH Hyper Silver Air Duct. Model Pure Magnesium
-
205705010343 RH Hyper Silver Air Duct. Model Dragon RedRH Hyper Silver Air Duct. Model Dragon Red
-
205705008245 RH Chrome Air Duct. Model Steel BlackRH Chrome Air Duct. Model Steel Black
-
211705007780 LH Engine FairingLH Engine Fairing
-
212705007781 RH Engine FairingRH Engine Fairing
-
213705010137 LH Vent GridLH Vent Grid
-
214705010138 RH Vent GridRH Vent Grid
-
215705007785 LH Front Skid PlateLH Front Skid Plate
-
216705007786 RH Front Skid PlateRH Front Skid Plate
-
217705007787 LH Cap LigthLH Cap Ligth
-
218705008254 LH Steel Black Low FairingLH Steel Black Low Fairing
-
218705009242 LH White Vegas Low FairingLH White Vegas Low Fairing
-
218705009244 LH Pur Magnesium Low FairingLH Pur Magnesium Low Fairing
-
218705009265 LH Red Dragon Low FairingLH Red Dragon Low Fairing
-
219705008255 RH Steel Black Low FairingRH Steel Black Low Fairing
-
219705009245 RH White Vegas Low FairingRH White Vegas Low Fairing
-
219705009247 RH Pur Magnesium Low FairingRH Pur Magnesium Low Fairing
-
219705009266 RH Red Dragon Low FairingRH Red Dragon Low Fairing
-
227705008058 Service Center FairingService Center Fairing
-
265705008963 RH Cap LigthRH Cap Ligth
-
283705008995 LH Heat ShieldLH Heat Shield
-
284705008996 RH Heat ShieldRH Heat Shield
-
291705009144 LH Acoustic FairingLH Acoustic Fairing
-
292705009153 Acoustic FoamAcoustic Foam
-
293705009154 Acoustic FoamAcoustic Foam
-
294705009155 Acoustic FoamAcoustic Foam
-
295705009156 Acoustic FoamAcoustic Foam
-
296705009157 Acoustic FoamAcoustic Foam
-
297705009158 Acoustic FoamAcoustic Foam
-
298705009159 Acoustic FoamAcoustic Foam
-
299705009160 Acoustic FoamAcoustic Foam
-
300705009162 Acoustic FoamAcoustic Foam
-
308705009344 Acoustic FoamAcoustic Foam
-
314705009430 Anchor PinAnchor Pin
-
315705009431 Shouldered BushingShouldered Bushing
-
395708000759 Rubber StopperRubber Stopper
-
436705008246 Steel Black Fuel Tank CoverSteel Black Fuel Tank Cover
-
437293250143 SealSeal
