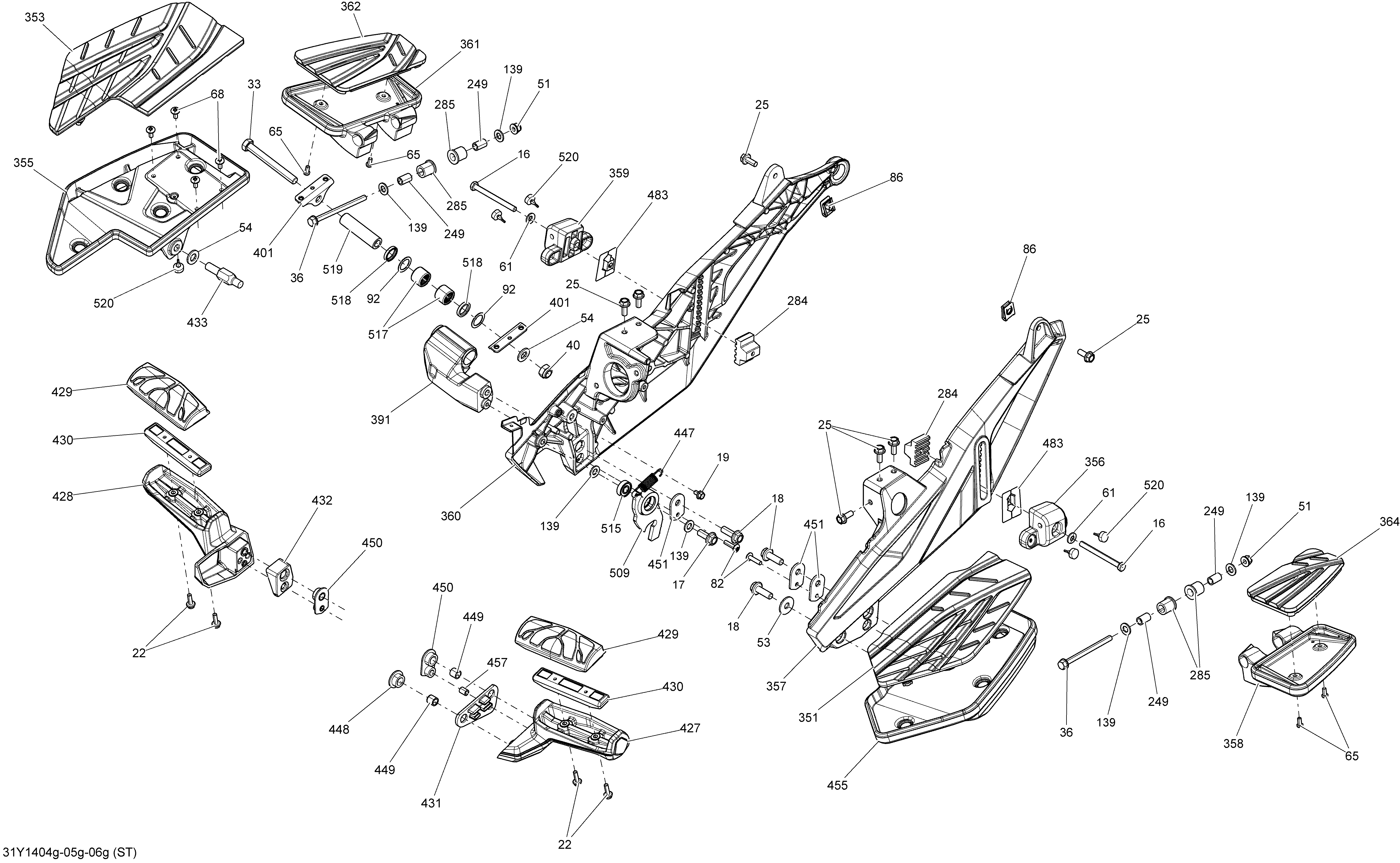

09- Body And Accessories Footrest_31Y1406g для BRP Spyder ST Limited SE5 - 2014
-
№АртикулНазвание
-
16207189060 Hex. Screw M8 x 90. Model-STHex. Screw M8 x 90. Model-ST
-
17207502546 Hex. Flanged Screw M10 X 25. Model-ST LTD SE5Hex. Flanged Screw M10 X 25. Model-ST LTD SE5
-
18207503046 Hex. Flanged Screw M10 X 30, Scotch Grip. Model-STHex. Flanged Screw M10 X 30, Scotch Grip. Model-ST
-
19207561044 Flanged Screw M6 X 10, Scotch Grip. Model-ST LTD SE5Flanged Screw M6 X 10, Scotch Grip. Model-ST LTD SE5
-
25207582044 Hex. Flanged Screw M8 X 20, Scotch Grip. Model-STHex. Flanged Screw M8 X 20, Scotch Grip. Model-ST
-
33230020586 Hexagonal Screw M12 X 105. Model-ST LTD SE5Hexagonal Screw M12 X 105. Model-ST LTD SE5
-
36230681034 Hex. Flanged Screw M8 X 110. Model-STHex. Flanged Screw M8 X 110. Model-ST
-
40232521416 Elastic Flanged Stop Nut M12. Model-ST LTD SE5Elastic Flanged Stop Nut M12. Model-ST LTD SE5
-
51233281434 Hex. Flanged Elastic Nut M8. Model-STHex. Flanged Elastic Nut M8. Model-ST
-
53234002600 Flat Washer 10 mm, Stainless. Model-STFlat Washer 10 mm, Stainless. Model-ST
-
54234021430 Flat Washer. Model-ST LTD SE5Flat Washer. Model-ST LTD SE5
-
61234281704 Spring Washer M8. Model-STSpring Washer M8. Model-ST
-
65250000099 Allen Plastite Screw #12. Model-STAllen Plastite Screw #12. Model-ST
-
68250000223 Torx Screw M6 X 16. Model-ST LTD SE5Torx Screw M6 X 16. Model-ST LTD SE5
-
82250000630 Torx Truss Screw M6 X 25Torx Truss Screw M6 X 25
-
86250100069 Panet Nut M8 X 1.25. Model-STPanet Nut M8 X 1.25. Model-ST
-
92250200136 Plastic Washer 20MM. Model-ST LTD SE5Plastic Washer 20MM. Model-ST LTD SE5
-
139503183800 Washer. Model-STWasher. Model-ST
-
249705002153 Bushing. Model-STBushing. Model-ST
-
284705003013 Adjuster Block. Model-STAdjuster Block. Model-ST
-
285705003018 Rubber Bushing. Model-STRubber Bushing. Model-ST
-
351705005329 LH Front Rubber Pad. Model-ST LTD SE5LH Front Rubber Pad. Model-ST LTD SE5
-
353705005333 RH Front Rubber Pad. Model-ST LTD SE5RH Front Rubber Pad. Model-ST LTD SE5
-
355705005334 RH Front Footrest Ass'y. Model-ST LTD SE5RH Front Footrest Ass'y. Model-ST LTD SE5
-
356705006799 Black LH Sliding Block. Model-ST LTDBlack LH Sliding Block. Model-ST LTD
-
357705006796 LH Rear Foot Support. Model-ST LTD SE5LH Rear Foot Support. Model-ST LTD SE5
-
358705006798 LH Rear Footrest. Model-ST LTD SE5LH Rear Footrest. Model-ST LTD SE5
-
359705006801 Black RH Sliding Block. Model-ST LTDBlack RH Sliding Block. Model-ST LTD
-
360705007976 Black RH Footrest Support. Model-ST LTD SE5Black RH Footrest Support. Model-ST LTD SE5
-
361705006800 Black RH Footrest Support. Model-ST LTD SE5Black RH Footrest Support. Model-ST LTD SE5
-
362705005350 RH Rear Rubber Pad. Model-STRH Rear Rubber Pad. Model-ST
-
364705005351 LH Rear Rubber Pad. Model-STLH Rear Rubber Pad. Model-ST
-
391705005723 Pivot Support. Model-ST LTD SE5Pivot Support. Model-ST LTD SE5
-
401705005861 Pivot Bracket. Model-ST LTD SE5Pivot Bracket. Model-ST LTD SE5
-
433705006428 Latch Pin M12 X 30. Model-ST LTD SE5Latch Pin M12 X 30. Model-ST LTD SE5
-
447705006533 Spring. Model-ST LTD SE5Spring. Model-ST LTD SE5
-
451705006557 Retaining Plate. Model-STRetaining Plate. Model-ST
-
455705005330 LH Front Footrest Ass'y. Model-ST LTD SE5LH Front Footrest Ass'y. Model-ST LTD SE5
-
483705007473 Lock Plate. Model-STLock Plate. Model-ST
-
509705008439 Latch Ass'y. Model-ST LTD SE5Latch Ass'y. Model-ST LTD SE5
-
515705600458 Bearing. Model-ST LTD SE5Bearing. Model-ST LTD SE5
-
517706000447 Bearing. Model-ST LTD SE5Bearing. Model-ST LTD SE5
-
518706000448 Seal. Model-ST LTD SE5Seal. Model-ST LTD SE5
-
519706000731 Bushing. Model-ST LTD SE5Bushing. Model-ST LTD SE5
-
520708000759 Rubber StopperRubber Stopper
