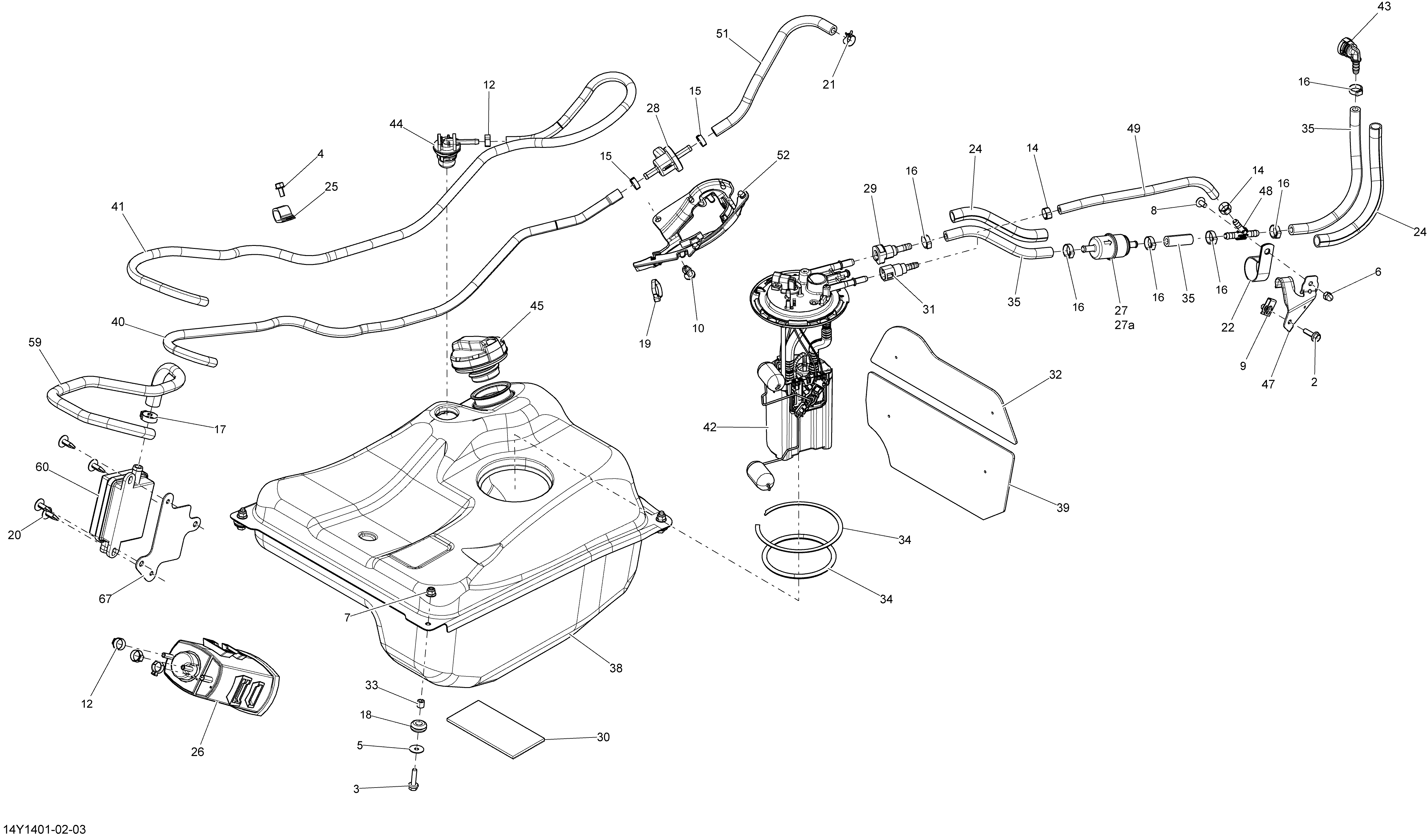

02- Fuel System _14Y1401 для BRP Spyder RT SE6 - 2014
-
№АртикулНазвание
-
2207662044 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
3207662544 Hex. Flanged Screw M6 X 25Hex. Flanged Screw M6 X 25
-
4210261280 Hex. Flanged Screw M6 X 12Hex. Flanged Screw M6 X 12
-
5224060201 Flat WasherFlat Washer
-
6232361493 Domed Nut M6Domed Nut M6
-
7233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
8250000325 Torx Truss Screw M6 X 12Torx Truss Screw M6 X 12
-
9250100113 Panel Nut, M6 X 1.0Panel Nut, M6 X 1.0
-
10293150089 Tuflok Plastic RivetTuflok Plastic Rivet
-
12293650025 Oetiker Gear ClampOetiker Gear Clamp
-
14293650046 Oetiker ClampOetiker Clamp
-
15293650047 Crimp ClampCrimp Clamp
-
16293650125 Oetiker ClampOetiker Clamp
-
17293650186 Oetiker ClampOetiker Clamp
-
18293720053 GrommetGrommet
-
19414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
20414745900 Tuflock Phillips Plastic ScrewTuflock Phillips Plastic Screw
-
21513033029 Universal Spring ClampUniversal Spring Clamp
-
22513033047 Open ClampOpen Clamp
-
23513033231 Protector Tube, 16 mmProtector Tube, 16 mm
-
24415080000 Tubing 16 mmTubing 16 mm
-
25709000057 Open ClampOpen Clamp
-
26709000090 Vapor CanisterVapor Canister
-
27219800056 Fuel Filter Ass'yFuel Filter Ass'y
-
27a709000100 Fuel FilterFuel Filter
-
28709000443 Bleed ValveBleed Valve
-
29709000125 Female Quick Fitting Ass'yFemale Quick Fitting Ass'y
-
30709000130 CarpetCarpet
-
31709000141 Quick FittingQuick Fitting
-
32709000157 Reflective SheetReflective Sheet
-
33709000162 BushingBushing
-
34219800248 Seal KitSeal Kit
-
35709000264 Fuel Line 7.9 mm, MeterFuel Line 7.9 mm, Meter
-
38219800299 Fuel TankFuel Tank
-
39709000340 Reflective SheetReflective Sheet
-
40709000355 Formed HoseFormed Hose
-
41709000357 Hose 6.35mmHose 6.35mm
-
42709000370 Fuel Pump ModuleFuel Pump Module
-
43293710105 Elbow Fitting 90°Elbow Fitting 90°
-
44709000413 ROPS (roll-over protection structure)ROPS (roll-over protection structure)
-
45709000558 Fuel CapFuel Cap
-
47709000452 Fuel Filter SupportFuel Filter Support
-
48709000453 Y FittingY Fitting
-
49709000445 Hose 6.4mm - 275mmHose 6.4mm - 275mm
-
51415129492 HoseHose
-
52709000469 Hose SupportHose Support
-
53709000265 Fuel Line 7.9 mm, MeterFuel Line 7.9 mm, Meter
-
59709000523 Formed HoseFormed Hose
-
60709000524 Air FilterAir Filter
-
67709000526 Filter SupportFilter Support
