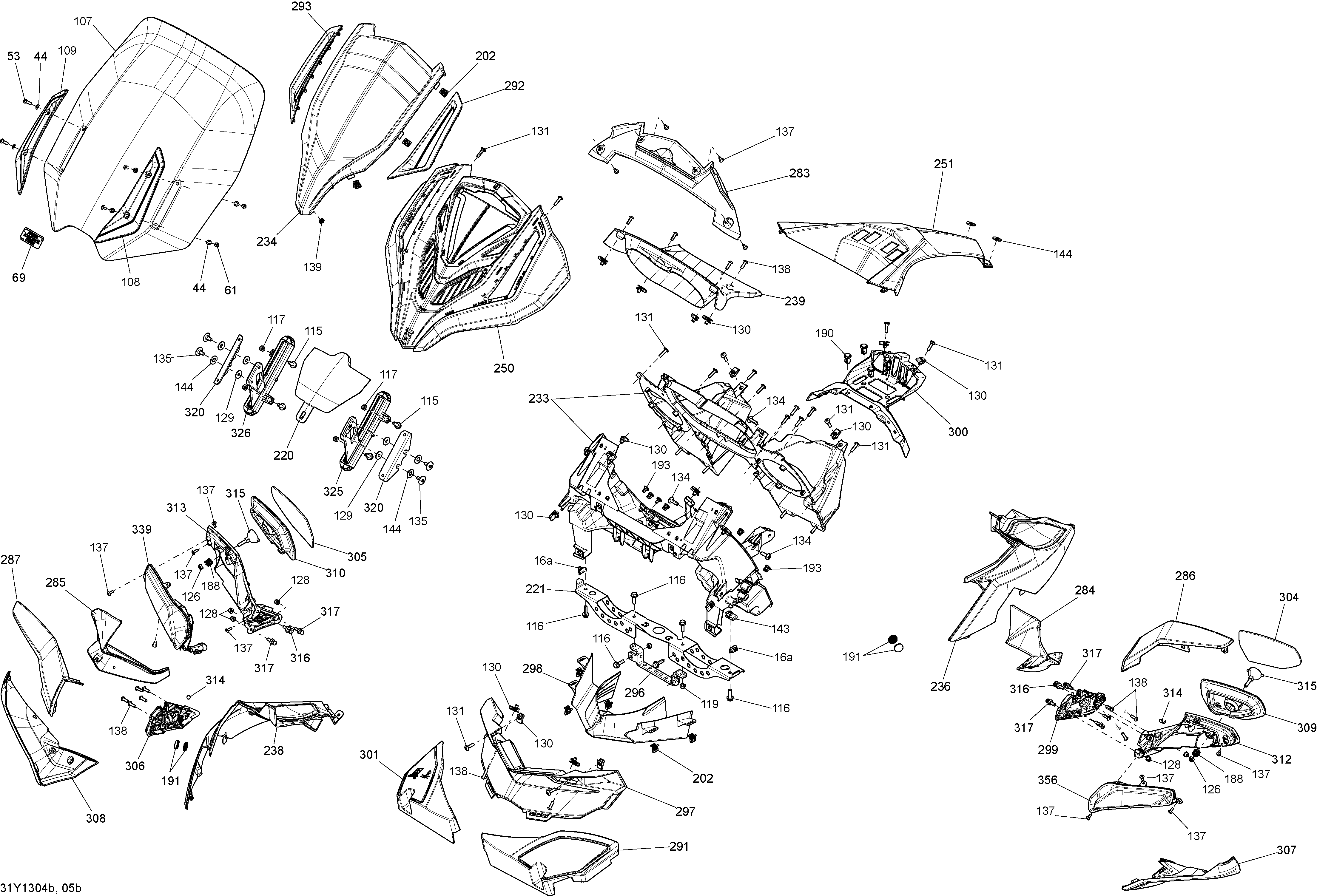

09- Body And Accessories B для BRP Spyder ST Limited SE5 - 2013

  • №
    Артикул
    Название
  • 16a
    705006474 Cap. TLTD
    Cap. TLTD
  • 44
    234051670 Flat Washer M5
    Flat Washer M5
  • 53
    250000652 Socket Screw M5 X 16
    Socket Screw M5 X 16
  • 61
    250100152 Cap Nut M5
    Cap Nut M5
  • 69
    704903339 Caution Decal, Windshield. TLTD
    Caution Decal, Windshield. TLTD
  • 107
    705004960 Windshield. TLTD
    Windshield. TLTD
  • 108
    705004961 LH Windshield Moulding. TLTD
    LH Windshield Moulding. TLTD
  • 109
    705004962 RH Windshield Moulding. TLTD
    RH Windshield Moulding. TLTD
  • 115
    207561644 Hex. Flanged Screw M6 X 16, Scotch Grip. TLTD
    Hex. Flanged Screw M6 X 16, Scotch Grip. TLTD
  • 116
    207562044 Flanged Screw M6 X 20, Scotch Grip. TLTD
    Flanged Screw M6 X 20, Scotch Grip. TLTD
  • 116
    207562044 Flanged Screw M6 X 20, Scotch Grip. TLTD
    Flanged Screw M6 X 20, Scotch Grip. TLTD
  • 117
    232061414 Hex. Nut M6. TLTD
    Hex. Nut M6. TLTD
  • 119
    232561414 Elastic Stop Nut M6. TLTD
    Elastic Stop Nut M6. TLTD
  • 126
    232561600 Hex. Elastic Stop Nut M6. TLTD
    Hex. Elastic Stop Nut M6. TLTD
  • 126
    232561600 Hex. Elastic Stop Nut M6. TLTD
    Hex. Elastic Stop Nut M6. TLTD
  • 128
    233251414 Hex. Flanged Elastic Nut M5. TLTD
    Hex. Flanged Elastic Nut M5. TLTD
  • 128
    233251414 Hex. Flanged Elastic Nut M5. TLTD
    Hex. Flanged Elastic Nut M5. TLTD
  • 129
    234062670 Flat Washer. TLTD
    Flat Washer. TLTD
  • 130
    250000079 Panel Nut M5 X 0.8. TLTD
    Panel Nut M5 X 0.8. TLTD
  • 130
    250000079 Panel Nut M5 X 0.8. TLTD
    Panel Nut M5 X 0.8. TLTD
  • 130
    250000079 Panel Nut M5 X 0.8. TLTD
    Panel Nut M5 X 0.8. TLTD
  • 130
    250000079 Panel Nut M5 X 0.8. TLTD
    Panel Nut M5 X 0.8. TLTD
  • 130
    250000079 Panel Nut M5 X 0.8. TLTD
    Panel Nut M5 X 0.8. TLTD
  • 130
    250000079 Panel Nut M5 X 0.8. TLTD
    Panel Nut M5 X 0.8. TLTD
  • 131
    250000130 Torx Screw M5 X 20. TLTD
    Torx Screw M5 X 20. TLTD
  • 131
    250000130 Torx Screw M5 X 20. TLTD
    Torx Screw M5 X 20. TLTD
  • 131
    250000130 Torx Screw M5 X 20. TLTD
    Torx Screw M5 X 20. TLTD
  • 131
    250000130 Torx Screw M5 X 20. TLTD
    Torx Screw M5 X 20. TLTD
  • 134
    250000488 Torx Truss Screw M6 X 20
    Torx Truss Screw M6 X 20
  • 135
    250000551 Torx Screw M6 X 13.5. TLTD
    Torx Screw M6 X 13.5. TLTD
  • 137
    250000577 Torx Screw K40 X 12. TLTD
    Torx Screw K40 X 12. TLTD
  • 137
    250000577 Torx Screw K40 X 12. TLTD
    Torx Screw K40 X 12. TLTD
  • 137
    250000577 Torx Screw K40 X 12. TLTD
    Torx Screw K40 X 12. TLTD
  • 137
    250000577 Torx Screw K40 X 12. TLTD
    Torx Screw K40 X 12. TLTD
  • 138
    250000652 Socket Screw M5 X 16. TLTD
    Socket Screw M5 X 16. TLTD
  • 138
    250000652 Socket Screw M5 X 16. TLTD
    Socket Screw M5 X 16. TLTD
  • 138
    250000652 Socket Screw M5 X 16. TLTD
    Socket Screw M5 X 16. TLTD
  • 138
    250000652 Socket Screw M5 X 16. TLTD
    Socket Screw M5 X 16. TLTD
  • 139
    250100034 Push Nut. TLTD
    Push Nut. TLTD
  • 143
    250100113 Panel Nut, M6 X 1.0. TLTD
    Panel Nut, M6 X 1.0. TLTD
  • 144
    250200133 Rubber Washer. TLTD
    Rubber Washer. TLTD
  • 144
    250200133 Rubber Washer. TLTD
    Rubber Washer. TLTD
  • 188
    269500453 Mirror Spring. TLTD
    Mirror Spring. TLTD
  • 188
    269500453 Mirror Spring. TLTD
    Mirror Spring. TLTD
  • 190
    293150089 Tuflok Plastic Rivet. TLTD
    Tuflok Plastic Rivet. TLTD
  • 191
    293740028 Dual Lock Washer 3/4''
    Dual Lock Washer 3/4''
  • 193
    293750044 Tie Rap Mount
    Tie Rap Mount
  • 202
    517302785 Clip. TLTD
    Clip. TLTD
  • 202
    517302785 Clip. TLTD
    Clip. TLTD
  • 220
    705003472 Guide Chart
    Guide Chart
  • 221
    705004950 Cross Support Console. TLTD
    Cross Support Console. TLTD
  • 233
    705006016 Console Support Ass'y. TLTD
    Console Support Ass'y. TLTD
  • 234
    705004954 Upper Console. TLTD
    Upper Console. TLTD
  • 236
    705004955 LH Dash Board Ass'y. TLTD
    LH Dash Board Ass'y. TLTD
  • 238
    705005810 RH Dash Board Ass'y. TLTD
    RH Dash Board Ass'y. TLTD
  • 239
    705004965 Dash Board Moulding. TLTD
    Dash Board Moulding. TLTD
  • 250
    705006842 Front Console Carbon Black Met.. TLTD
    Front Console Carbon Black Met.. TLTD
  • 251
    705004971 Center Pannel. TLTD
    Center Pannel. TLTD
  • 283
    705005320 Upper Console Moulding. TLTD
    Upper Console Moulding. TLTD
  • 284
    705005323 LH Upper Air Deflector. TLTD
    LH Upper Air Deflector. TLTD
  • 285
    705005324 RH Upper Air Deflector. TLTD
    RH Upper Air Deflector. TLTD
  • 286
    705006914 LH Mirror Cap, Black Carbon. TLTD
    LH Mirror Cap, Black Carbon. TLTD
  • 287
    705006915 RH Mirror Cap, Black Carbon. TLTD
    RH Mirror Cap, Black Carbon. TLTD
  • 291
    705005394 LH Service Center. TLTD
    LH Service Center. TLTD
  • 292
    705005411 LH Slider Protector. TLTD
    LH Slider Protector. TLTD
  • 293
    705005412 RH Slider Protector. TLTD
    RH Slider Protector. TLTD
  • 296
    705005476 Console Support Bracket. TLTD
    Console Support Bracket. TLTD
  • 297
    705005582 Headlamp Moulding. TLTD
    Headlamp Moulding. TLTD
  • 298
    705005586 Center Air Intake. TLTD
    Center Air Intake. TLTD
  • 299
    705006778 LH Support Plate Ass'y. TLTD
    LH Support Plate Ass'y. TLTD
  • 300
    705005739 Lateral Console Support. TLTD
    Lateral Console Support. TLTD
  • 301
    705005774 RH Service Center. TLTD
    RH Service Center. TLTD
  • 306
    705006779 RH Support Plate Ass'y. TLTD
    RH Support Plate Ass'y. TLTD
  • 307
    705006479 Black Deep LH Lower Shell. TLTD
    Black Deep LH Lower Shell. TLTD
  • 308
    705006480 Black Deep RH Lower Shell. TLTD
    Black Deep RH Lower Shell. TLTD
  • 314
    705006633 Stopper. TLTD
    Stopper. TLTD
  • 316
    705006733 Flat Head Stud M5. TLTD
    Flat Head Stud M5. TLTD
  • 316
    705006733 Flat Head Stud M5. TLTD
    Flat Head Stud M5. TLTD
  • 317
    705006734 Round Head Stud M5. TLTD
    Round Head Stud M5. TLTD
  • 317
    705006734 Round Head Stud M5. TLTD
    Round Head Stud M5. TLTD
  • 319
    705006795 Ball Mirror. TLTD
    Ball Mirror. TLTD
  • 319
    705006795 Ball Mirror. TLTD
    Ball Mirror. TLTD
  • 320
    705004982 Windshield Support. TLTD
    Windshield Support. TLTD
  • 325
    705005460 LH Rail Ass'y. TLTD
    LH Rail Ass'y. TLTD
  • 326
    705005461 RH Rail Ass'y. TLTD
    RH Rail Ass'y. TLTD
  • 339
    710002623 RH Front Flasher. TLTD
    RH Front Flasher. TLTD
  • 356
    710002624 LH Front Flasher. TLTD
    LH Front Flasher. TLTD
