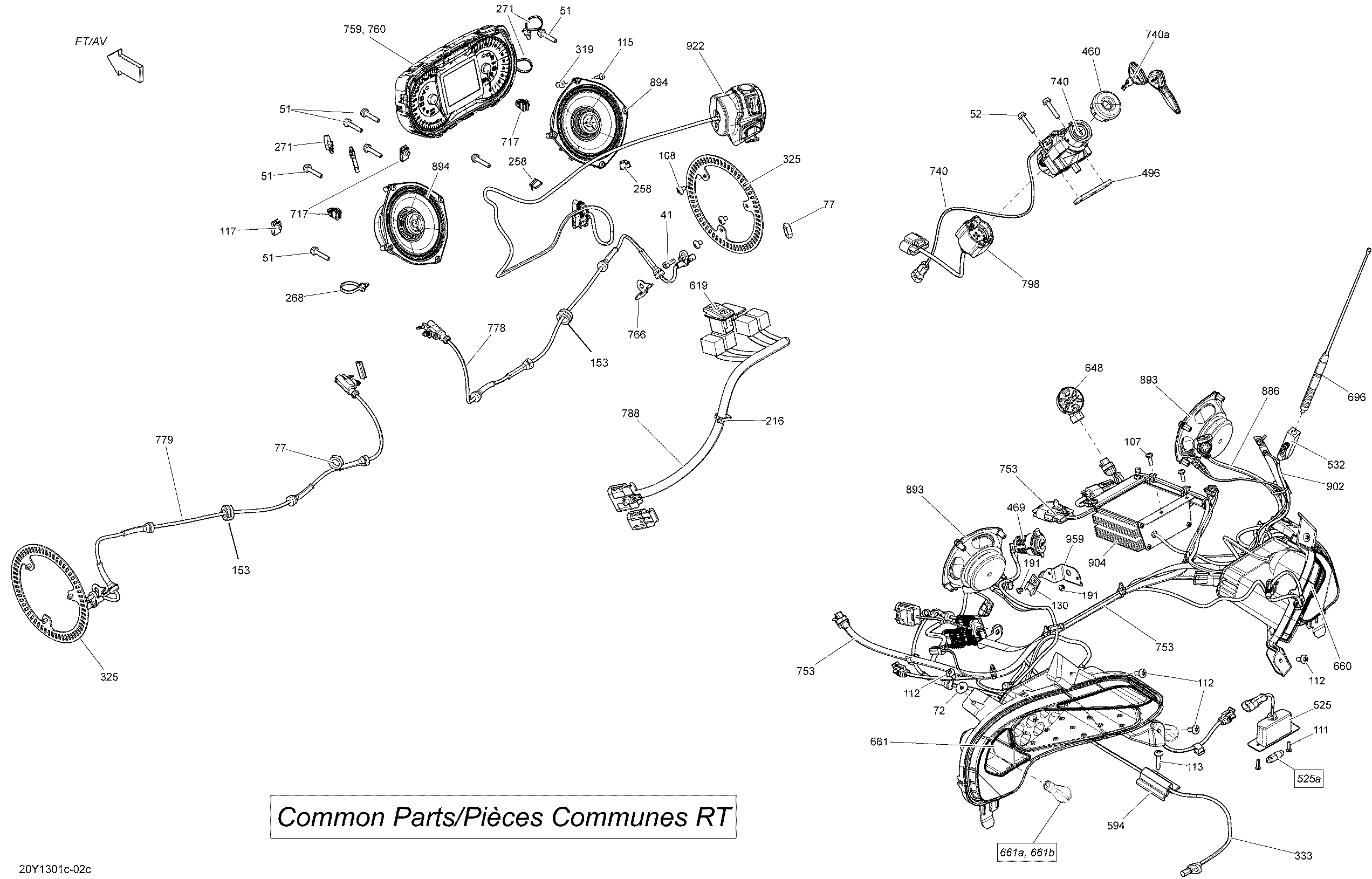

10- Electrical System Common Parts для BRP Spyder RT Limited SE5 - 2013

  • №
    Артикул
    Название
  • 41
    205561660 Socket Head Screw M6 X 16, Scotch Grip
    Socket Head Screw M6 X 16, Scotch Grip
  • 51
    207563034 Hex. Flanged Screw M6 X 30, Scotch Grip
    Hex. Flanged Screw M6 X 30, Scotch Grip
  • 52
    207563044 Hex. Flanged Screw M6 X 30, Scotch Grip
    Hex. Flanged Screw M6 X 30, Scotch Grip
  • 72
    224060201 Flat Washer
    Flat Washer
  • 77
    232170411 Hex. Jam Nut M14
    Hex. Jam Nut M14
  • 107
    250000146 Truss Head Torx Screw K50 X 16
    Truss Head Torx Screw K50 X 16
  • 108
    250000210 Torx Truss Screw M6 X 10
    Torx Truss Screw M6 X 10
  • 111
    250000287 Flanged Torx Screw K40 X 16
    Flanged Torx Screw K40 X 16
  • 112
    250000348 Torx Truss Screw M6 X 16
    Torx Truss Screw M6 X 16
  • 113
    250000371 Torx Screw M6 X 30 Stainless
    Torx Screw M6 X 30 Stainless
  • 115
    250000405 Torx Screw M4 X 20
    Torx Screw M4 X 20
  • 117
    250100113 Panel Nut, M6 X 1.0
    Panel Nut, M6 X 1.0
  • 130
    270000141 Clip
    Clip
  • 153
    293720095 Grommet
    Grommet
  • 191
    390402400 Pop Rivet 3/16''
    Pop Rivet 3/16''
  • 216
    414115200 Tie-Rap 180 mm
    Tie-Rap 180 mm
  • 258
    414227300 Clip
    Clip
  • 268
    515175220 Tie Rap
    Tie Rap
  • 271
    515175220 Tie Rap
    Tie Rap
  • 319
    705003635 Well Rubber Nut M4 X 0.7
    Well Rubber Nut M4 X 0.7
  • 325
    705601191 Front Tone Wheel
    Front Tone Wheel
  • 333
    706200560 Speed Sensor
    Speed Sensor
  • 460
    710001194 Switch Cover
    Switch Cover
  • 469
    710001248 Outlet DC
    Outlet DC
  • 496
    710001365 Switch Support
    Switch Support
  • 525
    710001451 License Light
    License Light
  • 532
    710001532 Antenna Support
    Antenna Support
  • 594
    710002145 Hose Support
    Hose Support
  • 619
    710002354 Switch, Heat Grip
    Switch, Heat Grip
  • 648
    710002464 RH Housing Passenger Switch
    RH Housing Passenger Switch
  • 660
    710002501 RH Rear Tail Light
    RH Rear Tail Light
  • 661
    710002502 LH Rear Tail Light
    LH Rear Tail Light
  • 696
    710002740 Antenna
    Antenna
  • 717
    710002896 Tie-Rap Clip
    Tie-Rap Clip
  • 740
    710002968 Ignition Module Switch
    Ignition Module Switch
  • 753
    710003024 Cargo Harness
    Cargo Harness
  • 759
    710003446 Speed Indicator Programming. Includes 759 a 760
    Speed Indicator Programming. Includes 759 a 760
  • 760
    415129349 Lens
    Lens
  • 766
    710003090 Speed Sensor Holder
    Speed Sensor Holder
  • 778
    710003091 Speed Sensor
    Speed Sensor
  • 779
    710003091 Speed Sensor
    Speed Sensor
  • 788
    710003110 Switch Harness
    Switch Harness
  • 798
    710003112 Kic Pentalock Harness
    Kic Pentalock Harness
  • 886
    710003218 Connector Harness, DIN
    Connector Harness, DIN
  • 893
    710003232 Rear Speaker
    Rear Speaker
  • 894
    710003233 Front Speaker
    Front Speaker
  • 902
    710003249 Antenna Cable Ass'y
    Antenna Cable Ass'y
  • 904
    710003552 Radio Module Ass'y
    Radio Module Ass'y
  • 922
    710003574 RH Housing Switch
    RH Housing Switch
  • 959
    710003487 PRS Bracket
    PRS Bracket
  • 525a
    219800128 Bulb
    Bulb
  • 661a
    520000758 Bulb
    Bulb
  • 661b
    219800122 Flasher Bulb
    Flasher Bulb
  • 740a
    710002969 Key. Contain One Key Only
    Key. Contain One Key Only
